Removing the LCD Bezel

1. See “Removing the LCD Module” on page 70. 2. Remove the six screws securing the bezel to the LCD Module.

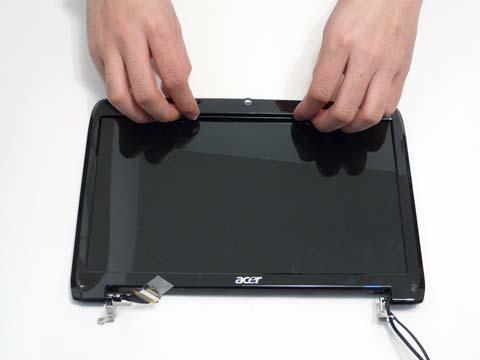

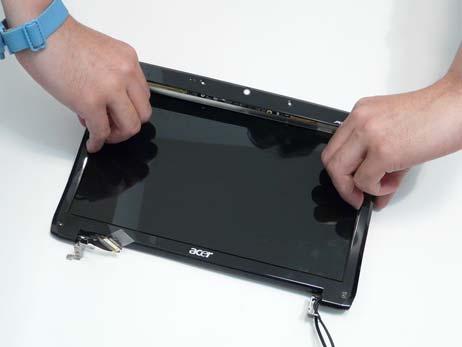

3. Starting from the inside top edge, pry the bezel away from the panel. Continue moving along the top, prying the bezel away from the LCD Module. If necessary, use a plastic pry to release the corners of the bezel.

Step

Size

LCD Bezel M2*5 6

Quantity Screw Type

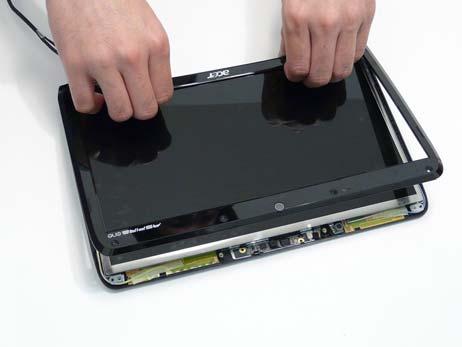

5. Lift up the bezel and remove it from the LCD Module.
