Removing the Mainboard

1. See “Removing the LED Board” on page 75. 2. Remove the single screw in the lower-left corner securing the Mainboard to the Lower Cover.

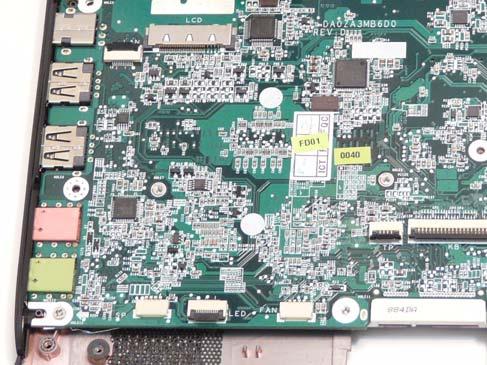

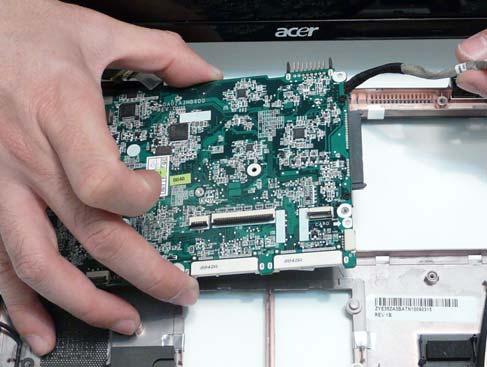

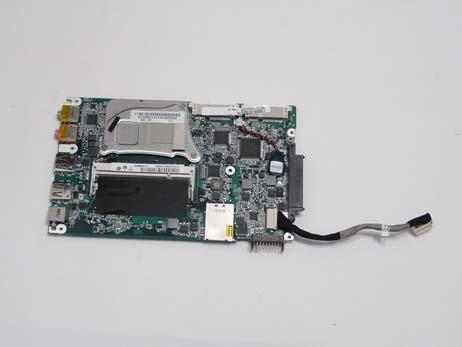

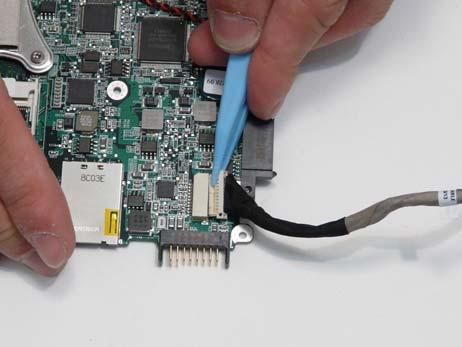

3. Lift the Mainboard right side first to release the I/O ports and remove the board from the Lower Cover.

Step

Size

Mainboard M2*5 1

Quantity Screw Type
