Removing the LED Board

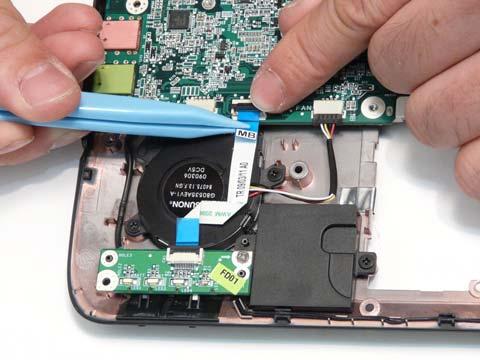

1. See “Removing the Upper Cover” on page 58. 2. Open the locking latch and disconnect the LED Board FFC from the Mainboard.

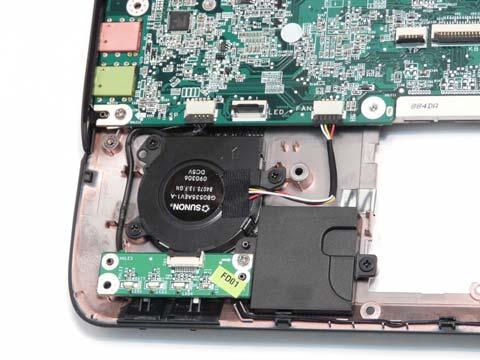

3. Open the locking latch and disconnect the FFC from the LED Board.

Step

Size

LED Board M2*5 1

Quantity Screw Type

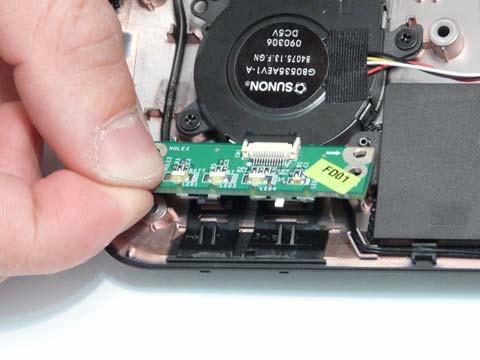

5. Lift the LED Board from the Lower Cover.
