Removing the LCD Module

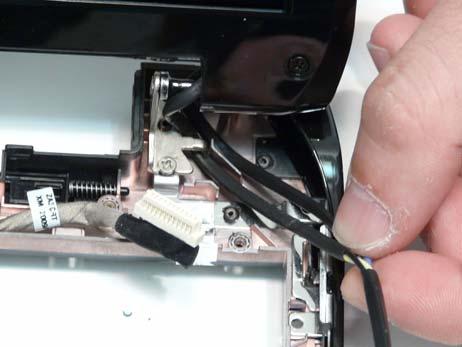

1. See “Removing the CRT Board” on page 66.

NOTE: It is not necessary to remove the LAN Board before removing the LCD Module. 2. Lift the adhesive strip securing the LVDS cable in place and disconnect the cable from the Mainboard.

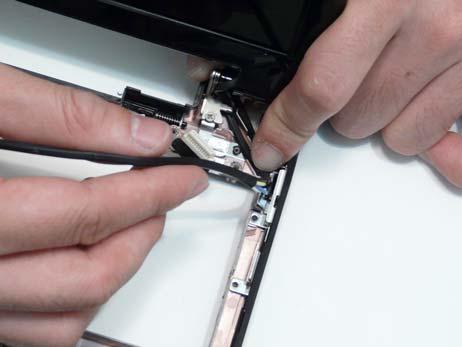

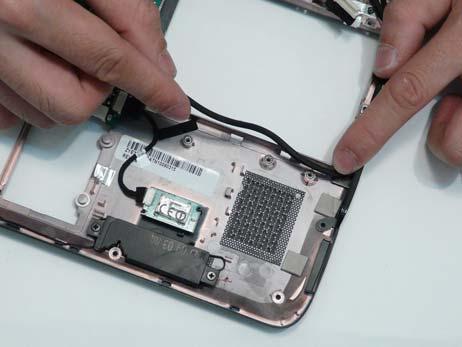

3. Remove the Antenna cables from the cable channel on the Lower Cover as shown, all the way to the hinge well.

Step

Size

LCD Module M2*3 2

Quantity Screw Type

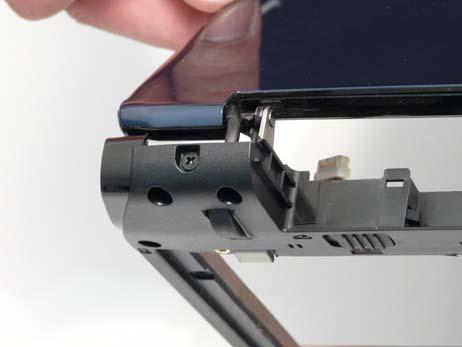

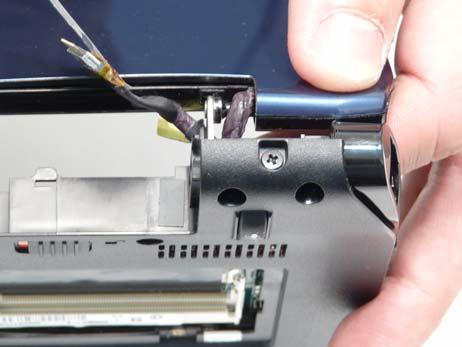

5. Remove the three screws (two on the left hinge and one on the right) securing the LCD Module to the Lower

Cover.

Step

Size

LCD Module M2*5 3

Quantity Screw Type

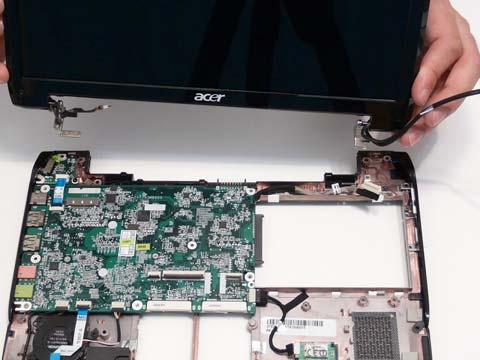

IMPORTANT: Ensure that the LCD cables are free from all cable clips before removing the LCD Module. 6. Using both hands, lift the LCD Module away from the Lower Cover.
