Removing the Hard Disk Drive Module

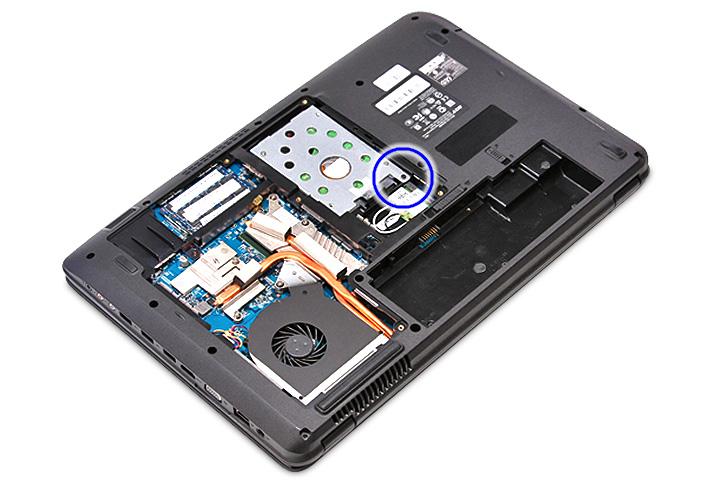

1. See “Removing the SD Dummy Card” on page 44. 2. See “Removing the Battery Pack” on page 45. 3. See “Removing the Back Cover” on page 46. 4. Remove the one screw (A) securing the hard disk drive module to the system.

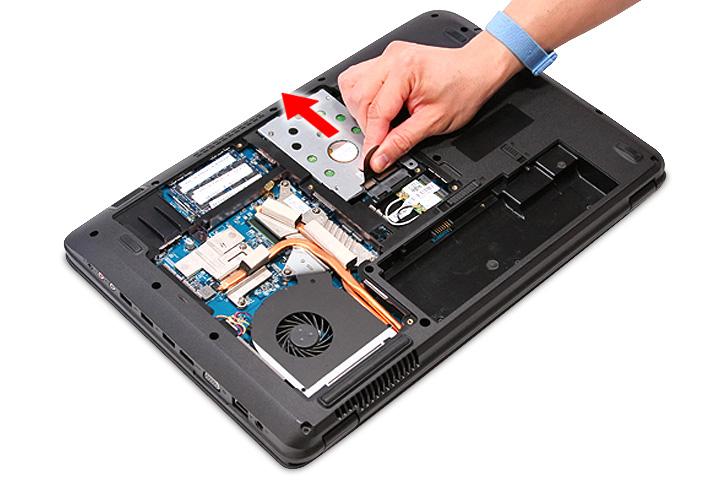

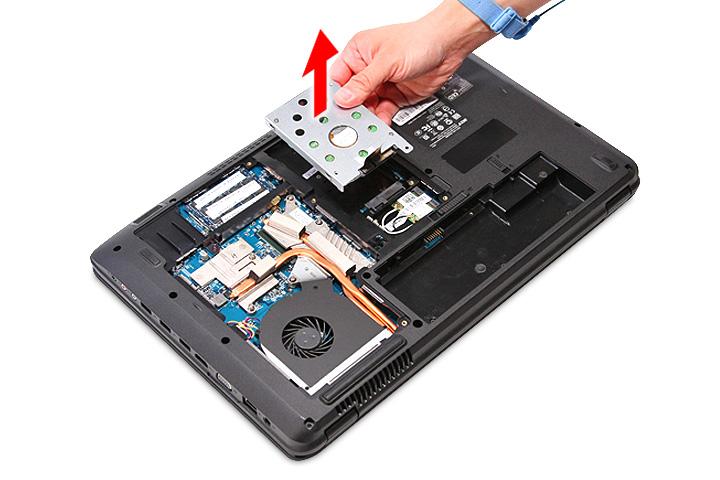

5. Pull the plastic tab in the direction indicated by the arrow to disengage the HDD module from the connector.

Size (Quantity) Color Torque Part No.

M2.5 x L4 (1) Black 3.0 kgf-cm 86.00H59.734

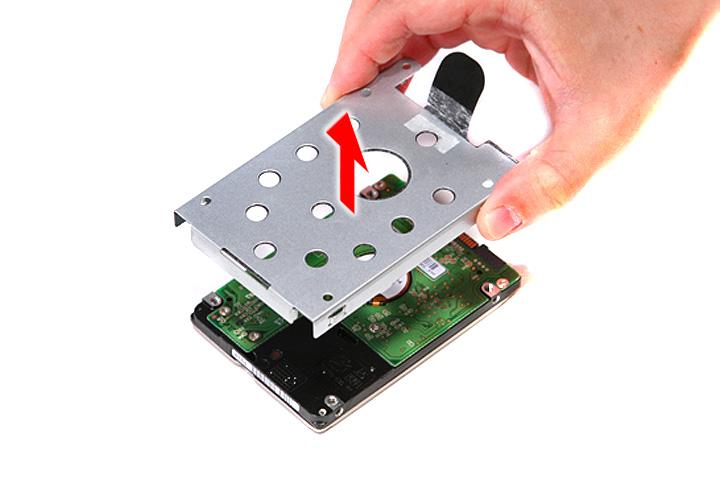

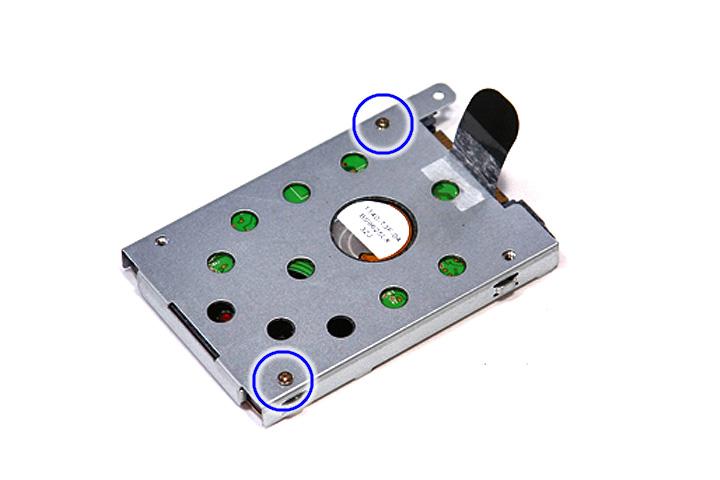

NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it. 7. Remove the two screws (F) securing the hard disk to the bracket and remove the hard disk from the bracket.

Size (Quantity) Color Torque Part No.

M3 x L4 (2) Silver 3.0 kgf-cm 86.9A554.4R0
