Jumper and Connector Locations
Top View
Aspire6935 M/B layout and connector location TOP view
No. Name
Description
1 CN1 LED/B Cable CNTR 2 CN2 LCM Cable CNTR 3 CN3 Key board FFC CNTR 4 CN4 USB board CNTR 5 CN7 Hot Key Board CNTR 6 U8 South Bridge 7 CN12 Touch Pad FFC CNTR 8 CN14 I/O Board CNTR 9 CN15 BT Cable CNTR 10 CN13 Express card CNTR 11 CN10 Speaker Cable CNTR 12 CN9 Media consle Board CNTR 13 CN8 Power Board FFC CNTR

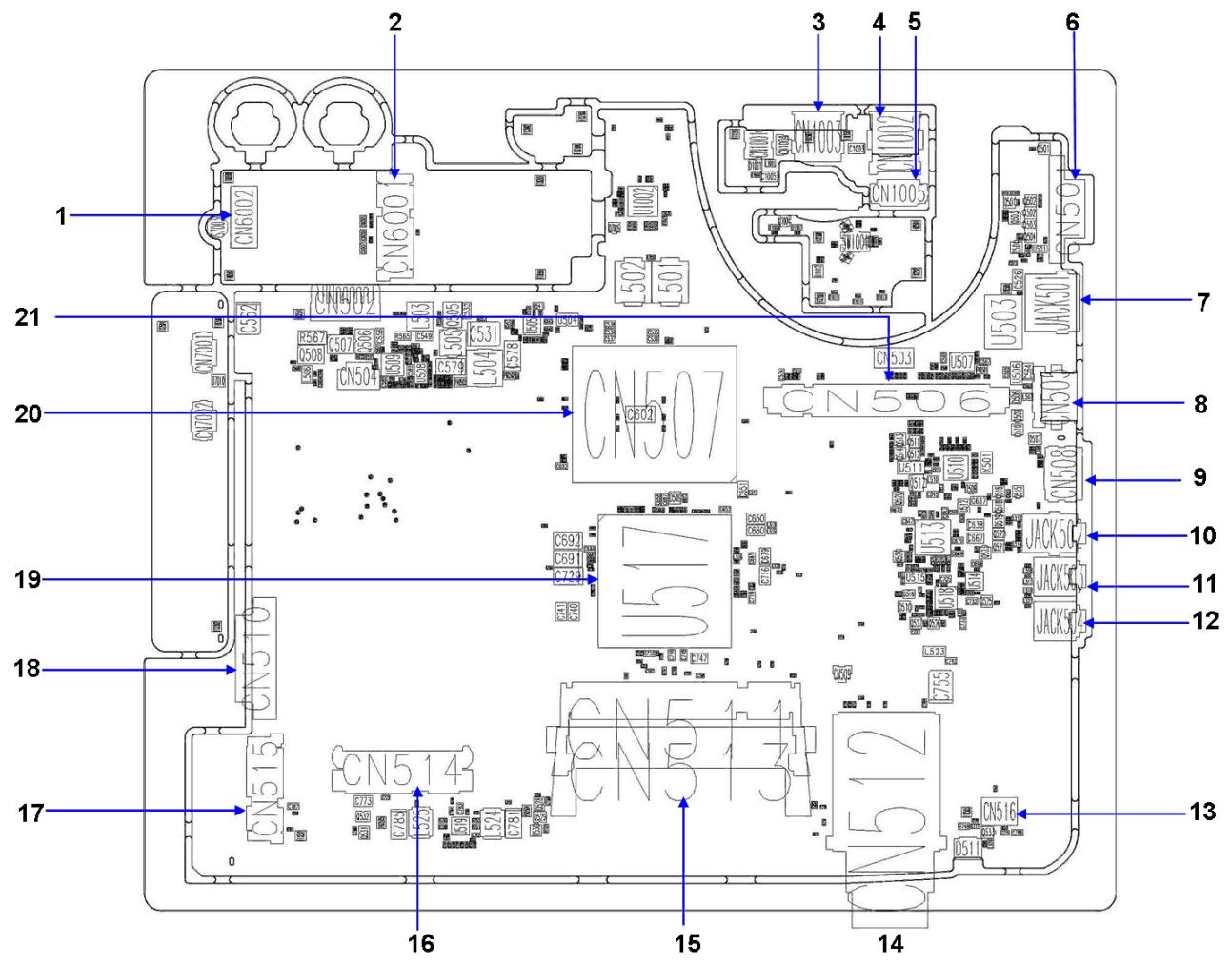

Bottom view
No. Name
Description
1 CN6002 W/LAN card board CNTR 2 CN6001 TV/Robson card CNTR 3 CN1003 USB Port 4 CN1002 USB Port 5 CN1005 USB Board CNTR 6 CN501 VGA Port 7 Jack501 RJ45 8 CN505 USB Port 9 CN508 HDMI Port 10 Jack502 SPDIF 11 Jack503 MIC jack 12 Jack504 Line in jack 13 CN516 MDC Card CNTR 14 CN512 New card Socket 15 CN511/513 DIMM Socket 16 CN514 HDD CNTR 17 CN515 PCI-E Socket 18 CN510 ODD CNTR 19 U517 North Bridge 20 CN507 CPU Socket 21 CN506 VGA Card Socket
