Removing the eKey Board

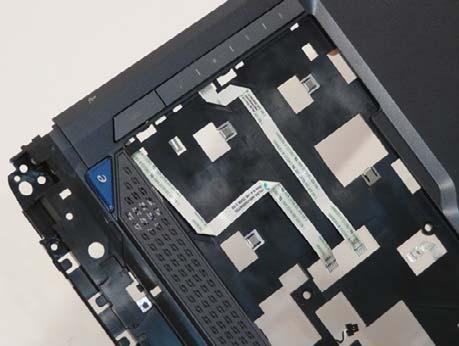

1. See “Removing the Upper Right Saddle” on page 75. 2. Turn the Upper Cover over and remove the FFC.

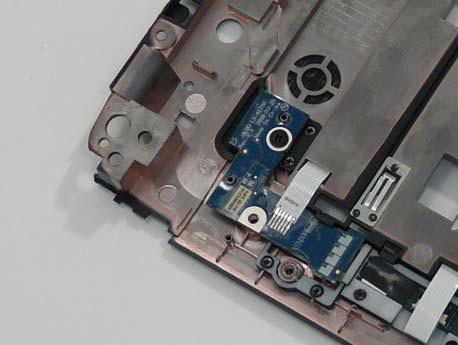

3. Remove the single screw

Step

Size

eKey Board M2*3 (NL) 1

Quantity Screw Type

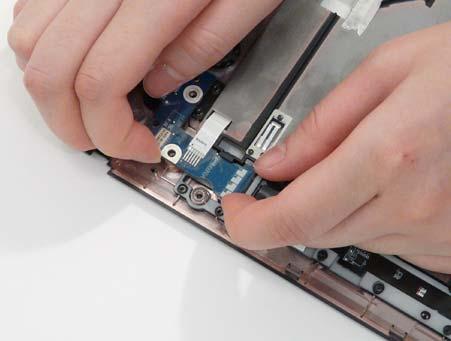

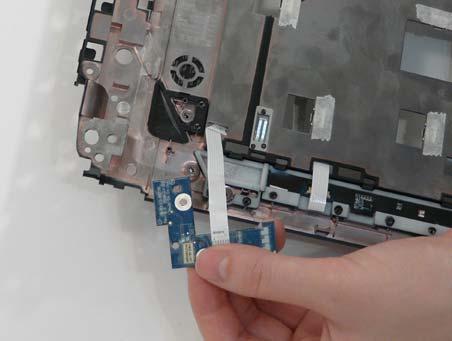

5. Grasp the board and gently pull the FFC through the Upper Cover.
