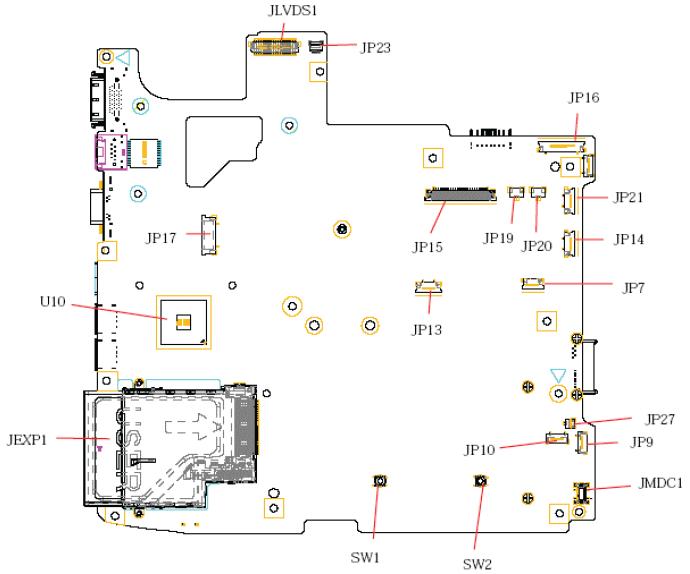

Top View

Jumper and Connector Locations

Top View

Item Description Item Description

JLVDS1 LCD Connector JP13 FP/B Connector JP23 Acer backlight Connector JP27 Sub-Woofer Connector JP16 Power/B Connector JP9 USB/B Connector JP8 TV/B Connector JP10 Bluetooth Connector JP21 Fun/B Connector JMDC1 MDC Connector JP14 Media/B Connector JEXP1 Express Card Socket JP19 Speaker (Left) Connector JP17 BTN/B Connector JP20 Speaker (Right) Connector SW1 Touch pad (right) Button JP15 Internal Keyboard Connector SW2 Touch pad (left) Button JP7 Touch Pad Connector U10 South Bridge
