Removing the Left Speaker Module

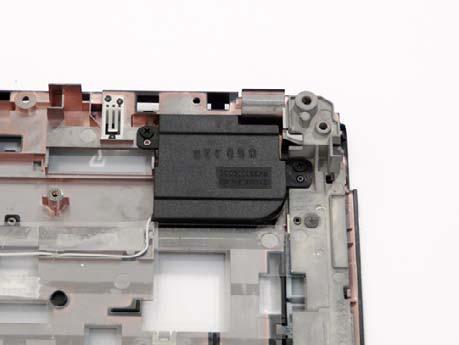

1. See “Removing the Upper Cover” on page 70. 2. Remove the two securing screws from the left speaker.

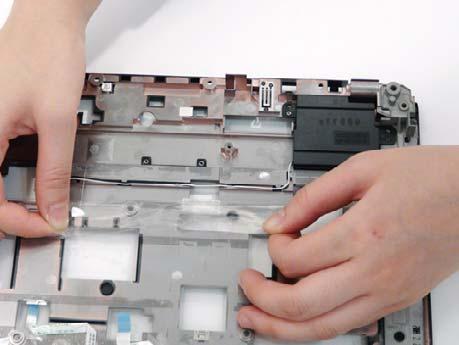

3. Grasp both ends of the mylar cover and carefully pull back to expose the speaker cable.

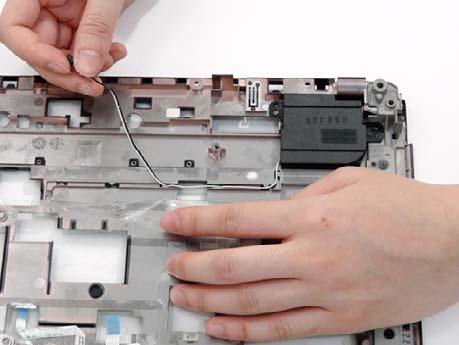

4. While holding the cover with one hand, pull back the speaker cable to remove it from the housing well.

Step

Left Speaker Module

Size

M2.5*4 (NL) 2

Quantity Screw Type
