Removing the Optical Drive Module

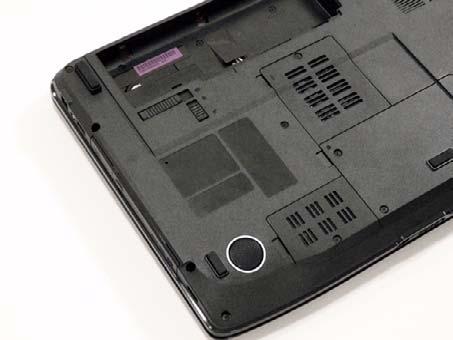

1. Remove the Battery Pack. See “Removing the Battery Pack” on page 48. 2. Remove the Memory cover. See “Removing the Lower Covers” on page 51. 3. Remove the screw securing the ODD module.

4. Grasp the front panel of the ODD and pull to remove from the main unit.

Step

Size

ODD Module M2.5*5(NL) 1

Quantity Screw Type

Step

Size

ODD Bracket M2*3 (NL) 3

Quantity Screw Type

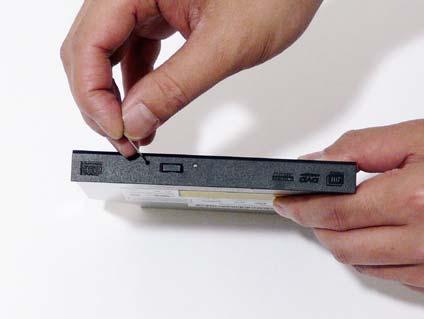

6. Insert a pin in the eject hole of the ODD to eject the ODD tray.

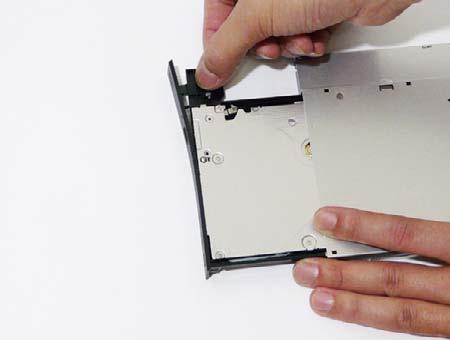

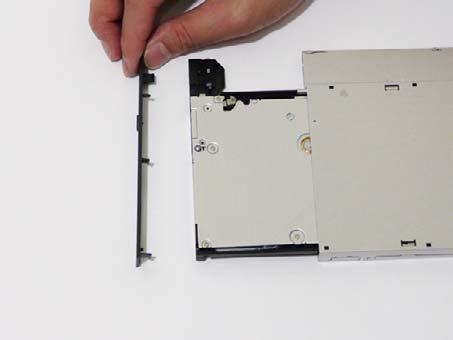

7. Press down on the locking catch to release the ODD cover and remove.
