Replacing the LCD Panel

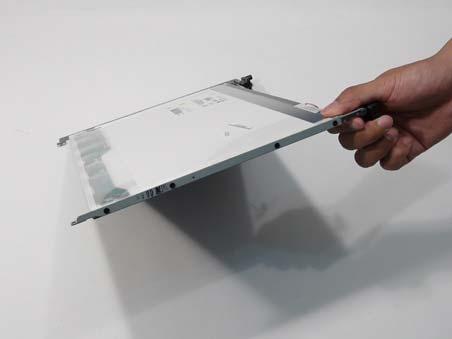

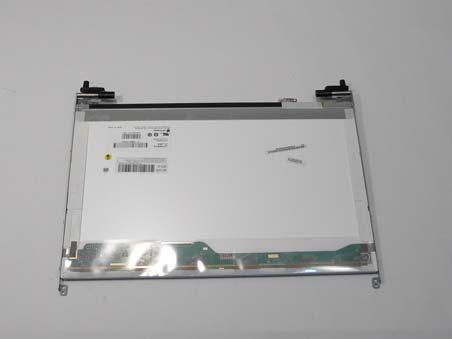

1. Align the LCD brackets with the screw holes on the panel. Starting with the top most screws (marked with ) replace the eight screws (four on each side) in the brackets as shown.

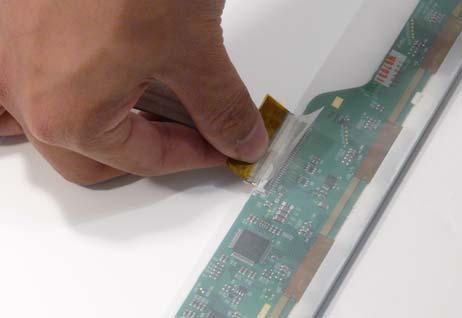

2. Insert the LCD Panel cable into the LCD Panel connector as shown.

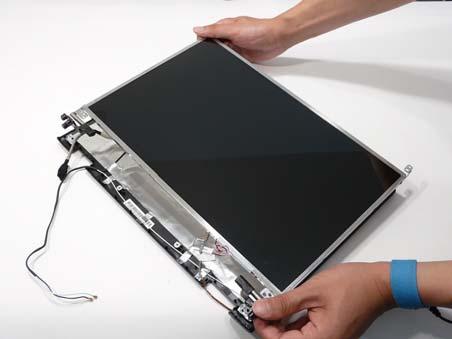

4. Place the LCD Panel in the back cover.

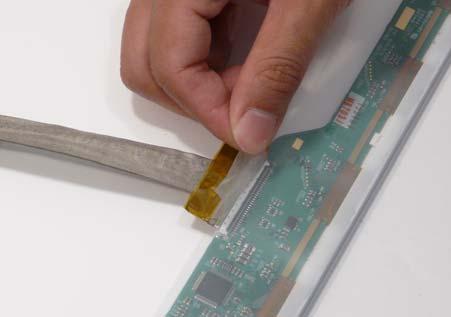

IMPORTANT: Ensure that the LCD power cable passes through the hinge well and is not trapped under the panel. 3. Replace the adhesive strip securing the connector in place.

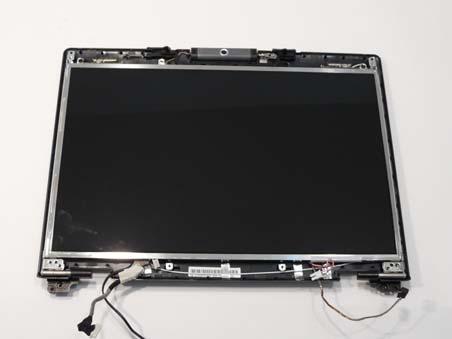

5. Secure the LCD module with the two securing screws.
