Removing the Mainboard

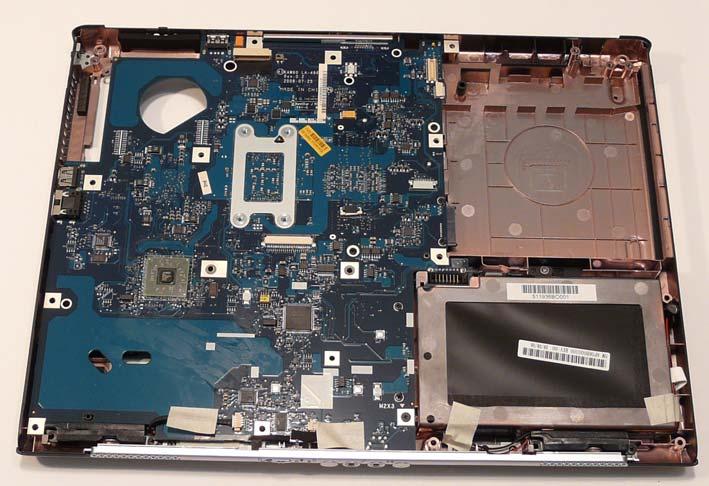

1. See “Removing the Switch Board” on page 70. 2. Remove the six securing screws from the Mainboard.

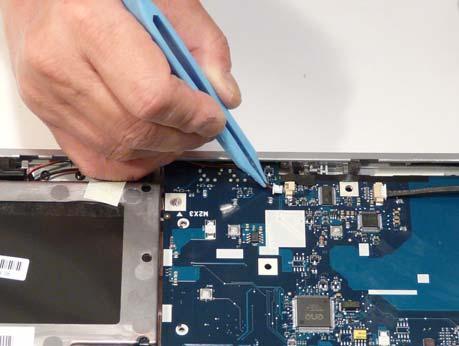

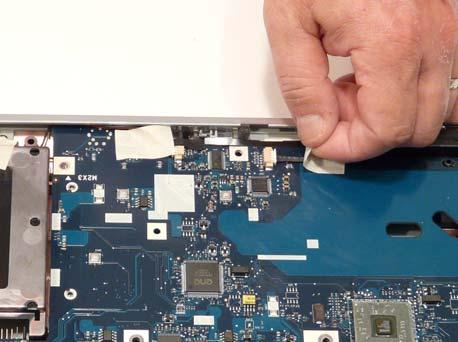

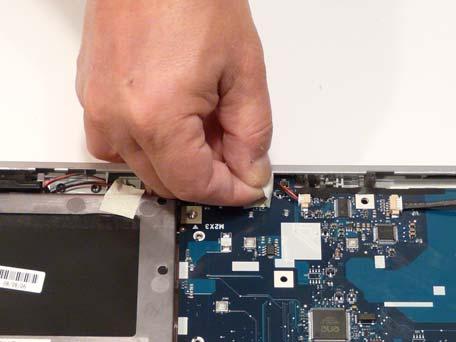

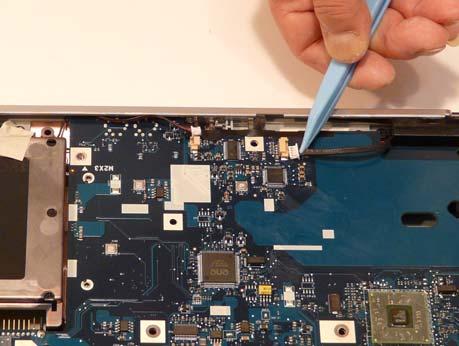

3. Remove the two adhesive strips from the Speaker and MIC connectors.

Step

Mainboard (red callout)

Mainboard (green callout)

Size

M2*3 5

M2.5*3 1

Quantity Screw Type

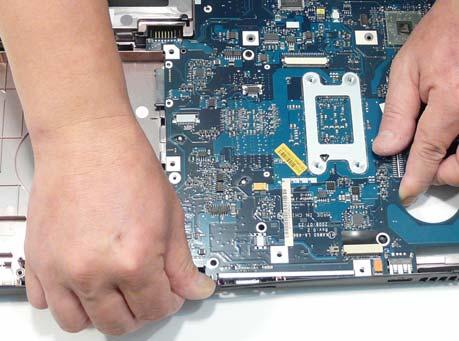

5. Ease out the casing to release the I/O ports from the rear of the chassis and lift the mainboard upward.

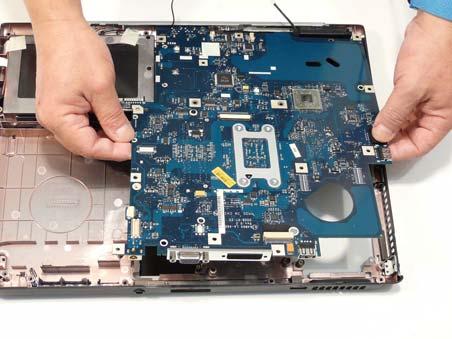

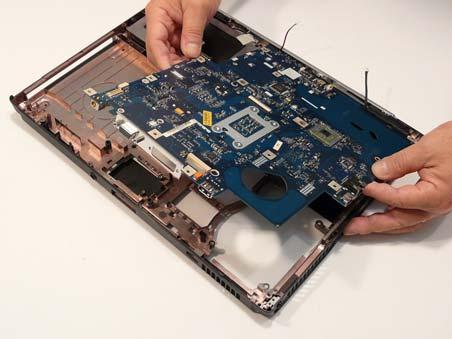

6. Remove the mainboard from the chassis, in the direction of the arrow, and place it on a clean, dust-free surface.
