Removing the Speaker Module

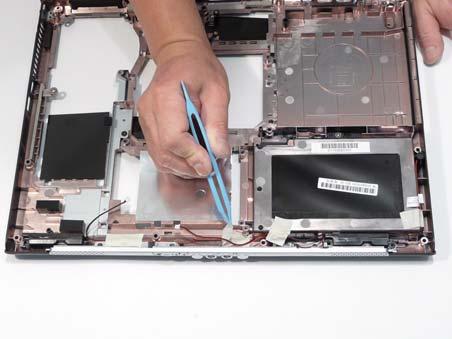

1. See “Removing the Mainboard” on page 71. 2. Remove the adhesive tape from the speaker cable.

3. Remove the two screws from the speaker modules.

NOTE: The left and right speaker module securing screws differ slightly in length. Ensure the correct screw is used for each speaker.

Step

Left Speaker Module (red callout)

Size

M2.5*3 1

Quantity Screw Type

Right Speaker Module (green callout) M2.5*6 1

5. Ensure the speaker cable is clear of any obstructions or adhesive strips.

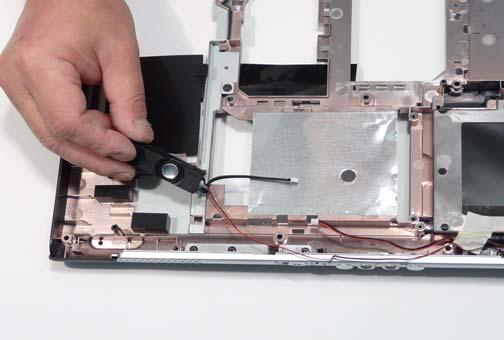

6. Remove the right side speaker from the chassis and lift the entire speaker assembly clear of the chassis.
