Removing the WLAN Module

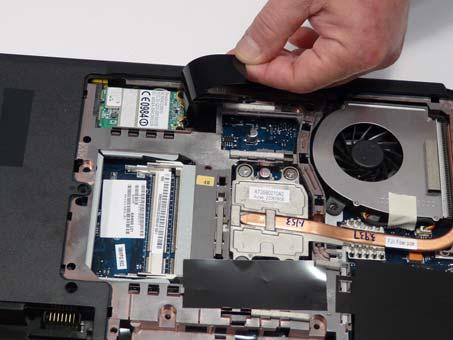

1. See “Removing the Battery Pack” on page 44. 2. Remove the Memory cover. See “Removing the Lower Covers” on page 44. 3. Pull back the protective cover to expose the WLAN board as shown.

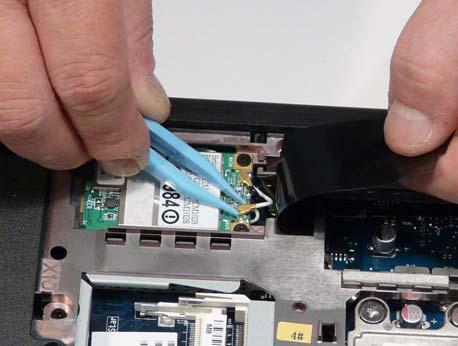

4. Disconnect the antenna cables from the WLAN board.

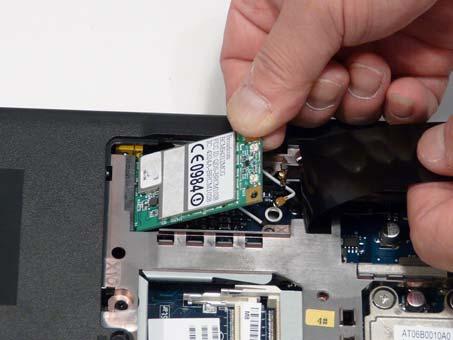

5. Move the antenna away and remove the two screws on the WLAN board to release the WLAN board.

Step

Size

WLAN Module M2*3 2

Quantity Screw Type

NOTE: When reattaching the antennas, ensure the cables are tucked into the chassis to prevent damage.
