Removing the USB Board

1. See “Removing the Upper Cover” on page 67. 2. Open the FFC securing latch and remove the cable from the Mainboard connector.

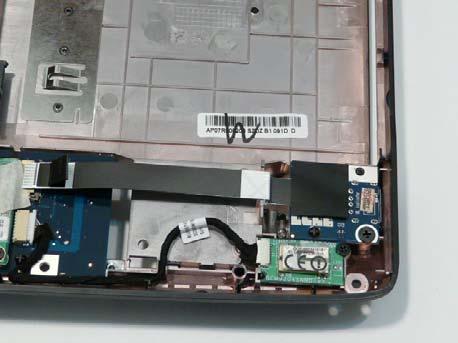

3. Remove the single screw securing the USB Board to the Lower Cover.

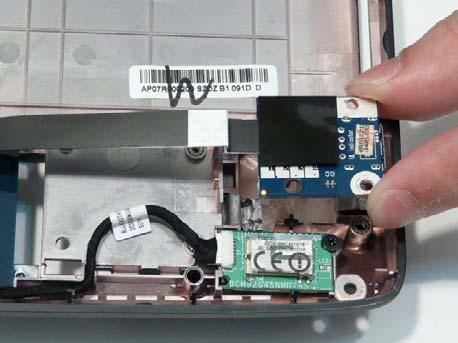

4. Remove the USB Board from the Lower Cover.

Step

Size

USB Board M2.5*3 1

Quantity Screw Type
