Top View
Jumper and Connector Locations
Top View

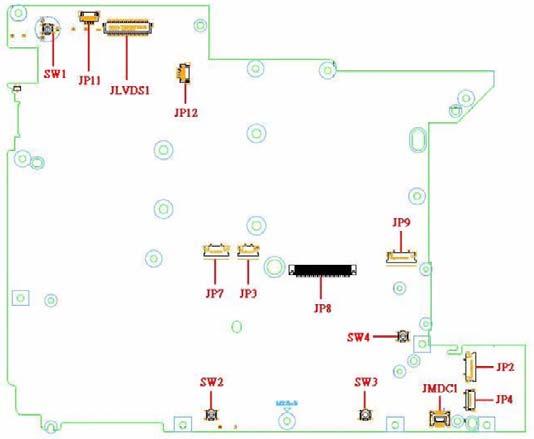

VGA UMA

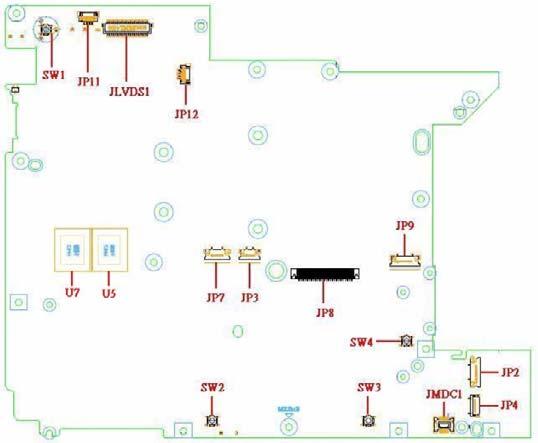

Discrete
Item Description Item Description
SW1 ON/OFF Button U7 VRAM JP11 Camera Connector U5 VRAM JLVDS1 LCD Connector SW4 Touch Pad Lock Button JP12 Speaker Connector SW 2 Touch Pad (left) Button JP4 Bluetooth Connector SW 3 Touch Pad (right) Button
