Replacing the LCD Panel

Next Article
Aspire 1810T/1410 Series Exploded Diagrams

Aspire 1810T/1410 Series Exploded Diagrams

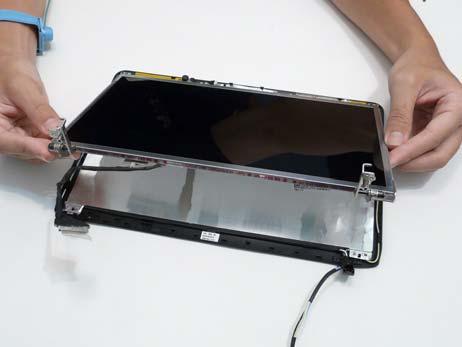

1. Place the LCD panel into LCD module as shown top edge first, making sure the cable is not trapped behind the panel.

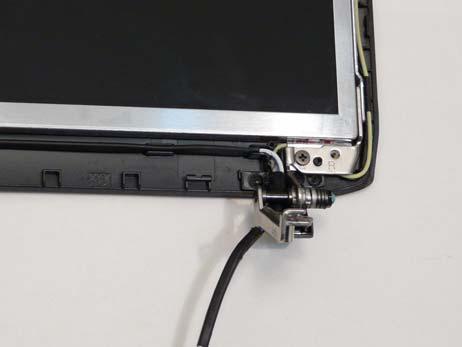

2. Replace the two screws while ensuring the cables pass through the hinges correctly.

Screw List

Step Screw Quantity Screw Type

LCD Panel Assembly 2x3 2
