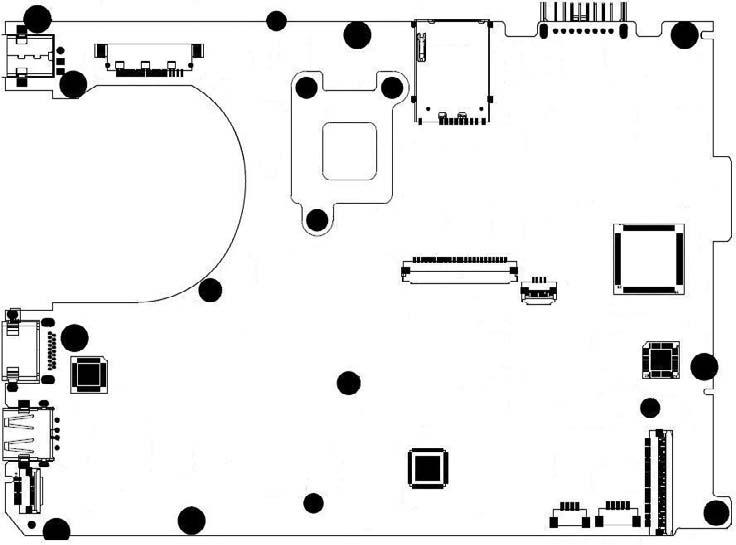

Mainboard Top View

Jumper and Connector Locations

Mainboard Top View

TOP SIDE

PJ1: DC-in CN3: LCD connector PJ2: Battery connector

CN18: HDMI

CN17: USB

CN2: LED board

connector JSIM2: SIM card connector

U12: EC Winbond

WPCE775LA0DG

CN4: Keyboard connector

U2: HDMI level shift CN5: Touch Pad connector

U14: Codec

Realtek ALC269X

CN8: Card Reader board Connector

U9: Clock Generator CN7: Speaker Connector

CN6: Bule Tooth Connector

Item Description Item Description

PJ1 DC-in CN6 Bluetooth Connector CN3 LCD connector U9 Clock Generator JSIM2 SIM card connector CN2 LED board connector PJ2 Battery connector CN17 USB connector U12 EC Winbond CN18 HDMI U14 Codec U2 HDMI level shift CN8 Card reader board connector CN4 Keyboard connector CN7 Speaker Connector CN5 Touch Pad connector
