Chapter 5 Jumper and Connector Locations

Jumper and Connector Locations

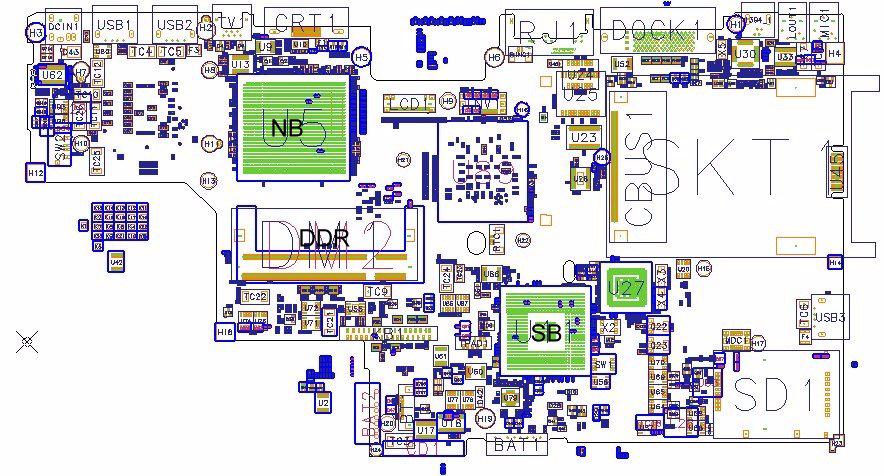

Top View

Item Description Item Description DCIN1 DC-In Jack 1394_1 IEEE 1394 Port USB2 USB Port LOUT Line-Out Jack USB1 USB Port MIC1 Mic-In Jack TV1 S-Vedio Port USB3 USB Port CRT1 External Display Port SD1 Card Reader LCD1 LCD Coaxial Cable Connector TPAD1 Touchpad Connector NB North Bridge KB1 Keyboard Connecto SB South Bridge DM2 DIMM Socket 2 INV1 Inverter Cable Connector U89 VGA chip RJ1 Modem Jack/LAN Jack DOCK1 Expansion Port CBUS1 PCMCIA Slot

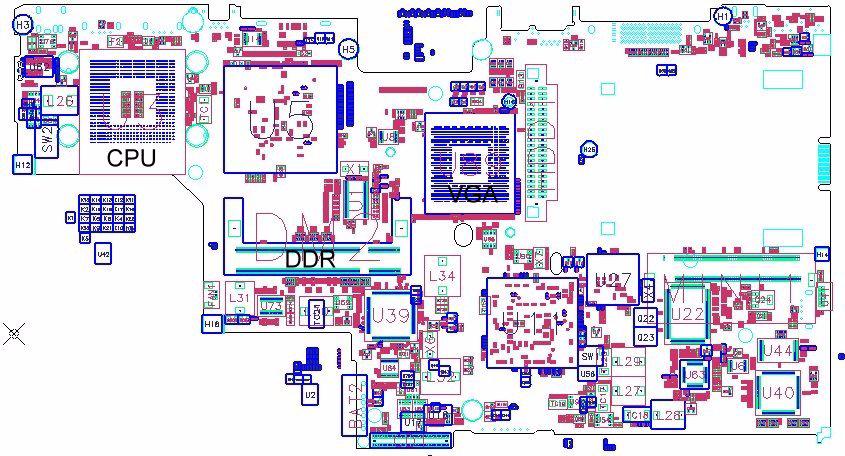

Item Description Item Description CPU CPU Socket HDD1 Mini PCI Connector DDR DIMM Socket 1 MINI1 HDD Connector FAN1 FAN Connector

Switch Setting

SW2-1 CHKPW ON X BOOTBLOCK ENABLE X ON SW2-2

Clear CMOS Procedure 1. Run CLCMOSOS.COM in DOS mode to clear the CMOS values.
