Chapter 5 Jumper and Connector Locations

Jumper and Connector Locations

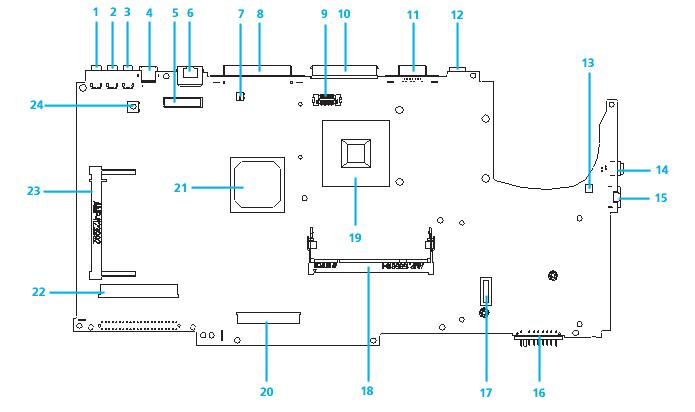

Top View

1 USB Connector Port 12 DC Jack Port 2 USB Connector Port 13 Modem Connector 3 USB Connector Port 14 IEEE 1394 Connector 4 TV-Out Connector 15 RJ11 Connector 5 Panel Connector 16 Battery Connector 6 RJ45 Connector Port 17 MDC Connector 7 Panel Backlight On/Off Switch 18 DDR 200Pin Port 8 LPTCN-27 Port 20 Internal Keyboard Connector 9 Switch Buttom Interface Connector 22 Audio Board to Main Board Connector 10 SPR Connector 23 Mini PCI Connector 11 CRT Connector Port 24 System On/Off Button

SW3 Setting

PANEL BACKLIGTH ON/OFF BUTTON ON: PANLE BACKLIGHT ON OFF: PANEL BACKLIGHT OFF

SW2 Settings

SW2

POWER BUTTON ON:SYSTEM ON OFF: SYSTEM OFF

Setting

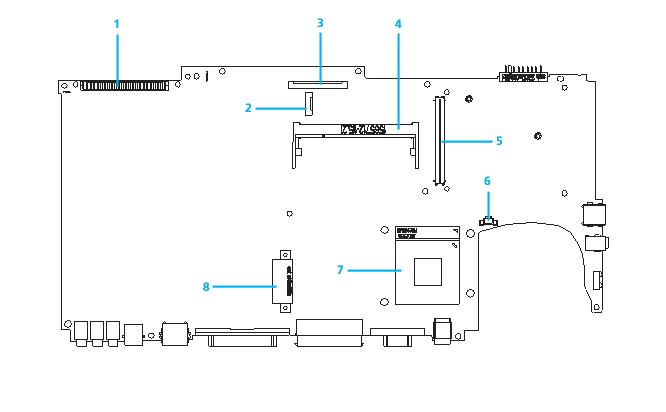

1 HDD Connector 5 PCMCIA Connector 84Pin Port 2 Card Reader Connector 6 CPU FAN Connector 3 FDD Connector 7 CPU Socket 4 DDR 200Pin So-Dimm Connector 8 CD-ROM Port
