Removing the Optical Drive Module

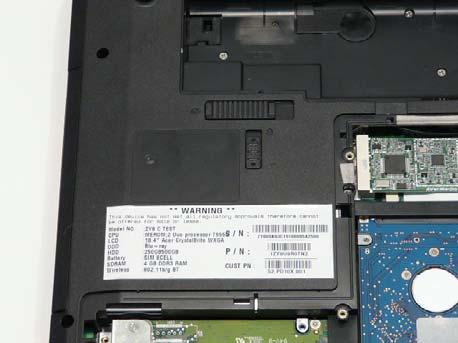

1. See “Removing the Lower Door” on page 59. 2. Remove the single screw securing the ODD Module.

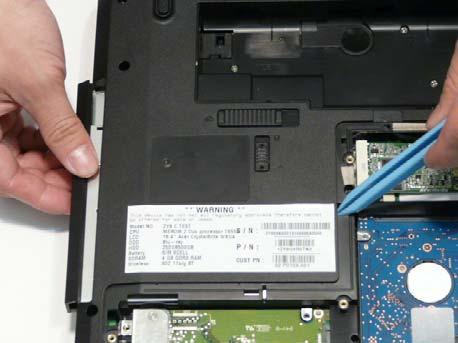

3. Insert a suitable object in to the Lower Cover to push the ODD Module clear of the casing. 4. Pull the ODD Module out of the chassis.

Step

Size

ODD Module M2.5*4 1

Quantity Screw Type

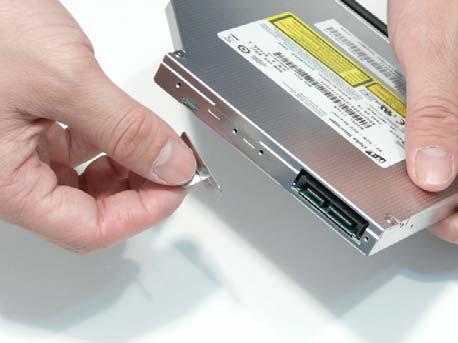

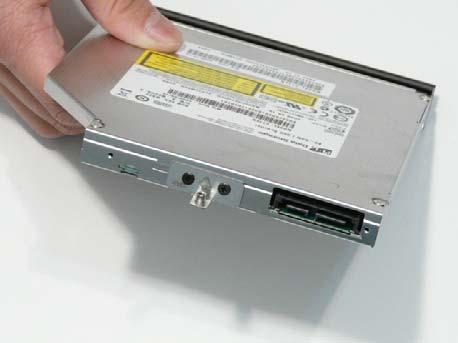

5. Remove the two screws securing the ODD Bracket and remove the ODD bracket from the module.

NOTE: Remove the left side screw first during disassembly.

Step

Size

ODD Bracket M2*3 2

Quantity Screw Type

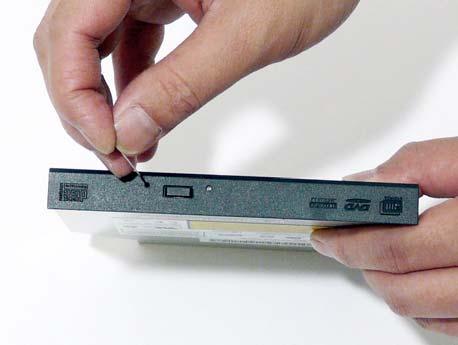

6. Insert a pin in the eject hole of the ODD to eject the ODD tray.

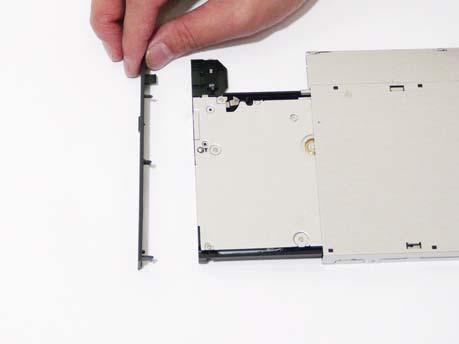

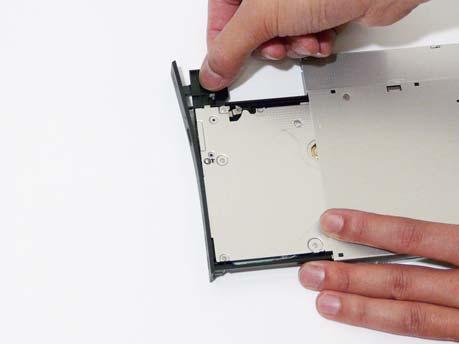

7. Press down on the locking catch to release the ODD cover and remove.
