Replacing the Keyboard

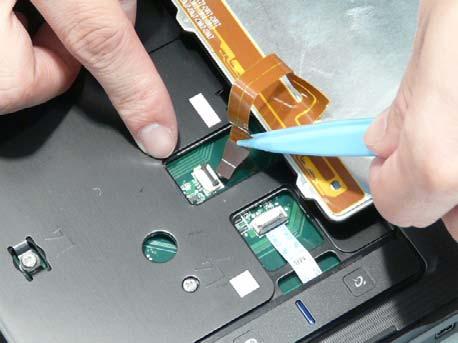

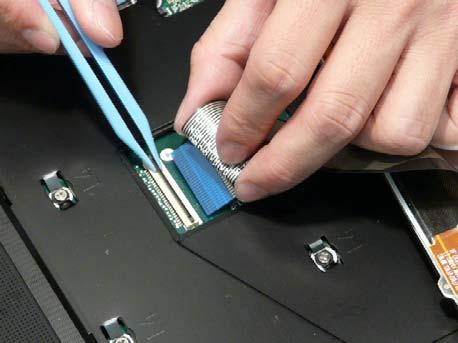

1. Place the keyboard face down on the upper cover. 2. Connect the Keyboard cable by inserting the cable into the Mainboard and closing the locking latch.

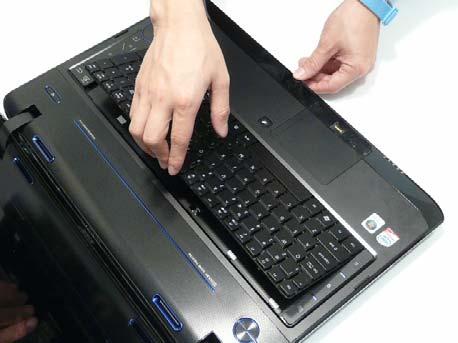

4. Flip the keyboard over and slide the bottom tabs into the holes in the upper cover.

5. Press the Keyboard into the Upper Cover until all the securing clips snap into place.
