Replacing the ODD Module

Replacing the Left Speaker Module

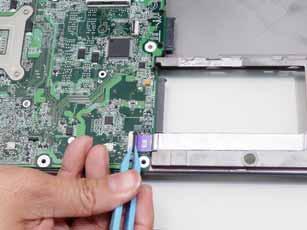

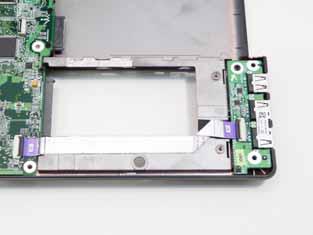

1. Replace the USB Board in the Lower Cover. 2. Insert the FFC cable in to the connector on the Mainboard and secure the locking latch.

3. Replace the single securing screw.

1. Place the Speaker Module on the Upper Cover as shown. 2. Replace the one (1) securing screw.

3. Lay the speaker cable into it’s guides.
