Replacing the Microphone Module

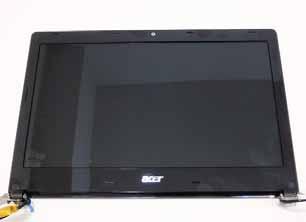

1. See “Removing the LCD Module” on page 75. 2. Remove the two lower bezel screw caps and screws.

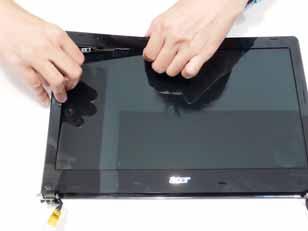

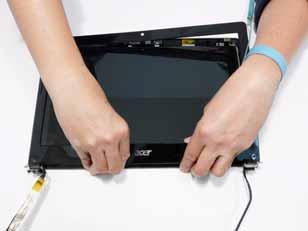

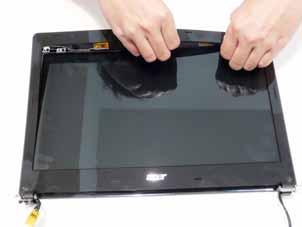

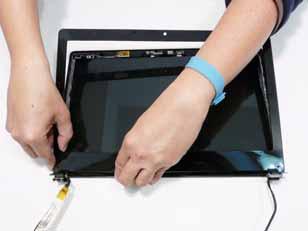

3. Starting from the top-left corner of the bezel, pry the bezel upwards and away from the panel. Move along the top and left until all sides of the bezel are removed.

Step

Size

LCD Bezel M2.5*4 2

Quantity Screw Type
