Removing the LCD Panel

Removing the CPU

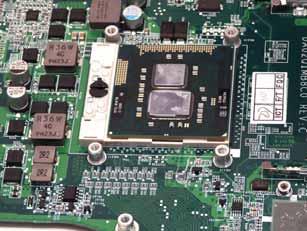

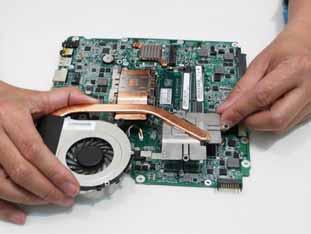

1. See “Removing the Thermal Module” on page 71. 2. Using a phillips screw driver, rotate the CPU locking screw 180° counter-clockwise as shown.

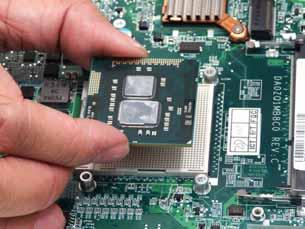

3. Lift the CPU clear of the socket as shown.

IMPORTANT:The pins on the underside of the CPU are very delicate. If they are damaged, the CPU may malfunction. Place the CPU on a clean, dry surface when it is not installed.
