Removing the USB Board

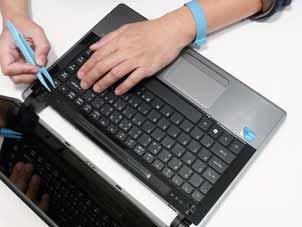

5. Using both hands, gently pry up the cover as shown and turn it over.

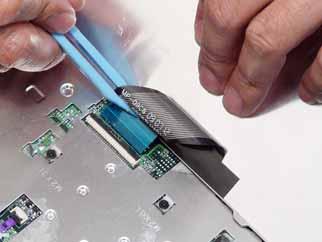

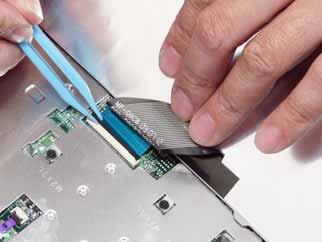

6. Open the locking latch on the FFC, and disconnect the cable as shown.

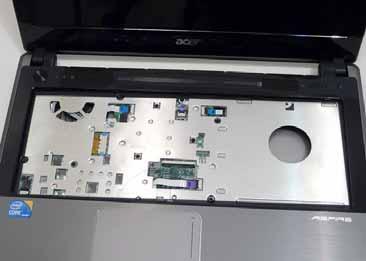

7. Lift the keyboard clear of the chassis.

1. See “Removing the Keyboard” on page 56. 2. Turn the computer over. Disconnect the following four cables from the Mainboard: a. Left speaker cable b. Touchpad FFC c. Power Switch FFC d. Switch Board FFC

C D E
