Removing the Mainboard

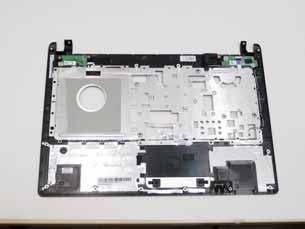

1. See “Removing the Upper Cover” on page 58. 2. Locate the LED Board in the Upper Cover.

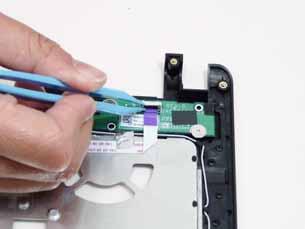

3. Release the securing latch holding the LED Board FFC and remove.

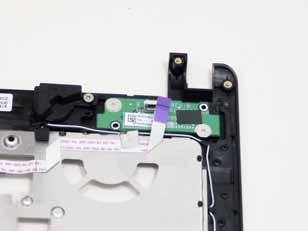

4. Remove the two (2) screws and lift the LED Board clear of the Upper Cover.

Step

Size

LED Board M2.0*3widehead 2

Quantity Screw Type

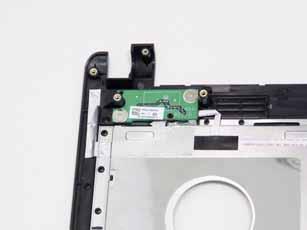

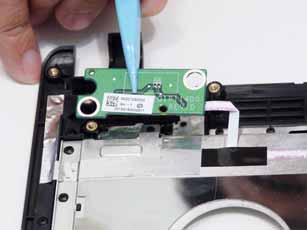

1. See “Removing the Upper Cover” on page 58. 2. Locate the Switch Board in the Upper Cover and remove the two (2) screws attaching it to the upper cover.

3. Lift the Switch Board away from the Upper Cover but do not remove it completely.

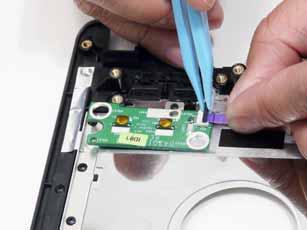

4. Turn the Switch board over. Release the securing latch holding the Switch Board FFC and remove.

Step

Size

Switch Board M2.0*3widehead 2

Quantity Screw Type
