Disassembling clutch "K3/K4"........................................................................................................................................B2

"CMatic" cartridge

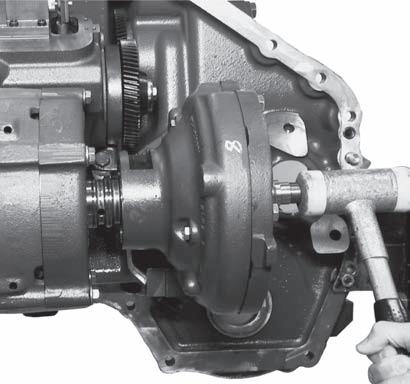

– Use a hammer with plastic bit. – Extract the clutch housing with the planetary train.

Important: Extract the clutch housing carefully to avoid damaging the spans of the piston bushes in the console.

Disassembling clutch "K3/K4"

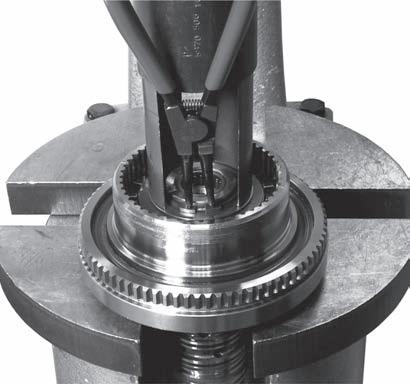

– Remove jonc arrest. – Separate the clutch housing "K3/K4" from the satellite holder "P3/P4".

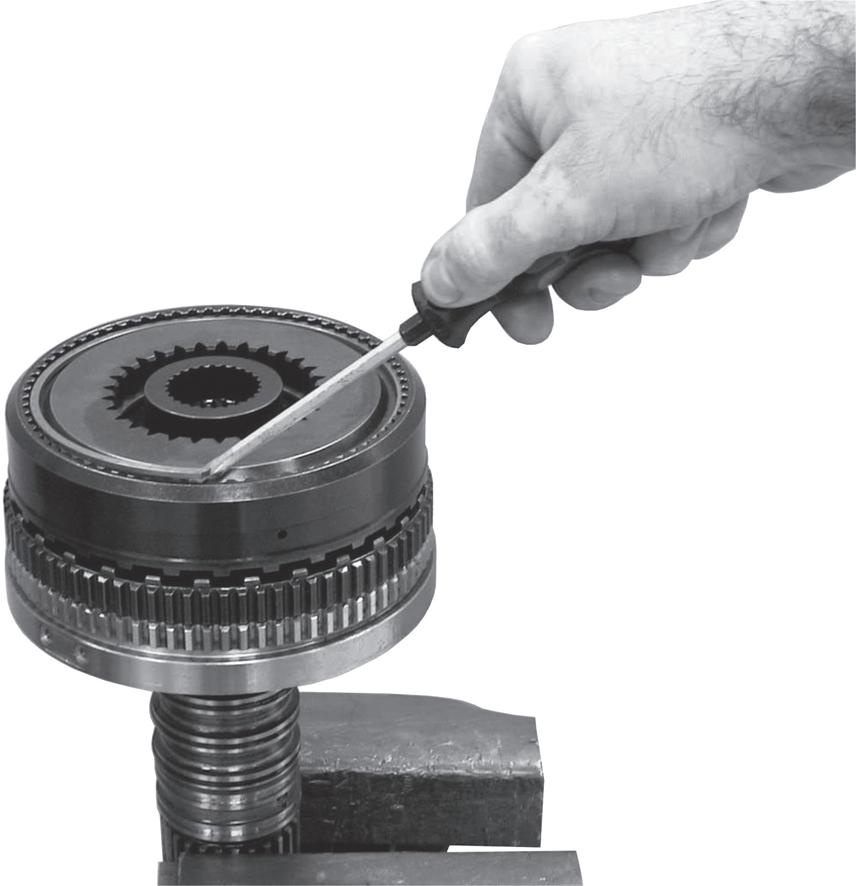

– Remove jonc arrest. – Remove the hub from the clutch.

327hsm0x Fig. 115

327hsm0y Fig. 116

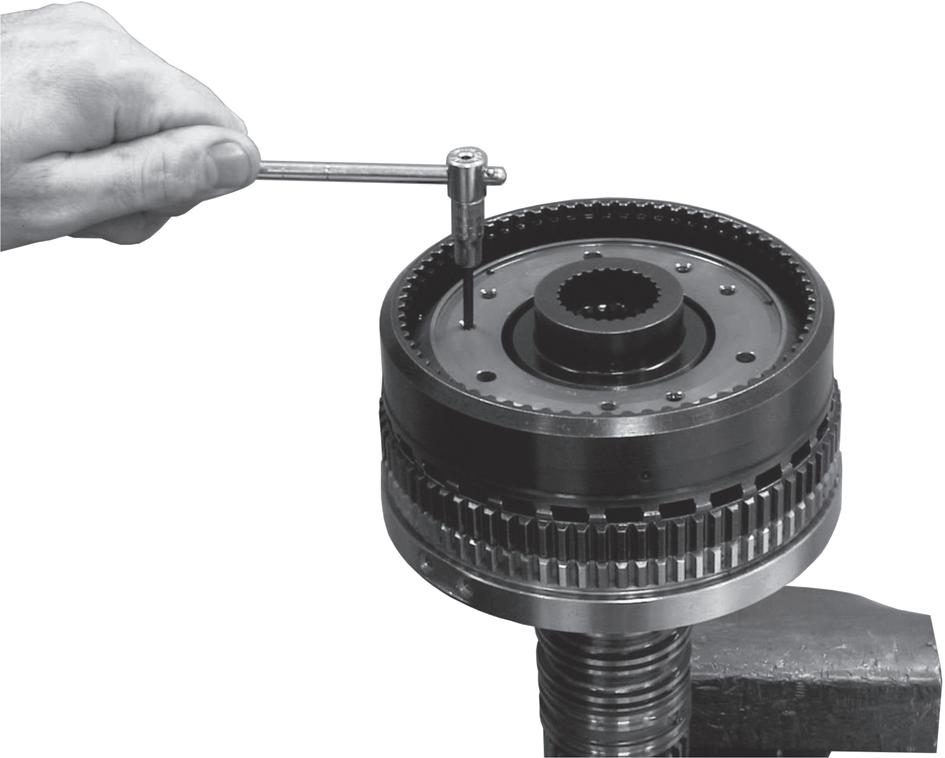

– Loosen the screws.

"CMatic" cartridge

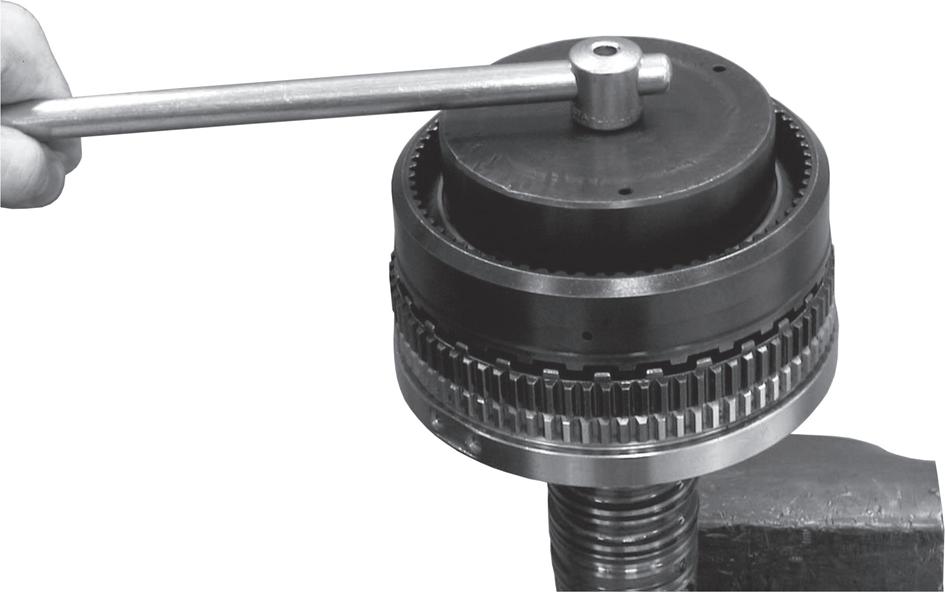

– Use the following specific tool: 0011394230 Wrench for notch nut. – Untighten the nut. – Remove the set of pawls. – Remove the dished periphery washers.

– Use the following specific tool: 0011394260 Adapter socket. – Compress the dished periphery washer with a press. – Remove the circlip. – Remove the clutch housing. – Remove the parts.

Note: File the clutch housing teeth at the points where the 3 screws are fastened to remove the clutch bush "K3". The pistons stay in the clutch housing. The clutch housing is delivered with the pistons fitted.

327hsm1a Fig. 118

327hsm1b Fig. 119
