Controls/Indicators

Front Brake Lever

! WARNING

After removing and installing of components that are brake-related, ALWAYS check and adjust brakes as necessary before operating the ATV.

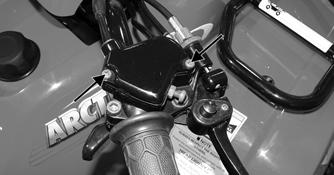

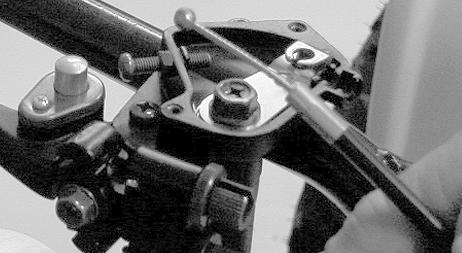

REMOVING 1.Remove the right handlebar grip. 2.Remove the cover from the throttle control housing exposing the throttle cable; then remove the cable.

MD2440

MD2439

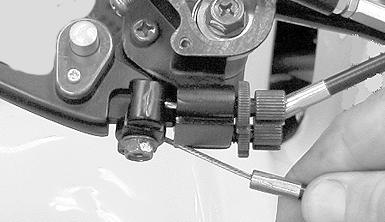

3. Remove the front brake cables from their adjusters by screwing the adjusters inward to loosen the cables; then pulling them free.

MD2449

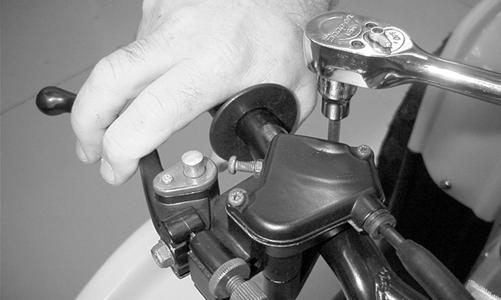

4. Loosen the screw securing the front brake lever assembly and slide the assembly off the handlebar.

MD2450

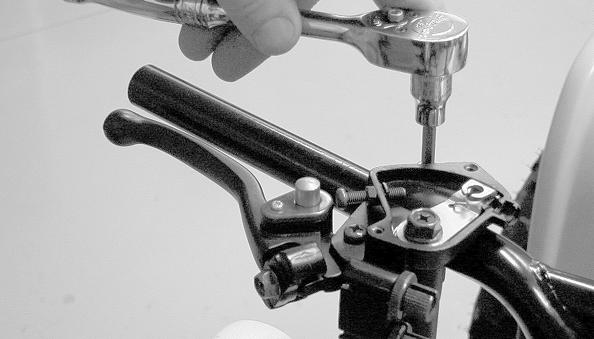

INSTALLING 1.Slide the right brake lever assembly onto the handlebar; do not tighten the screw completely at this time.

MD2452

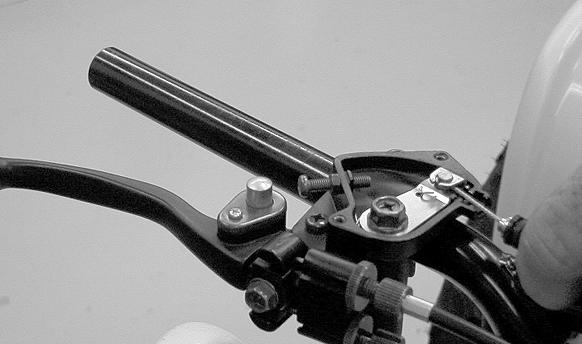

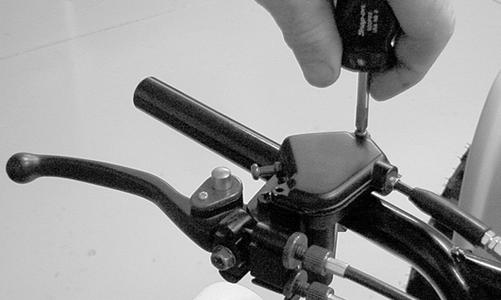

2. Install the throttle cable into the throttle control housing; then install the cover and secure with the screws.

MD2454

KM548A

3. Install the brake cable to the lever assembly. NOTE: Before installing a handlebar grip, use con-

tact spray or alcohol to clean the inside of the grip and the handlebar of adhesive residue, oil, or any other contaminant.

4.Apply a liberal amount of Handlebar Grip Adhesive to the inside of the grip; then slide the right grip onto the handlebar. Wipe off any excess adhesive. 5.Tighten the right brake lever assembly screw (from step 1) securely.

MD2461

Throttle Control

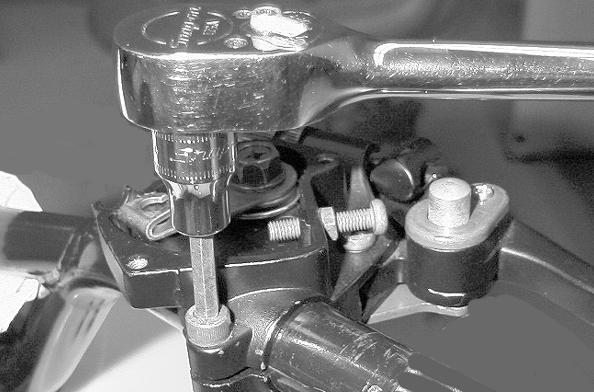

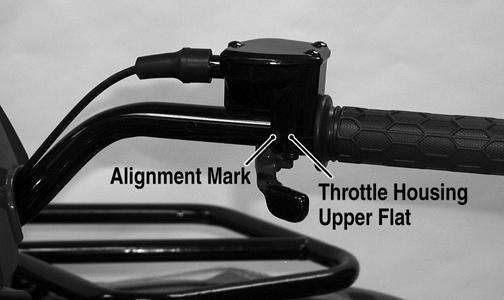

REMOVING 1.Remove the boot from the throttle cable adjuster; then loosen the jam nut and turn the adjuster completely in to loosen the cable. 2.Remove the three machine screws securing the cover to the throttle control; then remove the cover and disengage the throttle cable from the throttle arm. 3.Turn the cable adjuster out of the throttle control housing; then remove the two machine screws securing the throttle control to the handlebar and remove the throttle control. INSTALLING 1.Making sure the throttle housing upper flat aligns with the alignment mark on the handlebar, place the throttle control into position on the handlebar and secure with the two machine screws; then tighten the machine screws securely.

KM122B

2.Thread the throttle cable into the throttle housing and turn the adjuster completely in; then connect the throttle cable to the throttle arm. 3.Install the throttle housing cover; then adjust the throttle cable.
