DRIVEN CLUTCH

0740-718

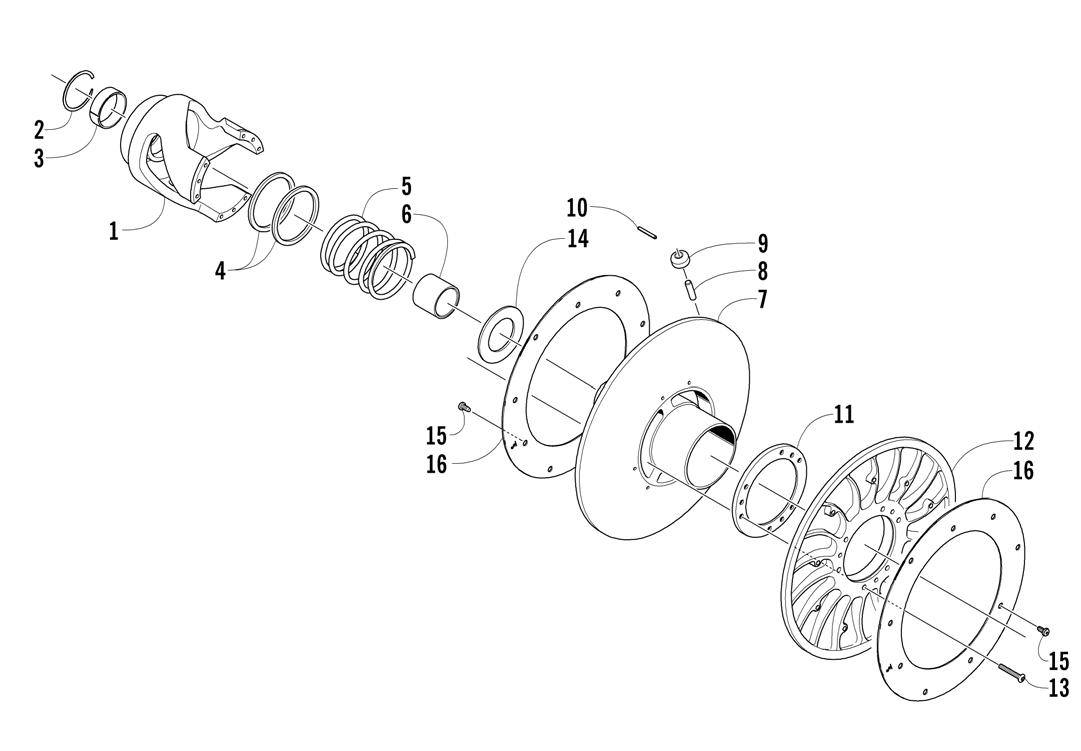

DRIVEN CLUTCH (Assembly p/n 0726-215)

1 0748-636 1 Bracket, Torque 44°/40° (inc. 2-3) 0748-622 1 Bracket, Torque 36° (inc. 2-3) (Over 9,000 ft Alt.) 2 0648-433 1 ‹ Ring, Snap 3 0648-009 1 ‹ Bearing 4 0648-713 2 Seat, Spring - Driven Clutch 5 0648-732 1 Spring, Driven Clutch - Green 6 0648-753 1 Spacer 7 0748-613 1 Sheave, Stationary (inc. 8-10)

8 0648-097 6 ‹ Pin, Cam Roller 9 0648-139 6 ‹ Roller, Cam 10 8070-224 6 ‹ Pin, Spring 11 0648-650 1 Retainer, Torque Bracket 12 0748-617 1 Sheave, Movable 13 1623-517 9 Screw, Machine 14 0648-437 1 Seat, Spring 15 0623-914 18 Screw, Self-Tapping 16 0648-728 2 Cover, Sheave
