DRIVE CLUTCH

Cam Arm Kit - p/n 4639-217 (inc. 3-5 and 7-8) Uncalibrated Drive Clutch - p/n 0746-762

0740-817

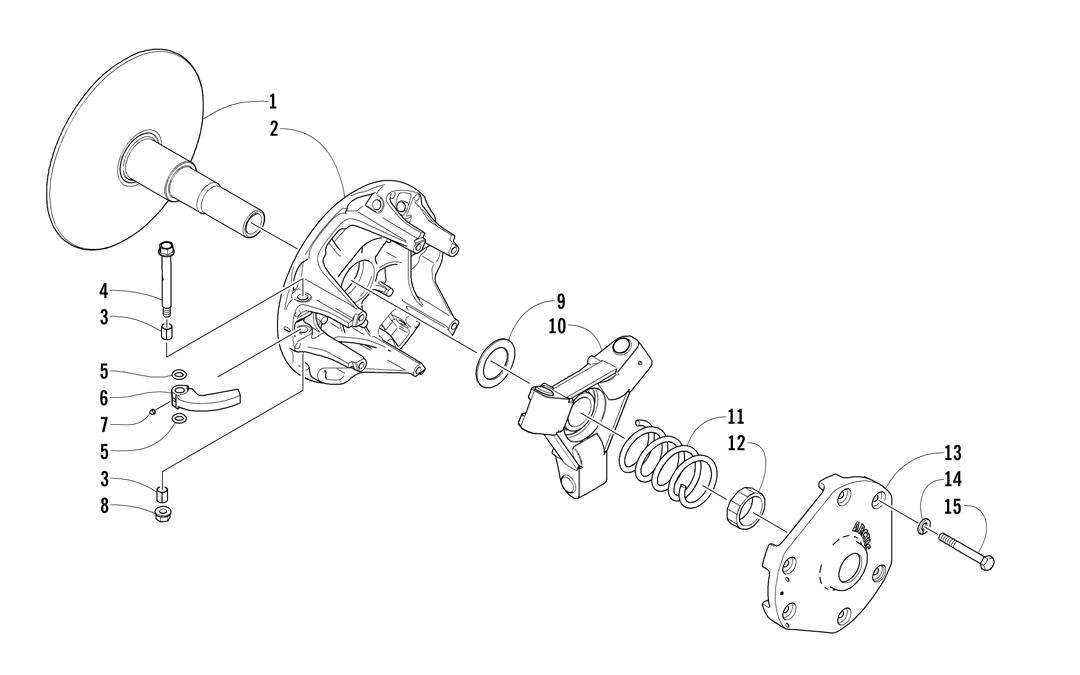

DRIVE CLUTCH

(Assembly p/n 0725-506)

1 0746-766 1 Sheave, Stationary 2 0746-756 1 Sheave, Movable (inc. 3) 3 0646-372 6 ‹ Bearing 4 0646-747 3 Pin, Cam Arm 5 1602-692 6 O-Ring 6 0746-672 3 Arm, Cam (inc. 7) 0746-670 3 Arm, Cam (inc. 7) (5-9,000 ft Alt.) 0746-694 3 Arm, Cam (inc. 7) (Over 9,000 ft Alt.) 7 1623-183 3 ‹ Screw, Set

8 8048-366 3 Nut, Lock 9 0646-377 1 Spacer 10 0746-115 1 Spider Assembly 11 0646-229 1 Spring, Drive Clutch - Yellow/White 12 0646-140 1 Nut 13 0746-160 1 Cover 14 8051-212 6 Washer, Lock - Spring 15 1623-442 6 Screw, Machine
