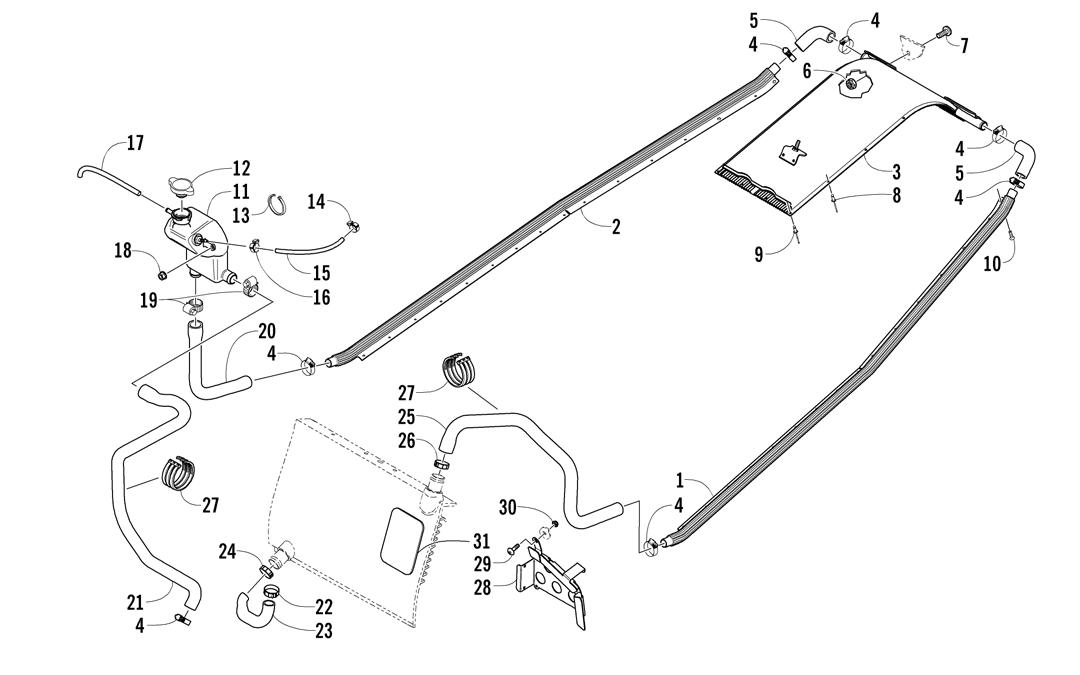

COOLING ASSEMBLY

0740-722

1 2706-703 1 Heat Exchanger - Left Tube 2 2706-702 1 Heat Exchanger - Right Tube 3 3706-001 1 Heat Exchanger, Rear 4 1623-229 7 Clamp, Hose 5 0610-567 2 Hose, Coolant - Rear Heat Exchanger 6 8041-246 2 Nut, Lock 7 8017-397 2 Screw, Machine 8 8060-484 6 Rivet 9 1623-405 4 Rivet 10 1623-061 2 Screw, Plastite 11 3606-349 1 Tank, Coolant 12 0606-268 1 Cap, Filler Neck 13 0123-788 AR Cable Tie - 8 in. 14 0623-063 1 Clamp, Hose 15 0610-538 AR Hose, Vent - 25 ft 16 0124-045 1 Clamp, Hose 17 0610-693 AR Hose, Vent - 100 ft 0610-692 AR Hose, Vent - 25 ft 18 8047-366 1 Nut, Lock 19 1623-092 2 Clamp, Hose 20 0610-571 1 Hose, Coolant - Right Tube/Coolant Tank 21 0610-573 1 Hose, Coolant - Coolant Tank/Engine 22 1623-418 1 Clamp, Hose 23 0610-648 1 Hose, Coolant - Engine/Front Heat Exchanger 24 1623-186 1 Clamp, Hose 25 0610-634 1 Hose, Coolant - Front Heat Exchanger/Left Tube 26 1623-187 1 Clamp, Hose 27 0623-540 2 Cable Tie - Triple 28 4606-240 1 Protector, Hose 29 8017-305 1 Screw, Machine 30 8042-182 1 Nut 31 0617-498 1 Foam, Front Heat Exchanger
