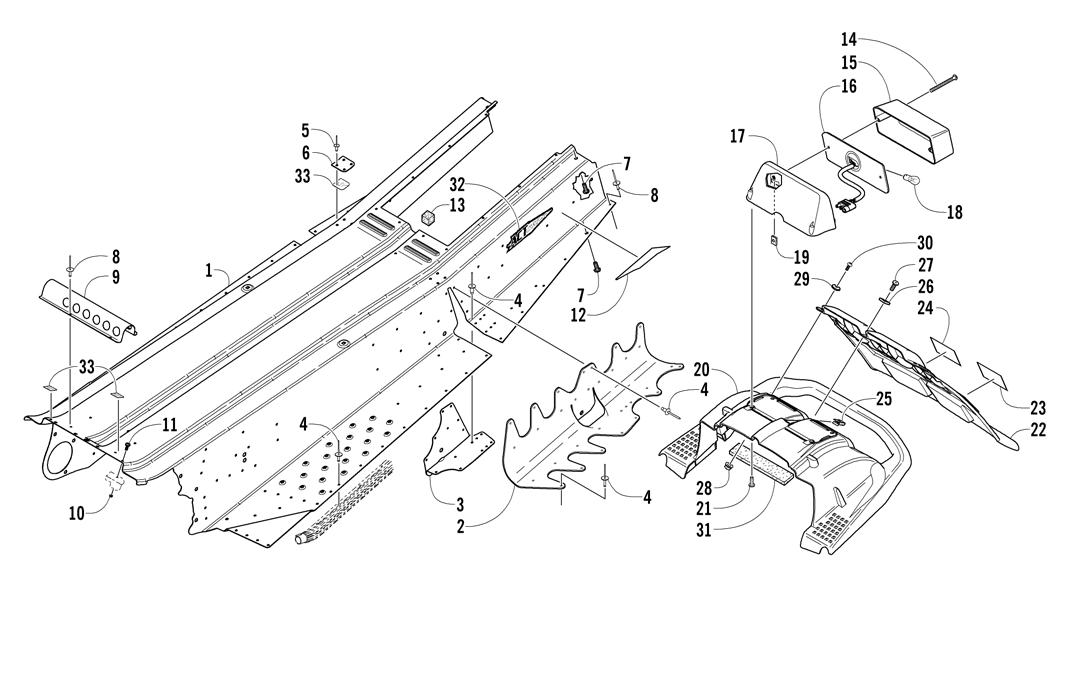

TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
(Complete Chassis p/n 1707-085) 0740-705 *Optional
1 1718-777 1 Tunnel Assembly (inc. 2-6) 2 3606-780 1 Bracket, Suspension Mounting - Right - Rear 3606-781 1 Bracket, Suspension Mounting - Left - Rear 3 2706-234 1 Plate, Backing - Right 2706-235 1 Plate, Backing - Left 4 0623-072 AR Rivet 0123-418 AR Rivet 0623-806 AR Rivet 8060-486 AR Rivet* 5 8060-686 8 Rivet 6 3606-818 2 Bracket, Support 7 1623-022 6 Screw, Self-Tapping 8 8060-484 8 Rivet 9 2606-938 1 Protector, Wiring Harness 10 8041-246 2 Nut, Lock 11 8017-399 2 Screw, Machine 12 6611-688 1 Decal, Reflector - Front - Right 6611-689 1 Decal, Reflector - Front - Left 13 0617-455 1 Foam, Rear Heat Exchanger 14 0623-204 2 Screw, Machine 15 0609-229 1 Lens, Taillight 16 0609-230 1 Taillight w/Socket Assembly 17 0609-624 1 Housing, Taillight 18 0109-460 1 Bulb, Taillight 19 1623-023 2 Nut, Speed 20 3606-292 1 Bumper, Rear 21 1623-109 4 Screw, Self-Tapping 22 4606-027 1 Snowflap w/Decals (inc. 23-24) 23 5611-853 1 Decal, Warning - Towing (English) 24 5611-852 1 Decal, Warning - Towing (French) 25 0623-363 1 Nut, Speed 26 1623-399 1 Washer, Snowflap 27 8017-579 1 Screw, Machine 28 8048-366 2 Nut, Lock 29 1623-242 2 Washer 30 8017-581 2 Screw, Machine 31 0617-456 1 Foam, Rear Heat Exchanger 32 6611-526 2 Decal, Tunnel 33 2606-007 4 Foil, Protective
