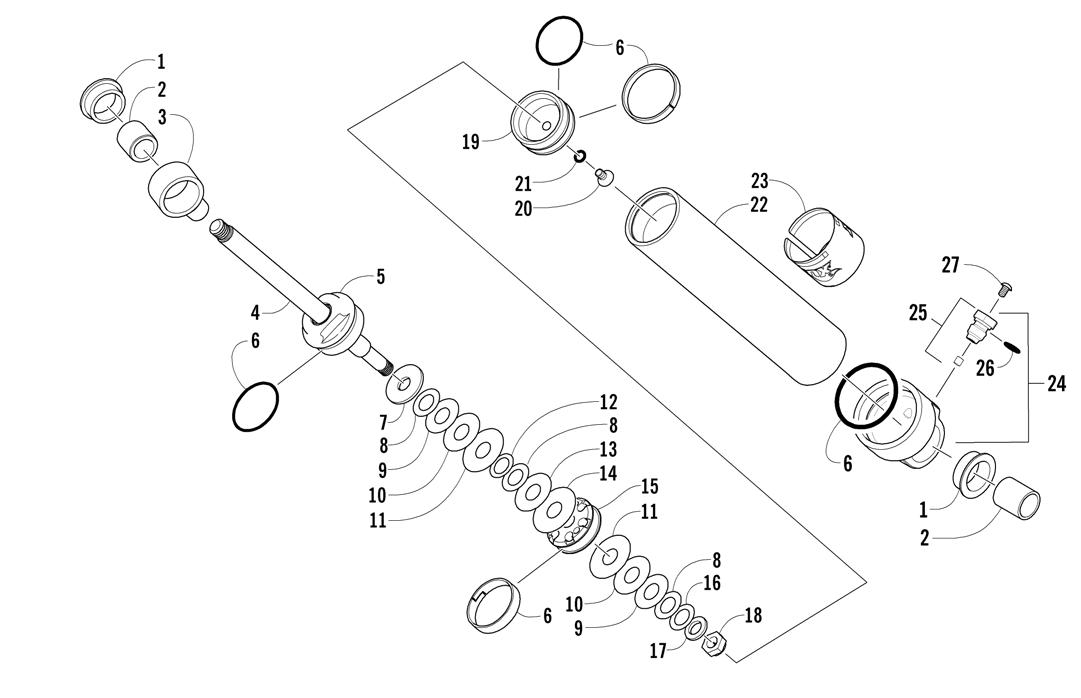

REAR SUSPENSION REAR ARM SHOCK ABSORBER

REAR SUSPENSION REAR ARM SHOCK ABSORBER

(Complete Shock Absorber p/n 1704-454) 0740-550 *Not Illustrated

1 1604-222 4 Bushing, Shock 2 2604-223 2 Sleeve, Eyelet 3 0604-893 1 Eyelet, Shock 4 2604-863 1 Rod, Shock 5 2604-413 1 Bearing - Assembly 6 2604-815 1 Kit, Seal/Rebuild 7 0603-540 1 Washer, Top Out 8 0603-338 3 Valve, 0.900 x 0.010 in. 9 0603-341 2 Valve, 1.000 x 0.010 in. 10 0603-344 2 Valve, 1.100 x 0.010 in. 11 0603-347 2 Valve, 1.250 x 0.010 in. 12 0603-731 1 Valve, 0.700 x 0.004 in. 13 0603-343 1 Valve, 1.100 x 0.008 in. 14 0603-350 1 Valve, 1.300 x 0.010 in. 15 2603-482 1 Piston, 0.046 in. - Orifice 16 0603-335 1 Valve, 0.800 x 0.010 in. 17 0603-389 1 Washer, Backup 18 0603-301 1 Nut, Lock 19 2604-816 1 Piston, Floating - Assembly 20 1604-316 1 Screw, Relief (inc. 21) 21 1604-425 1 ‹ O-Ring 22 2604-864 1 Body, Shock 23 2604-897 1 Decal, Shock 24 2604-817 1 End Cap, Shock (inc. 25-26) 25 0703-341 1 ‹ Valve, Pressure (inc. 26) 26 1604-318 1 ‹ ‹ O-Ring 27 0624-097 1 Screw, Valve * 2639-149 AR Oil, Gas Shock - 6 qt Case
