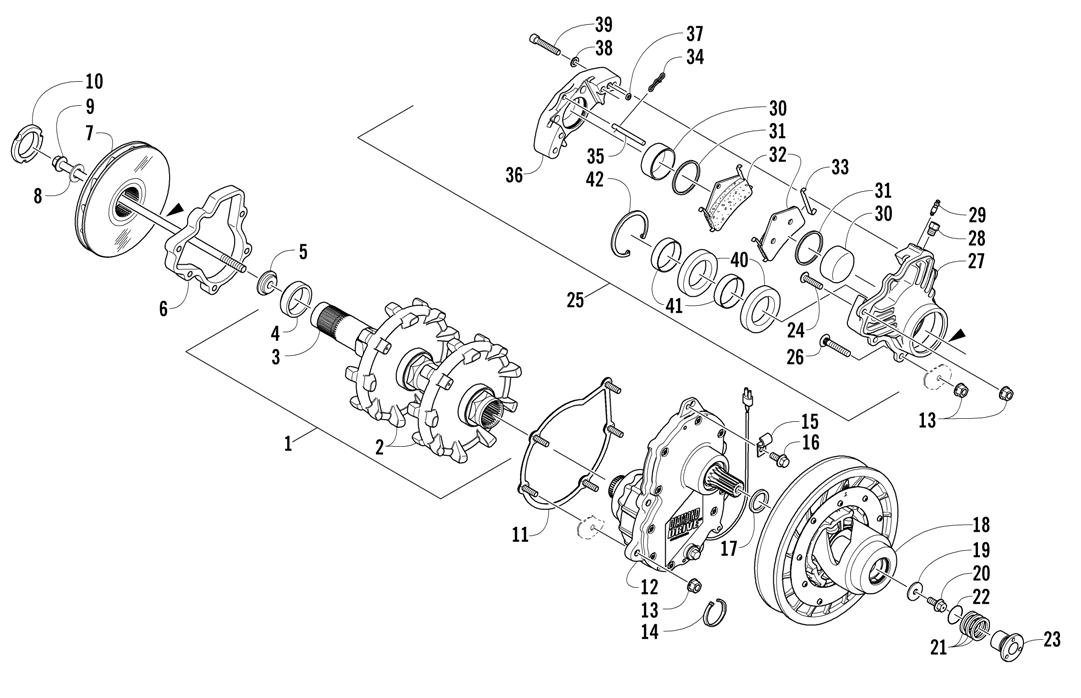

DRIVE TRAIN AND BRAKE ASSEMBLIES

0740-712 *Not a Service Part

1 0728-131 1 Track Drive Assembly (inc. 2-4) 2 1602-783 2 ‹ Sprocket, Drive 3 1602-759 1 ‹ Driveshaft 4 1602-315 1 ‹ Collar 5 1602-791 1 Insert, Driveshaft 6 1602-480 1 Spacer, Brake Caliper 7 1602-656 1 Disc, Brake 8 1623-445 1 Washer, Copper 9 1623-457 1 Screw, Cap 10 1602-355 1 Nut, Retaining 11 0702-529 1 Plate, Mounting - Gearcase 12 0702-792 1 Gearcase Assembly 13 8047-426 10 Nut, Lock 14 0123-788 1 Cable Tie - 7.5 in. 15 1623-390 1 Clamp, Half 16 8020-131 1 Screw, Cap 17 0648-442 AR Washer 0648-443 AR Washer 18 0726-215 1 Clutch, Driven 19 1623-072 1 Washer 20 1623-275 1 Screw, Cap 21 0648-714 AR Washer 0648-715 AR Washer 0648-716 AR Washer 22 0648-441 1 O-Ring 23 0648-741 1 Adjuster, Sheave 24 8017-676 1 Screw, Machine 25 0702-655 1 Caliper, Brake - Assembly (inc. 26-42) 26 1623-359 4 ‹ Bolt, Carriage - Ribbed 27 * 1 ‹ Housing 28 0602-590 1 ‹ Fitting, Adapter 29 1602-458 1 ‹ Fitting, Bleed 30 1602-461 2 ‹ Piston 31 1602-669 2 ‹ O-Ring 32 0702-563 1 ‹ Pad, Brake - Set (inc. 33-34) 33 1602-466 4 ‹ ‹ Clip, Anti-Rattle 34 1602-467 1 ‹ ‹ Clip, Hairpin 35 1602-464 1 ‹ Pin, Retaining - Brake Pad 36 * 1 ‹ Housing 37 0602-729 1 ‹ O-Ring, Housing 38 0402-165 4 ‹ Washer 39 1602-671 4 ‹ Screw, Cap 40 1602-462 2 ‹ Bearing 41 1602-463 2 ‹ Sleeve, Driveshaft 42 1602-456 1 ‹ Ring, Retaining
