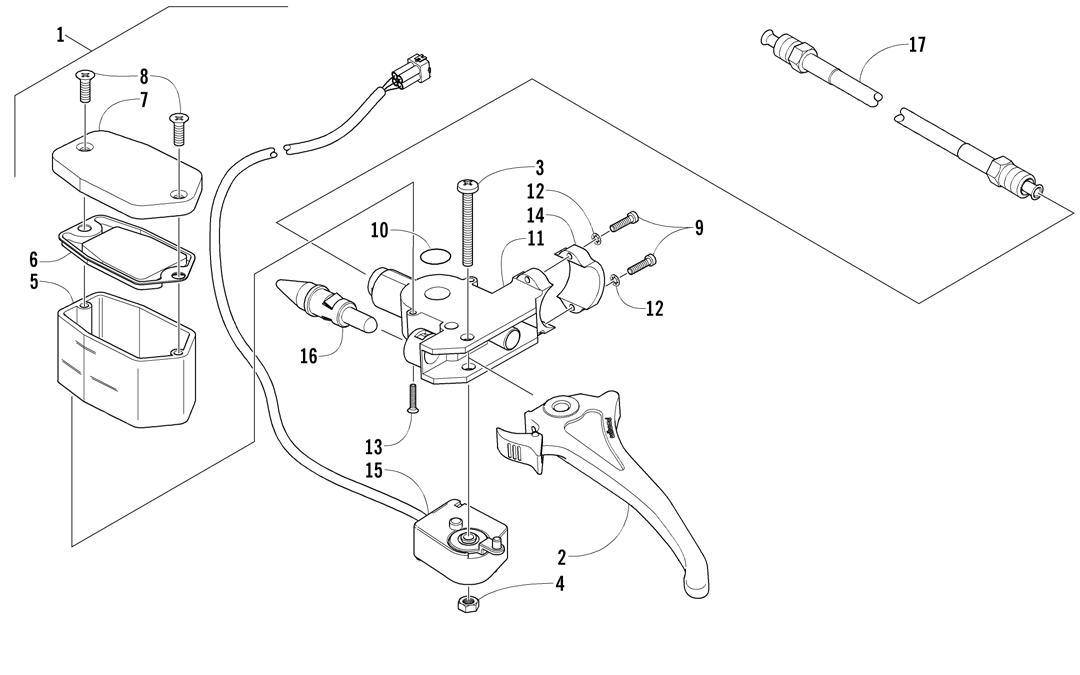

HYDRAULIC BRAKE CONTROL ASSEMBLY

0740-779 *Not a Service Part **Not Illustrated

1 1602-450 1 Brake Assembly (inc. 2-14) 2 0702-644 1 ‹ Lever, Brake 3 1623-027 1 ‹ Screw, Lever Mounting 4 0623-056 1 ‹ Nut, Lock 5 0602-740 1 ‹ Reservoir 6 0602-741 1 ‹ Gasket, Cover 7 0602-742 1 ‹ Cover, Reservoir 8 0623-506 2 ‹ Screw, Cover 9 0623-613 2 ‹ Screw, Machine 10 0602-587 1 ‹ O-Ring 11 * 1 ‹ Master Cylinder 12 8052-212 2 ‹ Washer, Lock - Internal Tooth 13 0623-432 2 ‹ Screw, Master Cylinder Mounting 14 0602-907 1 ‹ Clamp, Master Cylinder ** 0638-315 AR Fluid, Brake - High Temperature 15 0609-629 1 Switch, Dimmer/Brakelight 16 0609-637 1 Spring Assembly, Dimmer/Brakelight 17 1602-643 1 Brakeline, Hydraulic
