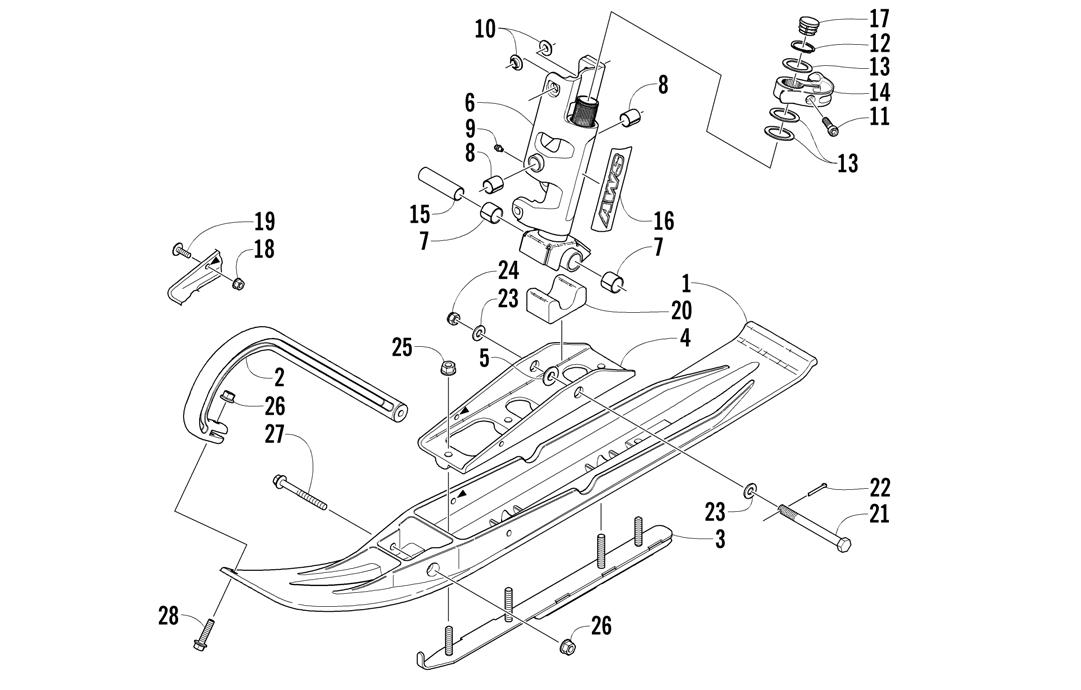

SKI AND SPINDLE ASSEMBLY

0740-542

1 1703-109 2 Ski, Plastic - Black 2 0603-624 2 Handle, Plastic - Black 3 2603-456 1 Wearbar - Right 2603-457 1 Wearbar - Left 4 1703-501 2 Saddle, Ski - Platinum (inc. 5) 5 0603-621 4 ‹ Insert, Ski Saddle 6 1703-720 1 Spindle, Steering - Right - Platinum (inc. 7-14) 1703-721 1 Spindle, Steering - Left - Platinum (inc. 7-14) 7 0603-158 4 ‹ Bearing 8 0603-083 4 ‹ Bearing 9 1623-010 2 ‹ Fitting, Grease 10 0603-647 4 ‹ Insert, Spindle 11 8005-584 2 ‹ Screw, Cap 12 0623-796 2 ‹ Ring, Retaining 13 1603-203 6 ‹ Washer, Thrust 14 1703-413 2 ‹ Arm, Steering 15 2603-548 2 Axle, Spindle 16 6611-958 2 Decal, “AWS” - Spindle 17 0623-831 2 Cap, Spindle 18 8048-366 4 Nut, Lock 19 8017-581 4 Screw, Machine 20 0603-036 2 Damper, Ski 21 0623-552 2 Screw, Cap 22 0123-458 2 Pin, Cotter 23 0623-728 4 Washer 24 0123-296 2 Nut, Lock 25 8047-486 8 Nut, Lock 26 8048-426 4 Nut, Lock 27 8020-143 2 Screw, Cap 28 8020-135 2 Screw, Cap
