9 STREETS SHIPRA COMMERCIAL, GHAZIABAD

Internship at Sanjay Puri Architects

Programmes - A commercial mall, experience center

‘Architecture is the learned game, correct and magnificent, of forms assembled in the light.’

9 streets is an extension of existing shipra mall. courtyards are organically created within the mall which create funnel effect, thus ensuring ample ventilation. Within the mall, a key attraction is an experience center which is a kiosk tastfully designed with reference to the 9 street malls angular design profile.

Roles and responsibilities : As a part of the project, my responsibilities included preparing designing options for boundary wall of the mall, the kiosk and its roof. Various customized details were made to make the construction process easier. I also worked on the extensive 3D model of the 9 streets mall as a part of the team.

NOTE: PERGOLA SIZE ARE INDICATIVE

4mm plate welded at the main supporting member

4mm plate welded at the main supporting member

4mm plate to join the box profile with screw

4mm plate welded at the main supporting member

4mm plate to join the box profile with screw Aluminium box profile 50 x 50mm

4mm plate to join the box profile with screw Aluminium box profile 50 x 50mm

Section through aluminium profile Plan through aluminium profile

4mm plate welded at the main supporting member

4mm plate to join the box profile with screw plate to join the box profile with screw plate welded at the main supporting member

Section A

Section A

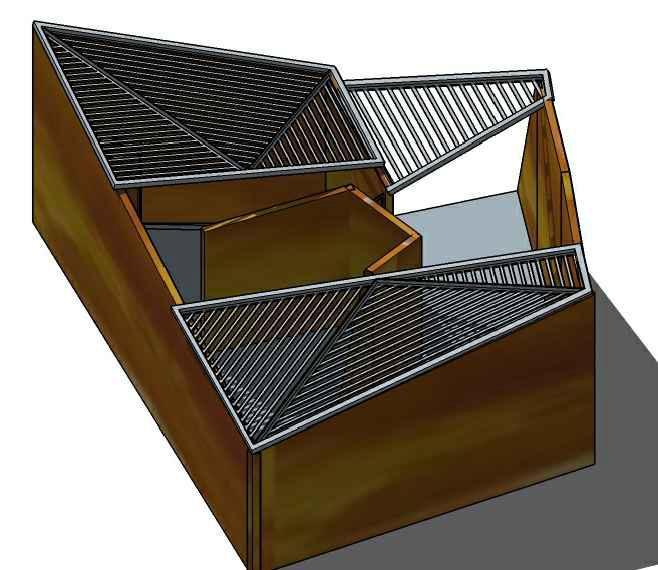

Roof plan of the kiosk showcasing wooden pergola
