Kiruna Wagon's Side Dumper

• Sealed transport • Left and right discharge • Robust and cost-effective unloader • Handles sticky materials Commodities: Pellets, concentrate, hazardous materials Discharge rate: Up to 1,500 tonnes per hour and station Payload to tare ratio: 2.7

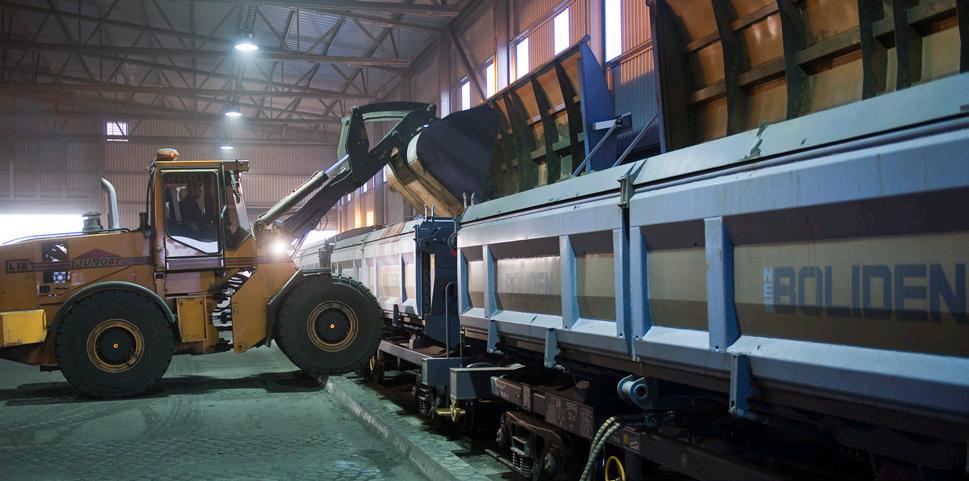

TAIMN 091 built for Boliden, transports copper concentrate from the Aitik mine to the smelter in Rönnskär.

RELIABLE SIDE TIPPING The Side Dumper is equipped with a roof and optimised for sealed transport of hazardous materials and/or highly refined and valuable ore products in smaller volumes.

WATCH OUR PRODUCT VIDEOS ON YOUTUBE youtube.com/kirunawagon

The 4-axle bogie wagon measures just over twelve metres and has a carrying capacity of 73 tonnes.

The Side Dumper can handle sticky materials and is designed for loading and discharge from both the left and right side.

Rail Freight Systems & Services

FOLLOW KIRUNA WAGON ON SOCIAL MEDIA @kirunawagon

KIRUNAWAGON.COM

to be easily unhitched and replaced. High-strength steel is used in framework, profiles and frames for minimised tare weight.

in correct position whereby external lifters connect to the body and tip it to an angle of 55 degrees.

The wagon is optimised for easy replacement of wear components such as links, bushings and rubber seals. Also larger parts, such as hatches, are constructed

With the goal of making the Side Dumper as production-friendly as possible, the chassis is designed with a central girder. During discharge, the wagon is locked

The wagon can be reclassified with supplemented calculations/ simulations to handle a speed of up to 100 km/h when fully loaded.

SD 25/8

Max axle load

25 tonnes

Line load

8 tonnes

Number of axles

4

Wagon length

12 500 mm

Gauge

1435 mm

Tare weight

27 tonnes

Loading volume

40.5 m³

Length between bogie centres

7500 mm

Wheel base

1727 mm

Coupler height

1040 mm

Calculated technical lifespan

20 years in reg. op.

Temperature interval

-40 to +60 °C

Unloading capacity/h and station

1500 tonnes/h

11050

KIRUNA WAGON

Specifications

2008-11-14 (Inventor 2009)

The Side Dumper is designed for efficient and secure transport, maximum productivity and easy maintenance.

MAIN MEASUREMENT EXAMPLES SD 25/8, Boliden, Sweden.

7500 12500 11050

Denna ritning är KIRUNA WAGON:s egendom och får icke delgivas tredje man, kopieras, mångfaldigas eller på annat sätt utnyttjas utan bolaget medgivande.

A ( 1 : 20 ) A

1435

7500

01

Uppdaterad

2010-01-13

JEU

FK

ÅF

Rev

Ändring

Datum

Inf av

Godk

Företag

3176

12500 1 : 20 ) A

Rail Freight Systems & Services 1 14 13 12 11 10 9 8 7 6 5

1 1 1 1 1 1 1 1 1 1 1

TP. TIPPAD 55 gr. LASTAD TP. TIPPAD 30 gr. LASTAD TP. TIPPAD 55 gr. TOM TP. OLASTAD OCH LASTAD MOT LASTPROFIL A LOSSNING TIPPNING 55 gr.

LASTN.POS. TAK ÖPPET TVÄRSEKTIONER LÄNGDSEKTIONER TAK

KIRUNAWAGON.COM KW400001 KW100010 KW100009 KW100008 KW100007 KW100006 KW100005 KW100004 KW100003 KW100002 KW300090

15620

1202

• Low-cost investment • Low-cost maintenance • High availability Commodities: Pellets, concentrate, hazardous materials Discharge rate: Up to 1,500 tonnes per hour and station Payload to tare ratio: 2.7

• Supports roofed wagons • Fully remote controlled

A PROVEN SYSTEM The Side Dumper Unloading Station unloads up to 20 wagons per hour. The Unloading Station has a simple design and offers a good overall economy.

WATCH OUR PRODUCT VIDEOS ON YOUTUBE youtube.com/kirunawagon

The wagons can discharge to both left and right and be loaded from both sides. To ensure a complete emptying of the wagons, the robust Side Dumper Unloading Station is equipped with a vibrator. This low-cost system is proven in a subarctic climate.

FOLLOW KIRUNA WAGON ON SOCIAL MEDIA @kirunawagon

Rail Freight Systems & Services

KIRUNAWAGON.COM

The Side Dumper Unloading Station comes with a complete program for installation, training and maintenance.

During discharge, mechanical arms position the wagon and hold the chassis while tipping the body to an angle of 55 degrees.

In case of a power failure during

operation, the Unloading Station will stop and retain its grip of the body.

For optimal productivity and personal safety, the unloading process is operated completely by handheld remote control. A limited number of wear parts ensures swift maintenance.

Principle drawings for the groundworks are provided and the installation is performed

by Kiruna Wagon, who also supervises the start-up process and trains the operators.

The Side Dumper Unloading Station is compatible with all common loading gauges.

Unloading capacity per station

1500 tonnes/h

Required positioning accuracy

+/- 75 mm

Working temperature

-40 to +60˚C

Electrical power required

70 kW

Loading gauge

All common

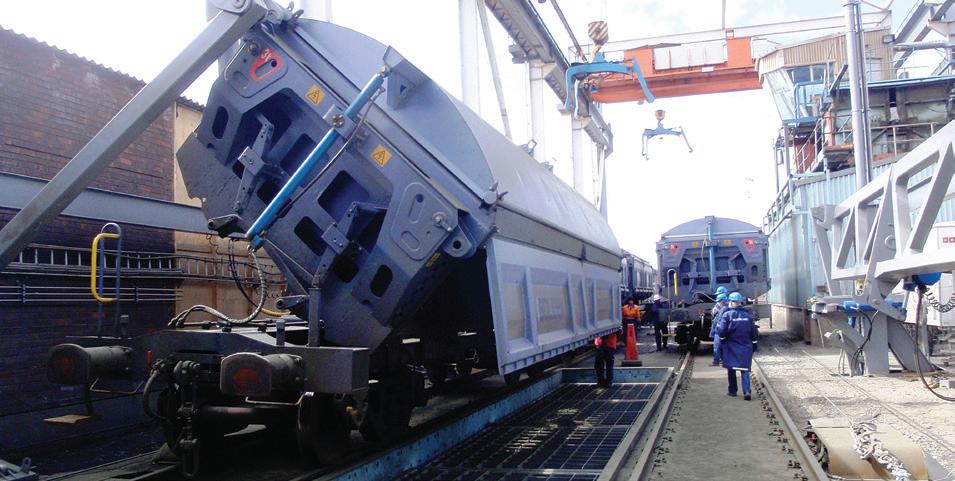

SD Unloading Station operating at the Boliden smelter in Rönnskär, Sweden.

MAIN MEASUREMENT EXAMPLES

1610

1300

7658

11470
