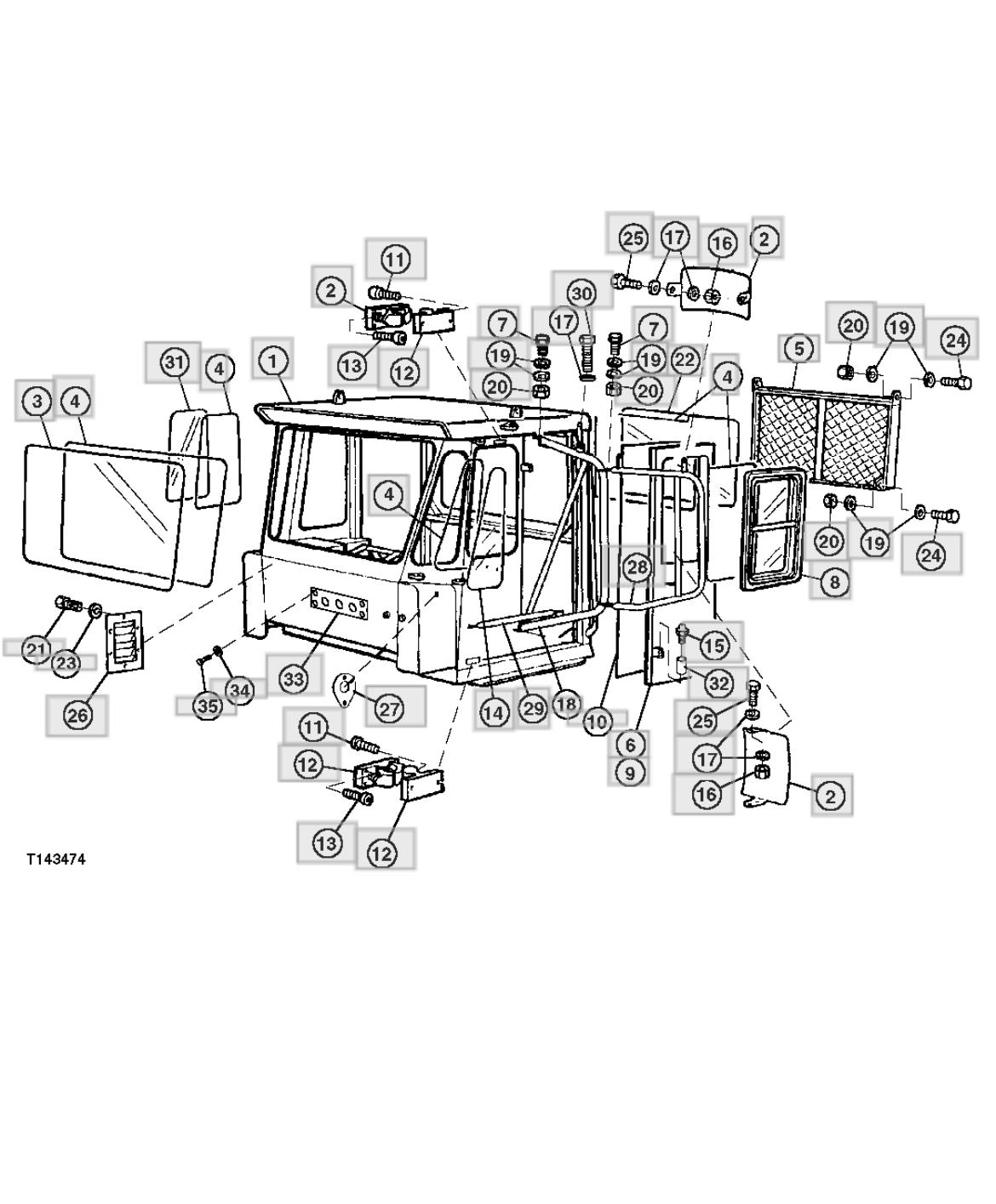

1 - Cab 1
Part Number :
Supported Models : B35C, B40C
Remarks : CAB SHELL AT253410 NLA
1 - Cab 1
Part Number : .......
Supported Models : B35C, B40C
Remarks : COMPLETE CAB AT191346 NLA
1 - Cab 1
Part Number : AT261411
Supported Models : B35C, B40C
Remarks : CAB SHELL (CONVENIENCE ASSEMBLY)(MK 2)
2 - Rear View Mirror 4
Part Number : AT322444
Supported Models : B35C, B40C
Remarks : NLA; (SUB FOR AT253712)
3 - Windowpane 1
Part Number : AT260383
Supported Models : B35C, B40C
Remarks : FRONT WINDSHIELD
4 - Isolator 1
Part Number : T71383
Supported Models : B35C, B40C
Remarks : CUT TO LENGTH ( AT253000 IS NO LONGER AVAILABLE)
5 - Window Guard, Rear 1
Part Number : AT253462
Supported Models : B35C, B40C
Remarks : REAR WINDOW (MK I)
5 - Guard 1
Part Number : AT261396
Supported Models : B35C, B40C
Remarks : REAR WINDOW (MK II)
6 - Door 1
Part
Part Number : AT253436
Supported Models : B35C, B40C
Remarks : L.H.(MK I)
6 - Hinge 1
Part Number : .......
Supported Models : B35C, B40C
Remarks : (MAKE FROM AT252524, SEE DTAC SOLUTION 70228)
6 - Door 1
Part Number : AT261398
Supported Models : B35C, B40C
Remarks : L.H.(MK II)
6 - Hinge 1
Part Number :
Supported Models : B35C, B40C
Remarks : (MAKE FROM AT252524, SEE DTAC SOLUTION 70228)
7 - Hexagonal Head Screw, M12 X 35 8
Part Number : 19M7403
Supported Models : B35C, B40C
Remarks : M12 X 35
8 - Window 2
Part Number : AT252545
Supported Models : B35C, B40C
Remarks : SLIDING SLIDE
9 - Door 1
Part Number : AT253435
Supported Models : B35C, B40C
Remarks : RH (MK I)
9 - Hinge 1
Part Number : .......
Supported Models : B35C, B40C
Remarks : (MAKE FROM AT252524, SEE DTAC SOLUTON 70228)
9 - Door 1
Part Number : AT261397
Part Quantity Required
Supported Models : B35C, B40C
Remarks : R.H.(MK II)
9 - Hinge 1
Part Number :
Supported Models : B35C, B40C
Remarks : (MAKE FROM AT252524, SEE DTAC SOLUTION 70228)
10 - Weatherstrip 1
Part Number : T58341
Supported Models : B35C, B40C
Remarks : CUT TO LENGTH ( AT253579 NO LONGER AVAIBALE)
11 - Countersunk Head Screw, M6 X 16 8
Part Number : 19M8826
Supported Models : B35C, B40C
Remarks : M6 X 16
12 - Retainer 4
Part Number : AT253617
Supported Models : B35C, B40C
Remarks : NLA
13 - Screw 16
Part Number : TH101139
Supported Models : B35C, B40C
Remarks : (MK I), (SUB FOR AT258209)
This part has been substituted.
13 - Countersunk Head Screw, M6 X 16 8
Part Number : 19M8826
Supported Models : B35C, B40C
Remarks : M6 X 16, (MK II)
14 - Windowpane 2
Part Number : AT260385
Supported Models : B35C, B40C
Remarks : FRONT SIDE GLASS
15 - Straight Lubrication Fitting 4
Part Number : TH100074
Remarks : MIRROR SUPPORT (MK I)
29 - Bracket 4
Part Number : AT261399
Supported Models : B35C, B40C
Remarks : MIRROR SUPPORT (MK II)
30 - Hexagonal Head Screw, M10 X 20 4
Part Number : 19M7166
Supported Models : B35C, B40C
Remarks : M10 X 20
31 - Windowpane 2
Part Number : AT260384
Supported Models : B35C, B40C
Remarks : SIDE WINDOW
32 - Pin 4
Part Number : AT192520
Supported Models : B35C, B40C
Remarks : (MACHINE MODEL B35C NO. 409855.00 ONLY) (MACHINE MODEL B40C NO. 409844.00 ONLY)
33 - Bracket 1
Part Number : AT253394
Supported Models : B35C, B40C
Remarks : MK I ONLY
34 - Round Hole Washer 8
Part Number : 24M7055
Supported Models : B35C, B40C
Remarks : 8.400 X 16 X 1.600 mm, MK I ONLY, (SUB FOR 24M7132)
35 - Hexagonal Head Screw, M8 X 20 8
Part Number : 19M7139
Supported Models : B35C, B40C
Remarks : M8 X 20, MK I ONLY

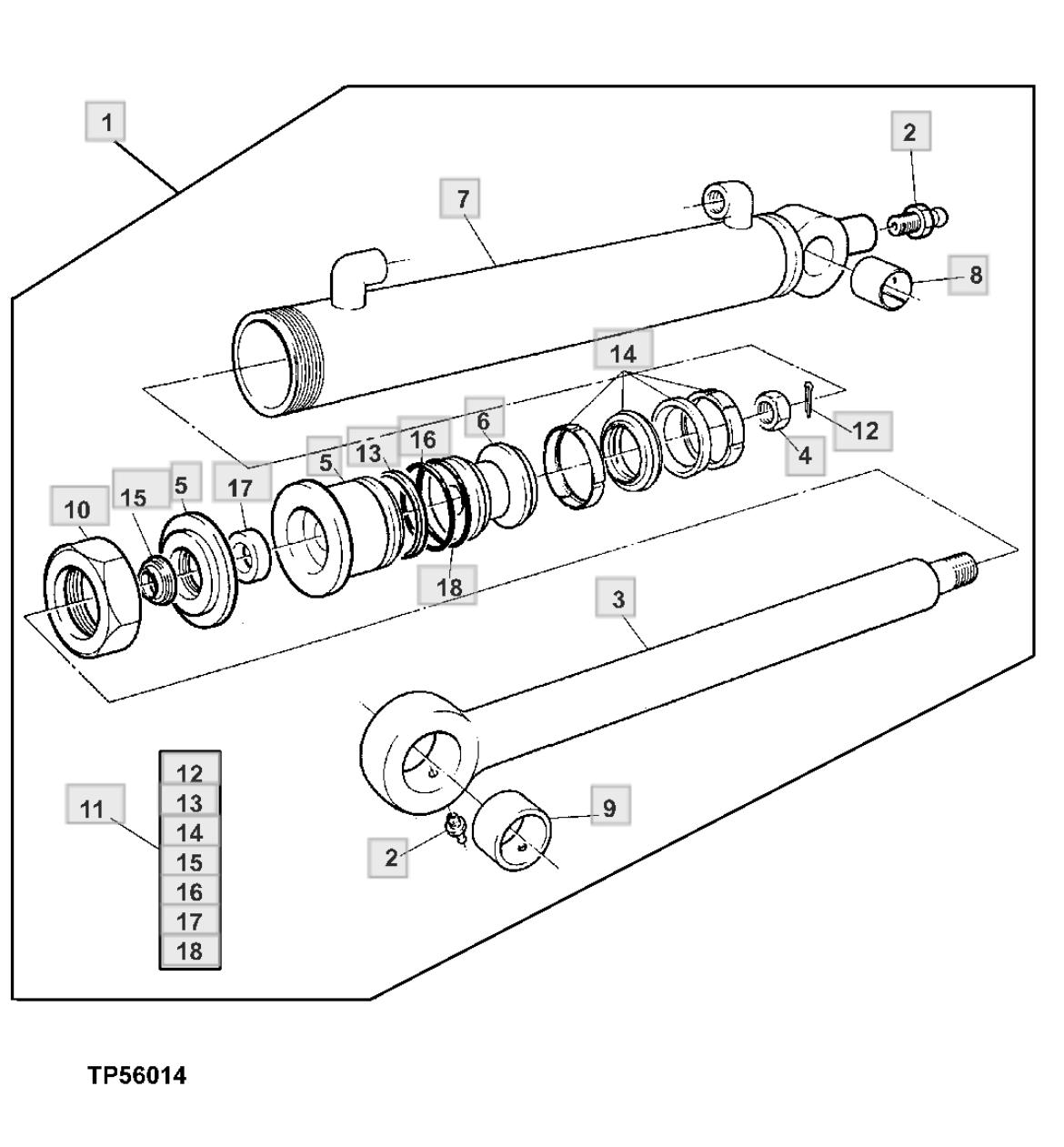

1 - Hydraulic Cylinder 1
Part Number : AT253957
Supported Models : B35C, B40C
Remarks : CAB TILT
2 - Straight Lubrication Fitting 2 Part Number : JD7759
Supported Models : B35C, B40C
Remarks : (SUB FOR AT252686)
3 - Rod 1
Part Number : AT253503
Supported Models : B35C, B40C
4 - Hexagonal Slotted Nut, M16 1
Part Number : 14M7185
Supported Models : B35C, B40C
Remarks : M16
5 - Hydr. Cylinder Rod Guide 1
Part Number : AT253358
Supported Models : B35C, B40C
6 - Piston 1
Part Number : AT253367
Supported Models : B35C, B40C
7 - Hydraulic Cylinder Barrel 1
Part Number : AT253510
Supported Models : B35C, B40C
8 - Bushing 1
Part Number : AT253335
Supported Models : B35C, B40C
9 - Bushing 1
Part Number : AT253334
Supported Models : B35C, B40C
10 - Nut 1
Part Number : AT253357
Part Quantity Required
Supported Models : B35C, B40C
11 - Hydraulic Cylinder Kit 1
Part Number : AT253320
Supported Models : B35C, B40C
12 - Cotter Pin 1
Part Number : 11M7083
Supported Models : B35C, B40C
Remarks : 3.200 X 50 mm
13 - Back-Up Ring 1
Part Number :
Supported Models : B35C, B40C
14 - Seal 1
Part Number : .......
Supported Models : B35C, B40C
15 - Seal 1
Part Number : .......
Supported Models : B35C, B40C
16 - O-Ring 1
Part Number : R98459
Supported Models : B35C, B40C
17 - Seal 1 Part Number : .......
Supported Models : B35C, B40C
18 - O-Ring 1
Part Number : A3190R
Supported Models : B35C, B40C
