1 - Tool 1
Part Number :
Remarks : (AT254749 NLA)
1 - Special Service Tool 1
Part Number :
Remarks : CHAIN WRENCH, OSCILLATION LOCK NUT (NOT ILLUSTRATED)(AT255264 NLA)
2 - Seat 1
Part Number : ........
Remarks : (AT254757 NLA) Vinyl
2 - Seat 1
Part Number :
Remarks : (AT254756 NLA) Cloth
3 - Screw 4
Part Number : 19M7995
Remarks : M8 X 12 (SUB FOR AT258189)
4 - Instrument Panel 1
Part Number : AT254473
5 - Rivet 8 Part Number : L62035
6 - Serial Number Plate 1 Part Number : AT254417
7 - Hanger 2 Part Number :
Remarks : ( AT158194 NO LONGER AVAILABLE)
7 - Wing Nut 2 Part Number : 14M7020
Remarks : M8 (SUB FOR AT258191)
8 - Plate 1
Part Number : AT254301
Remarks : SEAT, RH 9 - Plate 1
Part Number : AT254327
Remarks : SEAT, MOUNTING
- Cap Screw
Number : 19M7139 Remarks : M8 X 20
- Plate
Part Number : AT254300 Remarks : SEAT, LH
- Clamp
Number : AT252335 13 - Lamp 1
Number : AT255438 Remarks : INTERIOR
- Washer
Number : 24M7055
Remarks : 8.400 X 16 X 1.600 mm (SUB FOR 24M7132)
Number : 19M8439
: M8 X 25
- Lock Nut
Number : 14M7327
Number : AT254302 19 - Serial Number Plate
Number : AT254499
- Control Lever
Part Quantity Required
Part Number : AT254800
22 - Microprocessor 1
Part Number : AT254801
23 - Screw 3
Part Number : 21M7200
Remarks : M5 X 20 (SUB FOR AT258196)
24 - Lens 2
Part Number : AT254484
Remarks : STOP
25 - Pedal 1
Part Number : AT255257
26 - Hand Operated Valve 1
Part Number : TT210775
Remarks : (SUB FOR AT253799)
27 - Ashtray 1
Part Number : AT252606
28 - Electrical Lighter 1 Part Number : AT252605
29 - Label 1 Part Number : AT253780

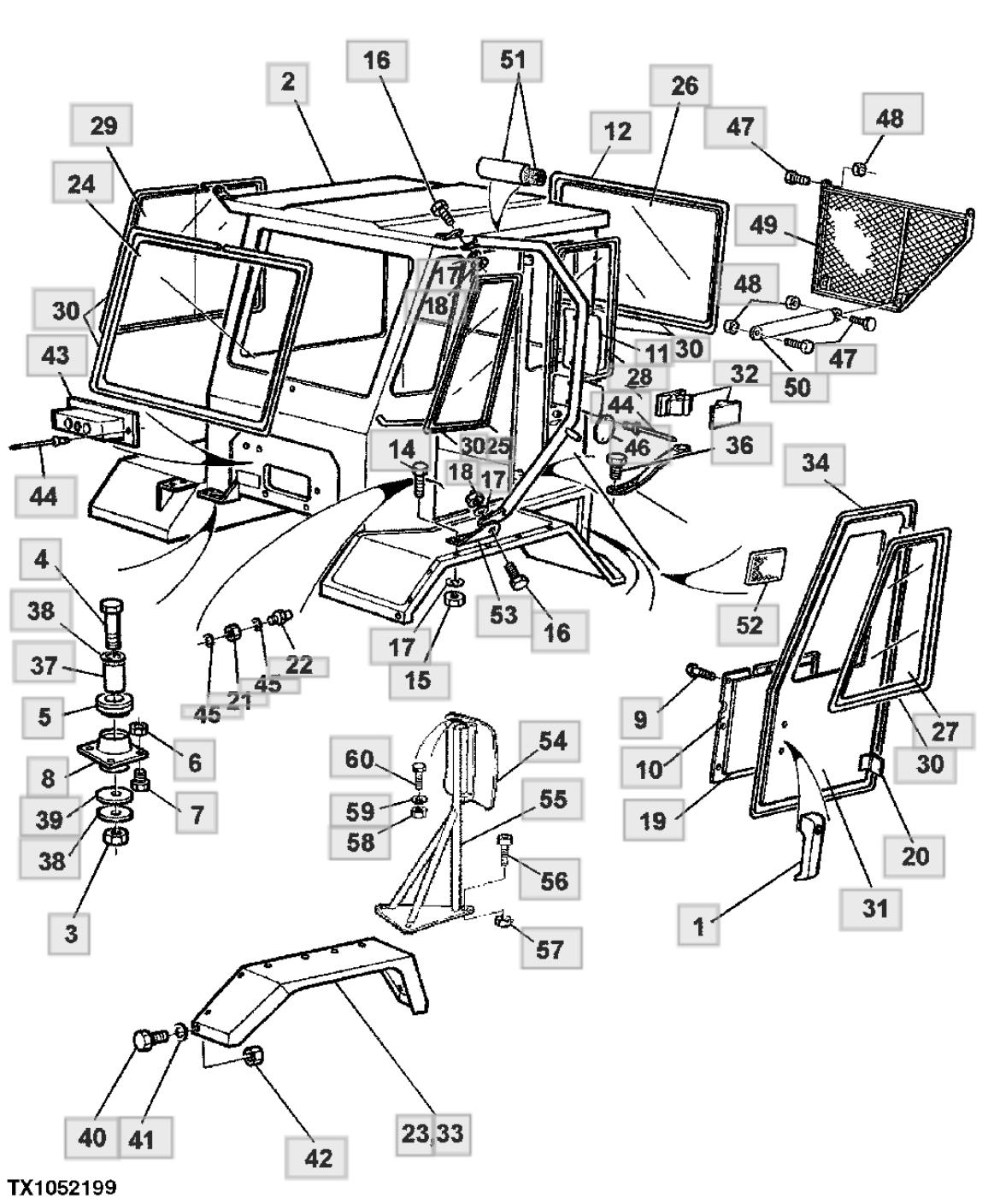

1 - Latch
2 - Cab 1 Part Number :
Remarks : COMPLETE CAB AT254304 NLA, AT260842 NLA 2 - Cab 1 Part Number : TT321196
Remarks : CAB SHELL (CA)
3 - Lock Nut
Part Number : 14M7328 Remarks : M16
4 - Cap Screw
Part Number : 19M7941
Remarks : M16 X 120 (SUB FOR AT258586)
5 - Isolator
Part Number : AT254528
6 - Lock Nut
Part Number : 14M7520 Remarks : M10
7 - Cap Screw
Part Number : 19M7168
Remarks : M10 X 30
8 - Isolator
Part Number : AT255135
8 - Isolator
Part Number : AT260689
9 - Screw 1 Part Number : ........ 10 - Panel
Number : ........
11 - Rear View Mirror 2
Part Number : AT322444
Remarks : (SUB FOR AT253712)
12 - Bracket 2 Part Number : AT255092
Remarks : MIRROR
14 - Cap Screw 4 Part Number : 19M8020
Remarks : M16 X 100 (SUB FOR AT258469)
15 - Lock Nut 4 Part Number : 14M7327
Remarks : M8
16 - Cap Screw 4 Part Number : 19M7407
Remarks : M8 X 25
17 - Washer
Part Number : 24M7433
Remarks : 10.500 X 20 X 2 mm 18 - Lock Nut
Number : 14M7327
Remarks : M8 19 - Insulator 1
Number : AT254436 20 - Hinge 2 Part Number : AT252524
20 - Pin 2 Part Number : AT192520
Remarks : (MACHINE MODEL NO. 476832 ONLY) 21 - Lock Nut 1 Part Number : 14M7313
Remarks : M12
Part Number : AT254257
23 - Fender 1
Part Number : AT255121
24 - Windowpane 1 Part Number : AT252577
Remarks : WINDSCREEN
25 - Windowpane 2 Part Number : AT252576
Remarks : SIDE FRONT
26 - Windowpane 1
Part Number : AT252578
Remarks : REAR
27 - Windowpane 1
Part Number : AT252579
Remarks : DOOR
28 - Window 1 Part Number : AT252545
29 - Window 1 Part Number : AT252590
30 - Isolator 1 Part Number : T71383
Remarks : CUT TO LENGTH ( AT253000 IS NO LONGER AVAILABLE)
31 - Door 1 Part Number : AT252390
32 - Retainer 1 Part Number : AT253617
33 - Fender 1 Part Number : AT255120 Remarks : (MUDGUARD EXTENSION, RH)
34 - Weatherstrip 1
Part Number : T58341
Remarks : (CUT TO LENGTH) ( AT253579 NO LONGER AVAILABLE)
Part Number : 14M7327
Remarks : M8
59 - Washer 4
Part Number : 24M7055
Remarks : 8.400 X 16 X 1.600 mm
60 - Cap Screw 4
Part Number : 19M7407
Remarks : M8 X 25
