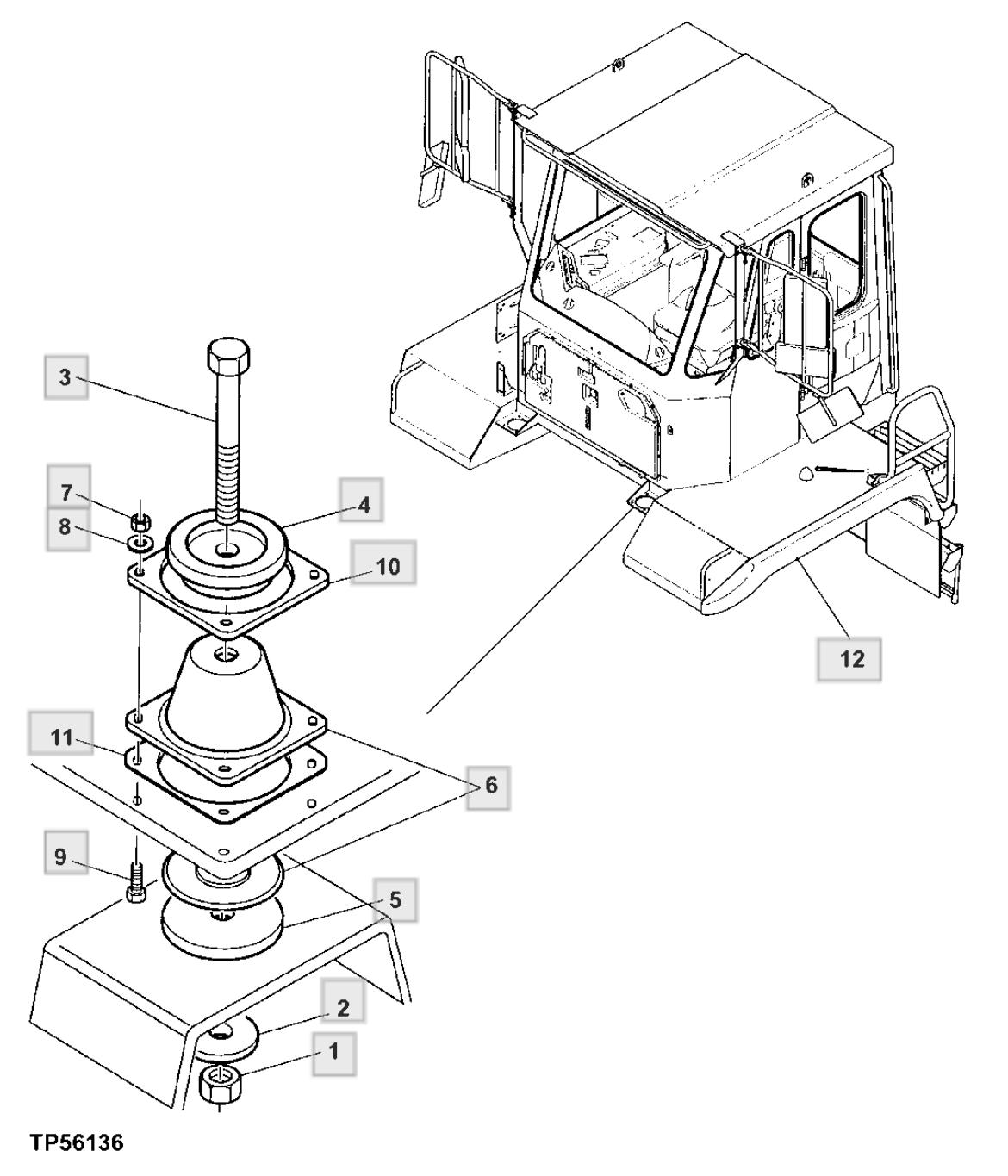

1 - Hexagonal Lock Nut, M20
Part Number : 14M7410
Remarks : M20
2 - Round Hole Washer 4 Part Number : 24H1392
Remarks : 25/32" X 1-3/8" X 0.120", (SUB FOR AT260585)
3 - Hexagonal Head Screw, M20 X 150 4 Part Number : 19M7621
Remarks : M20 X 150
4 - Spacer
Number : AT252424
5 - Washer
6 - Cab Mounting Isolator
7 - Hexagonal Lock Nut, M10
Number : 14M7517 Remarks : M10 8 - Round Hole Washer
Part Number : 24M7433
Remarks : 10.500 X 20 X 2 mm
9 - Hexagonal Head Screw, M10 X 40 4 Part Number : 19M8637
Remarks : M10 X 40 10 - Spacer
- Shim
Part Number :
Remarks : (COMPLETE CAB) (TT320109 NLA)
12 - Cab 1
Part Number : TT321198
Remarks : CAB SHELL
1 - Door 1
Part Number : AT259670
2 - Isolator 1
Part Number : AT260809
Remarks : 4 mm , (REQUIRED)
This part has been substituted.
3 - Hinge 2
Part Number : AT259695
4 - Hexagonal Head Screw, M5 X 20 2 Part Number : 19M7373
Remarks : M5 X 20
5 - Spring Locking Pin 1
Part Number : T122370
6 - Lock Nut
Part Number : AT260694
7 - Hexagonal Head Screw, M10 X 50 4
Part Number : 19M8600
Remarks : M10 X 50, (SUB FOR AT257867)
8 - Round Hole Washer 8
Part Number : 24M7433
Remarks : 10.500 X 20 X 2 mm
9 - Pin 2
Part Number : AT192520
Number :
- Bracket
Number : AT259653 9 - Hexagonal Head Screw, M6 X 16
Number : 19M7560 Remarks : M6 X 16
- Round Hole Washer
Number : 14M7528
: M6
- Hexagonal Head Screw, M10 X 100
Number : 19M7668
: M10 X 100
- Round Hole Washer
Number : 24M7433
: 10.500 X 20 X 2 mm
Number : AT259651
Part Quantity Required
Remarks : (MACHINE NO. -49832.01)
14 - Bracket 2
Part Number : AT262924
Remarks : (MACHINE NO. 49932.01- )
15 - Spring 2
Part Number : AT259694
16 - Hexagonal Lock Nut, M10 4 Part Number : 14M7520
Remarks : M10
17 - Hexagonal Head Screw, M8 X 25 12
Part Number : 19M7407
Remarks : M8 X 25
18 - Round Hole Washer 24
Part Number : 24M7055
Remarks : 8.400 X 16 X 1.600 mm, (SUB FOR 24M7132)
19 - Hexagonal Lock Nut, M8 12
Part Number : 14M7327
Remarks : M8
1 - Right Side Handle 1
Part Number : AT119627
Remarks : (SUB FOR AT253598)

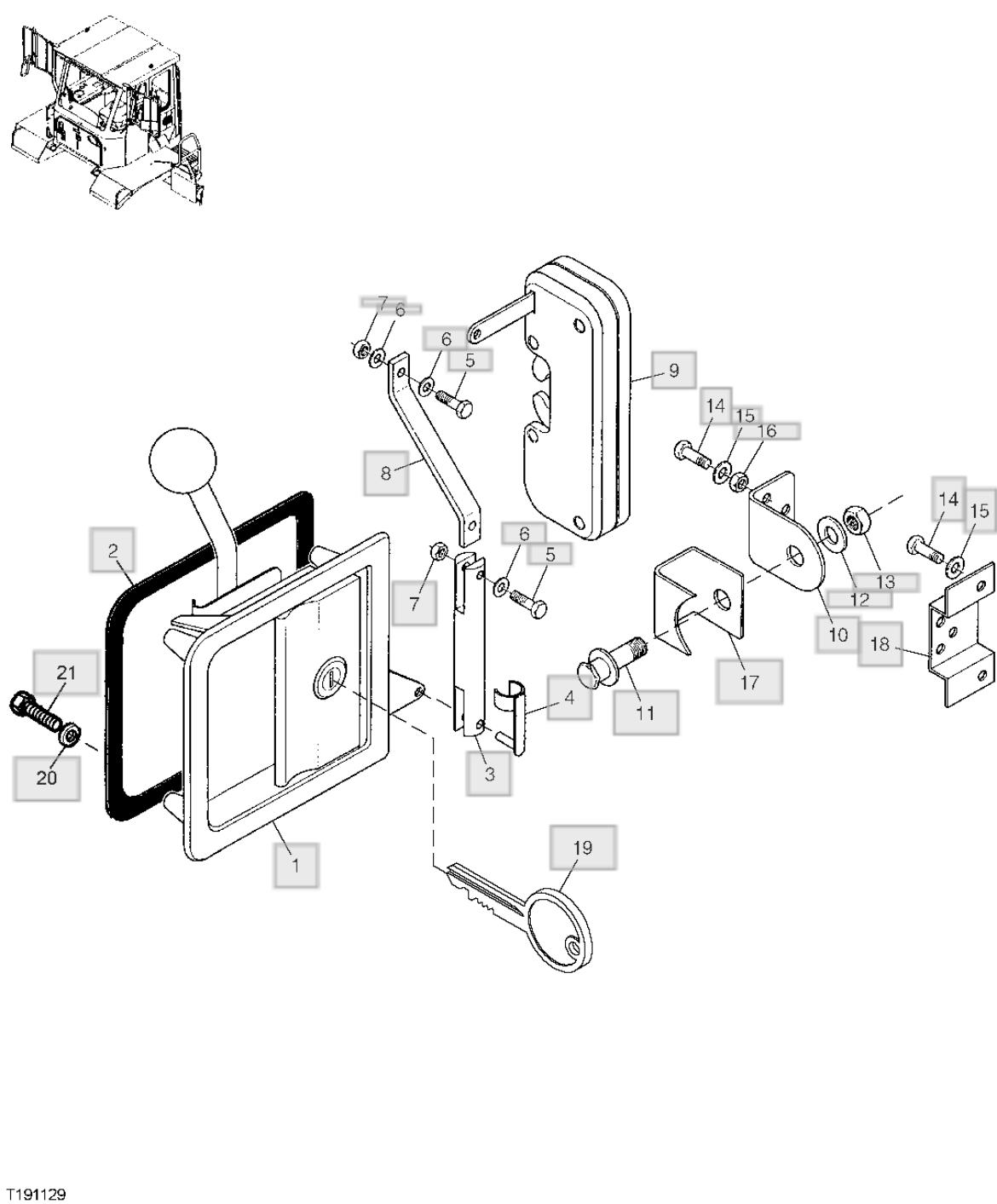

1 - Cover 1
Part Number : TT226784
Remarks : (CAB DOOR INSIDE LATCH COVER) (NOT ILLUSTRATED)
2 - Door Latch Gasket 1
Part Number : T186245
Remarks : (SUB FOR AT253596)
3 - Door Link 1
Part Number : T122369
4 - Spring Locking Pin 1
Part Number : T122370
5 - Hexagonal Head Screw, M5 X 20 2
Part Number : 19M7373
Remarks : M5 X 20
6 - Round Hole Washer 4
Part Number : 24M7027
Remarks : 5.300 X 10 X 1 mm
7 - Hexagonal Lock Nut, M5 2
Part Number : 14M7360
Remarks : M5
8 - Link 1
Part Number : AT259655
9 - Cab Door Latch 1
Part Number : TT207366
Remarks : (SUB FOR AT253600)
10 - Plate
Part Number : AT259656
11 - Side Shield Striker
Part Number : AR91896 12 - Round Hole Washer
Part Number : 24M7429
Remarks : 13 X 24 X 2.500 mm
13 - Hexagonal Lock Nut, 11.125 mm (7/16") 1
Part Number : K40006
14 - Hexagonal Head Screw, M8 X 20 2
Part Number : 19M7139
Remarks : M8 X 20
15 - Round Hole Washer 2
Part Number : 24M7055
Remarks : 8.400 X 16 X 1.600 mm, (SUB FOR 24M7132)
16 - Hexagonal Lock Nut, M8 2
Part Number : 14M7327
Remarks : M8
17 - Guard 1
Part Number : T135583
Remarks : (SUB FOR AT259753)
18 - Bracket 1
Part Number : AT259641
19 - Key 1
Part Number : T185375
Remarks : (CAB DOOR)
20 - Round Hole Washer 4
Part Number : 24M7027
Remarks : 5.300 X 10 X 1 mm
21 - Cap Screw 4
Part Number : AT258630
