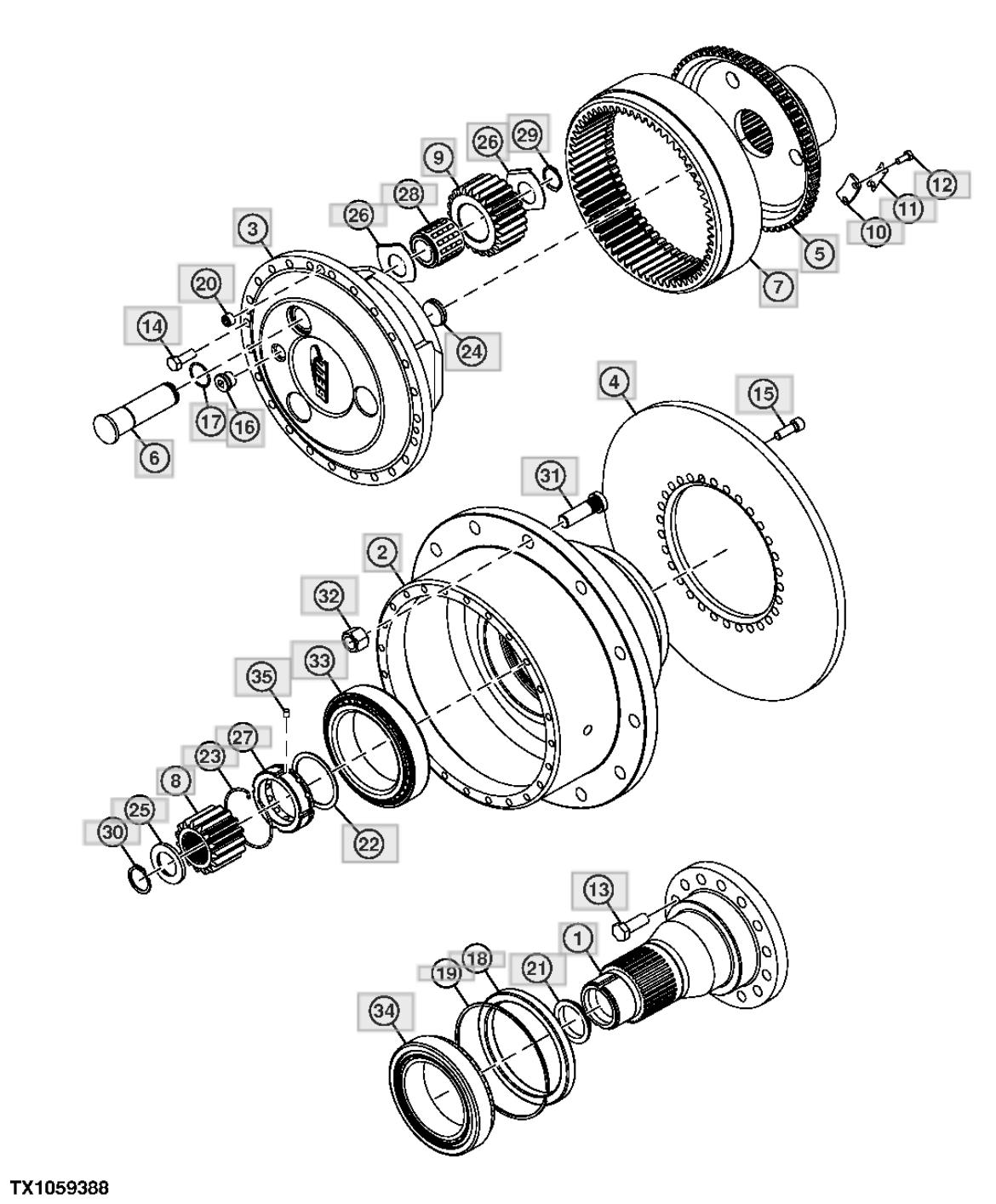

1 - Stub Axle Spindle 1
Part Number : AT252292
2 - Planetary Hub Housing 1 Part Number : AT252309
2 - Pipe Plug 1 Part Number : 15H666
Remarks : 3/8", Drain Hole
3 - Planet Pinion Carrier 1 Part Number : AT252484
Remarks : SUB FOR AT252312
4 - Brake Rotor 1
Part Number : T310162
5 - Axle Planetary Hub Ring Gear 1 Part Number : AT252310
6 - Pin Fastener 3
Part Number : AT252314
7 - Planetary Hub Ring Gear 1 Part Number : AT193069
8 - Sun Gear 1 Part Number : AT193068
Remarks : 30 Splines, SUB FOR AT255477
8 - Sun Gear 1 Part Number : TT207061A
Remarks : 36 Splines
9 - Planet Pinion 3 Part Number : AT252656
Remarks : NLA, ORDER AT193069 AND AT193070 This part has been substituted.
9 - Planetary Hub Planet Pinion 1 Part Number : AT193070
10 - Retainer 4
Part Number : AT260340
11 - Lock Plate 4
Part Number : AT252281
12 - Hexagonal Head Cap Screw, 5/16" X 3/4" 8
Part Number : 19H2551
Remarks : 5/16" X 3/4"
13 - Hexagonal Head Screw, 5/8" X 1-3/4" 14
Part Number : 19H2586
Remarks : 5/8" X 1-3/4"
14 - Hexagonal Head Screw, M12 X 35 24
Part Number : 19M7403
Remarks : M12 X 35
15 - Cylindrical Head Screw, M12 X 35 30
Part Number : 19M8704
Remarks : M12 X 35
16 - Socket Plug 1
Part Number : TT207676
16 - O-Ring 1 Part Number : TT140662
17 - O-Ring 3 Part Number : H35256
18 - Seal 1 Part Number : AT252259
19 - Snap Ring 1 Part Number : AT252566
20 - Pipe Plug 1
Part Number : 15H666
Remarks : 3/8"
21 - Thrust Ring 1 Part Number : AT252297
22 - Washer 1
Part Number : AT252481
23 - Snap Ring 1
Part Number : AT252325
24 - Plug 4
Part Number : AT252273
25 - Ring 1
Part Number : AT252272
26 - Shim 6
Part Number : AT252271
27 - Lock Nut 1
Part Number : AT252276
28 - Cylindrical Roller Bearing 3
Part Number : TT150242
Remarks : Cup and Bearing, NLA; ORDER AT509630
This part has been substituted.
28 - Cylindrical Roller Bearing 1
Part Number : AT499406
Remarks : Cup and Bearing, ORDER AT509630
This part has been substituted.
28 - Cylindrical Roller Bearing 1
Part Number : AT509630
Remarks : Cup and Bearing
29 - Snap Ring 3
Part Number : AT252734
This part has been substituted.
30 - Snap Ring 1
Part Number : AT252558
This part has been substituted.
31 - Stud 12
Part Number : AT252166
32 - Nut 12
Part Number : AT258526
33 - Tapered Roller Bearing Cone 1
Part Number : JD9072
33 - Tapered Roller Bearing Cup 1
Part Number : JD9129
34 - Tapered Roller Bearing 1
Part Number : AT133899
35 - Needle Roller 1
Part Number : AT252265

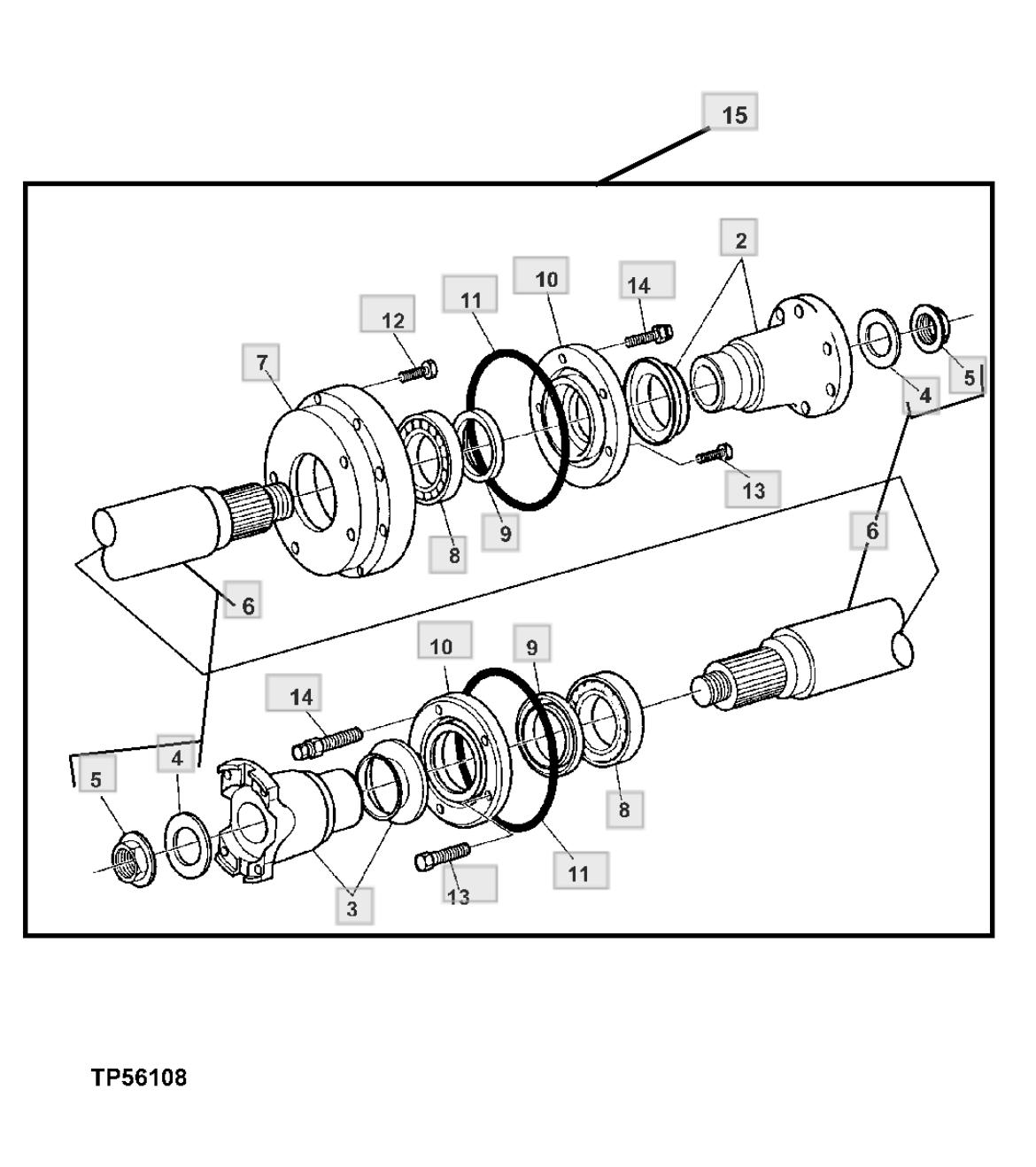

2 - Mid Axle Drive Shaft Flange 1
Part Number : TT190958
Remarks : (SUB FOR AT252631)7C
3 - Mid Axle Drive Shaft Flange 1 Part Number : TT190957
Remarks : (SUB FOR AT252630)8.5C
4 - Washer 2 Part Number : AT255375
5 - Nut 2 Part Number : AT258546
6 - Shaft 1 Part Number : AT252322
7 - Bearing Housing 1
Part Number : AT262090
8 - Single Row Cylindrical Ball Bearing 2 Part Number : AT252267
Remarks : (SUB FOR AH144150)
9 - Internal Oil Seal 2 Part Number : AR26706
Remarks : (SUB FOR AT252244)
10 - Mid Axle Drive Shaft Flange Cover 2 Part Number : AT252311 11 - O-Ring
Part Number : T107748
12 - Hexagonal Head Screw, M10 X 45
Part Number : 19M7572
Remarks : M10 X 45
13 - Hexagonal Head Screw, M10 X 30
Part Number : 19M7168
Remarks : M10 X 30 14 - 37 Degree Flare Fitting
Part
Part Number : R35352
15 - Universal Driveshaft 1
Part Number :
Remarks : ( AT255443 NLA)

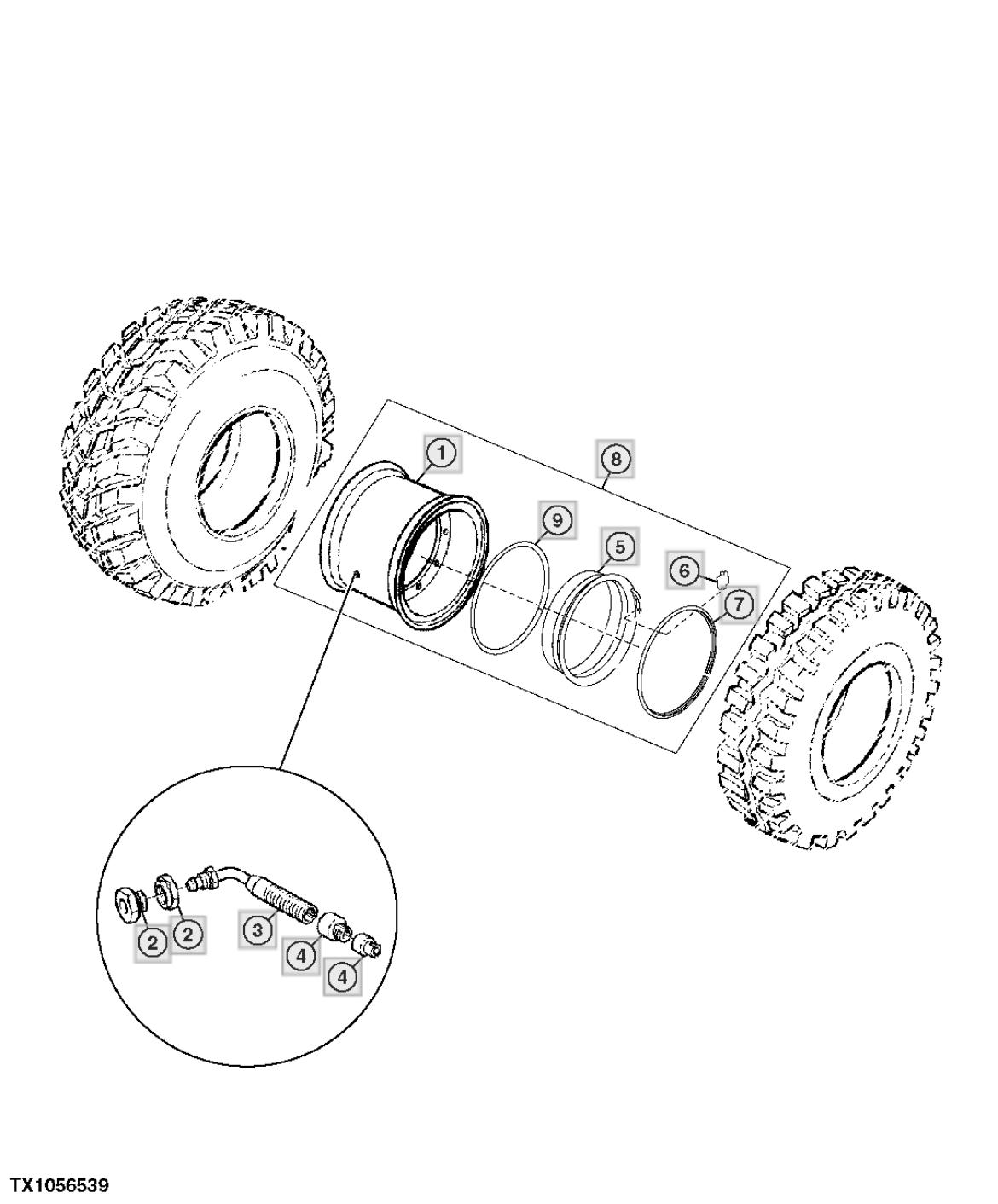

1 - Rim
Number : 2 - Tubeless Spud Nut 1
Number : AT252510
3 - Tire Valve Stem 1 Part Number : AT252509
Remarks : (SUB FOR AT329112)
4 - Valve Cap 1 Part Number : AT252527
5 - Band 1 Part Number : TT226122
6 - Key 1 Part Number : T168523
7 - Lock Wheel Ring
Number : TT226117
8 - Rim
Number : AT252489
9 - O-Ring Packing
Part Number : R29480
