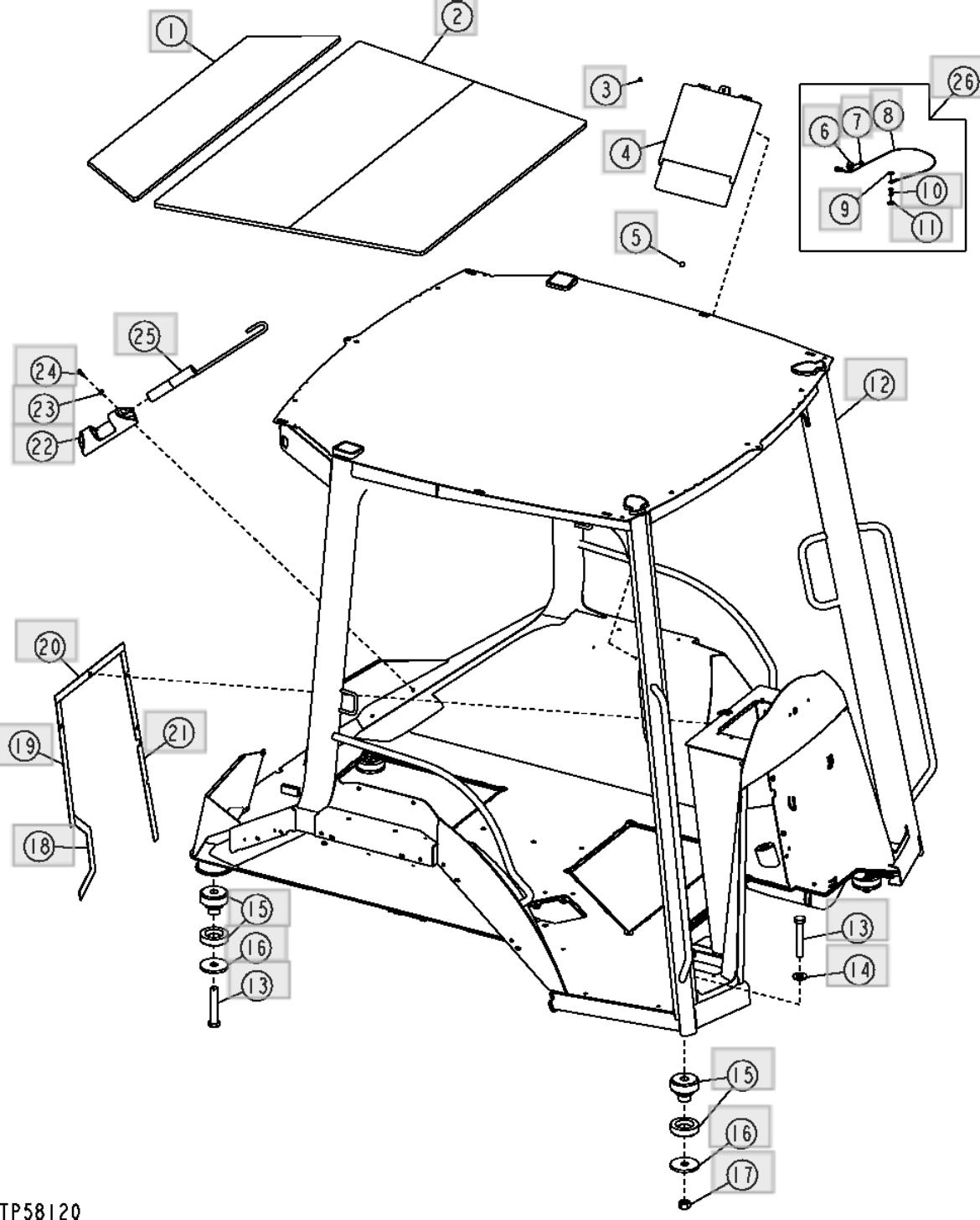

1 - ROPS Cab Service Frame 1
Part Number : AT377427
Supported Models : 310G, 310SG, 315SG
Remarks : (ALSO ORDER AT195550 AND (2) 19M7881 AND (2) 24M7238) (SUB FOR AT187096)
1 - ROPS Cab Service Frame 1
Part Number : AT377427
Supported Models : 310G, 310SG, 315SG
Remarks : Lever Control, (SUB FOR AT187096)
1 - Frame 1
Part Number : AT377429
Supported Models : 310G, 310SG, 315SG
Remarks : Pilot Control, (SUB FOR AT199734)
2 - Hexagonal Head Screw, M20 X 120 4
Part Number : 19M7883
Supported Models : 310G, 310SG, 315SG
Remarks : M20 X 120
3 - Round Hole Washer 2 Part Number : 24M7242
Supported Models : 310G, 310SG, 315SG
Remarks : 21.400 X 42 X 5 mm
4 - Vibration Isolator 4
Part Number : AT165288
Supported Models : 310G, 310SG, 315SG
5 - Round Hole Washer 4 Part Number : T101807
Supported Models : 310G, 310SG, 315SG
6 - Hexagonal Nut, M20 2 Part Number : 14M7277
Supported Models : 310G, 310SG, 315SG
Remarks : M20
7 - Headliner 1
Part Number :
Supported Models : 310G, 310SG, 315SG
Remarks : (W/O RADIO) (AT185498 NLA) (AT321004 NLA) (SUB AT335595) (ALSO ORDER AT326356 AND AT320544)
7 - Headliner 1
Part Number :
Supported Models : 310G, 310SG, 315SG
Remarks : (W/ RADIO) (AT185499 NLA) (AT321005 NLA) (SUB AT335596) (ALSO ORDER AT326356 AND AT320544)
7 - Headliner 1
Part Number : AT335595
Supported Models : 310G, 310SG, 315SG
Remarks : (W/O RADIO) (SUB FOR AT321004)
7 - Headliner 1 Part Number : AT335596
Supported Models : 310G, 310SG, 315SG
Remarks : (W/ RADIO) (SUB FOR AT321005)
8 - Raised Panel Nut, M6 2 Part Number : M84972
Supported Models : 310G, 310SG, 315SG
9 - Lamp 1
Part Number :
Supported Models : 310G, 310SG, 315SG
Remarks : (AT185500 NLA) (SUB AT320544 AND AT326356)
9 - Interior Light, 24 Volts, 10 Watts 1 Part Number : AT320544
Supported Models : 310G, 310SG, 315SG
Remarks : 12 V / 10 W
10 - Self-Locking Screw, M6 X 25 2 Part Number : T134895
Supported Models : 310G, 310SG, 315SG
11 - Plug 9 Part Number :
Supported Models : 310G, 310SG, 315SG
Remarks : Drill Hole To 10mm, (T184892 NLA) (SUB (9) MT2485)
11 - Fin-Type Push Plug 9 Part Number : MT2485
Supported Models : 310G, 310SG, 315SG
Remarks : Fastener
12 - Domelight Jumper Harness 1 Part Number : AT326356
Supported Models : 310G, 310SG, 315SG
13 - Light Bulb, 12 Volts, 10 Watts 1 Part Number : AT192414
Supported Models : 310G, 310SG, 315SG
1 - Headliner 1
Part Number : T186029
Supported Models : 310G, 310SG, 315SG
Remarks : Rear
2 - Headliner 1
Part Number : T186030
Supported Models : 310G, 310SG, 315SG
Remarks : Front
3 - Rivet 2
Part Number : R79033
Supported Models : 310G, 310SG, 315SG
4 - Operator Manual Holder 1
Part Number : AT195894
Supported Models : 310G, 310SG, 315SG
Remarks : (SUB FOR RE14246 APPL)
5 - Blind Rivet 1
Part Number : R55326
Supported Models : 310G, 310SG, 315SG
6 - Round Hole Washer 1
Part Number : 24M7100
Supported Models : 310G, 310SG, 315SG
Remarks : 6.600 X 22 X 2 mm
7 - Screw 1
Part Number :
Supported Models : 310G, 310SG, 315SG
8 - Cable 1
Part Number : AT164804
Supported Models : 310G, 310SG, 315SG
9 - Round Hole Washer 1
Part Number : 24M7139
Supported Models : 310G, 310SG, 315SG
Remarks : 6.400 X 18 X 1.600 mm
10 - Screw 1
Part Number : AT164803
Supported Models : 310G, 310SG, 315SG
11 - Round Hole Washer 1
Part Number : 24M7139
Supported Models : 310G, 310SG, 315SG
Remarks : 6.400 X 18 X 1.600 mm
12 - Frame 1
Part Number : AT377426
Supported Models : 310G, 310SG, 315SG
Remarks : (INCLUDES T166896) (ALSO ORDER AT195550 AND (2) 19M7881 AND (2) 24M7238) (SUB FOR AT188965)
12 - Frame 1
Part Number : AT377426
Supported Models : 310G, 310SG, 315SG
Remarks : (INCLUDES T166896) (SUB FOR AT188965)
12 - Frame 1
Part Number : AT377430
Supported Models : 310G, 310SG, 315SG
Remarks : Pilot Control, (INCLUDES T166896) (SUB FOR AT304887)
13 - Hexagonal Head Screw, M20 X 120 4
Part Number : 19M7883
Supported Models : 310G, 310SG, 315SG
Remarks : M20 X 120
14 - Round Hole Washer 2
Part Number : 24M7242
Supported Models : 310G, 310SG, 315SG
Remarks : 21.400 X 42 X 5 mm
15 - Vibration Isolator 4
Part Number : AT165288
Supported Models : 310G, 310SG, 315SG
16 - Round Hole Washer 4
Part Number : T101807
Part
Supported Models : 310G, 310SG, 315SG
17 - Hexagonal Nut, M20 2
Part Number : 14M7277
Supported Models : 310G, 310SG, 315SG
Remarks : M20
18 - Gasket 1
Part Number : T185785
Supported Models : 310G, 310SG, 315SG
19 - Gasket 1
Part Number : T185784
Supported Models : 310G, 310SG, 315SG
20 - Gasket 1
Part Number : T185782
Supported Models : 310G, 310SG, 315SG
21 - Gasket 1
Part Number : T185783
Supported Models : 310G, 310SG, 315SG
22 - Holder 1
Part Number : T141234
Supported Models : 310G, 310SG, 315SG
23 - Round Hole Washer 2 Part Number : 24M7238
Supported Models : 310G, 310SG, 315SG
Remarks : 8.700 X 17 X 2 mm
24 - Cylindrical Head Screw, M6 X 25 2
Part Number : 21M7310
Supported Models : 310G, 310SG, 315SG
Remarks : M6 X 25, (SUB FOR T134895 APPL)
25 - Swing Lock Assembly Pin Fastener 1
Part Number : AT150725
Supported Models : 310G, 310SG, 315SG
Remarks : Swing Pin
- Kit 1
Part Number : AT192032
Supported Models : 310G, 310SG, 315SG
Remarks : Operator Manual Tether Kit, (WHOLE GOODS)
