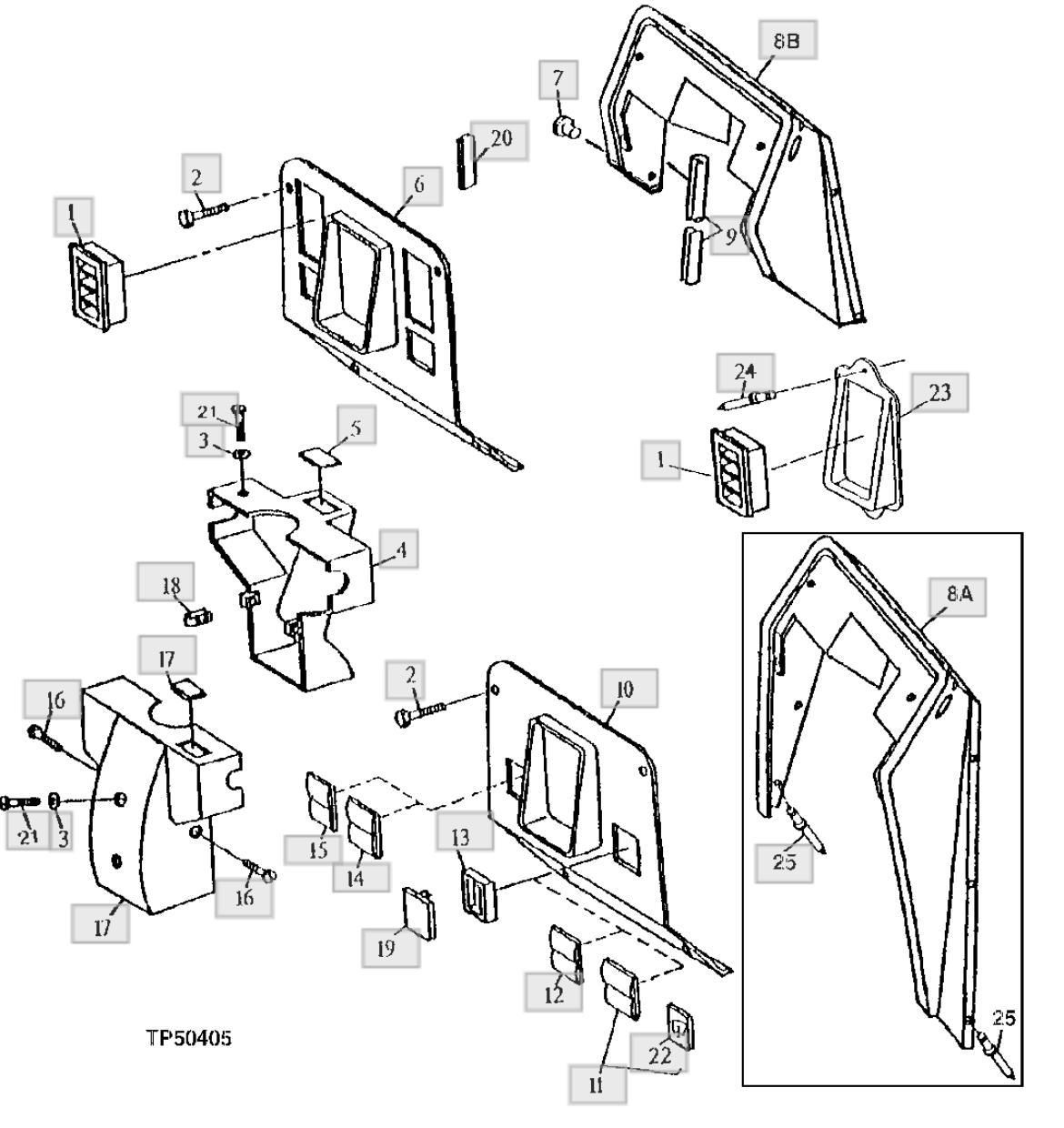

1 - Louver 2
Part Number : AT140978
Supported Models : 300D, 310D, 315D
Remarks : (WITH CAB)
2 - Cylindrical Head Screw, 0.190" X 3/4" 4
Part Number : 21H1406
Supported Models : 300D, 310D, 315D
Remarks : 0.190" X 3/4"
3 - Round Hole Washer 3 Part Number : 24M7087
Supported Models : 300D, 310D, 315D
Remarks : 5.500 X 10 X 1 mm
4 - Cover 1 Part Number : T132994
Supported Models : 300D, 310D, 315D
Remarks : FRONT
5 - Indicator Lamp 1 Part Number : AT140968
Supported Models : 300D, 310D, 315D
Remarks : (WITH TURN SIGNALS)
5 - Bulb 2 Part Number : 57M7102
Supported Models : 300D, 310D, 315D
Remarks : (TURN SIGNALS)
This part has been substituted.
5 - Cover 1
Part Number : Z45833
Supported Models : 300D, 310D, 315D
Remarks : (WITHOUT TURN SIGNALS)
This part has been substituted.
6 - Panel 1
Part Number : T132993
Part
Supported Models : 300D, 310D, 315D
Remarks : (WITH CAB)
6 - Panel 1
Part Number : T133010
Supported Models : 300D, 310D, 315D
Remarks : (WITH CAB)
7 - Plug 8
Part Number : T133009
Supported Models : 300D, 310D, 315D
7 - Plug 4
Part Number : T133009
Supported Models : 300D, 310D, 315D
8A - Housing 1
Part Number :
Supported Models : 300D, 310D, 315D
Remarks : AT167625 NO LONGER AVAILABLE, (SUB AT175938 ) (SUB FOR AT139722 AND AT160489 (WITH CAB))
8B - Housing 1
Part Number : AT175938
Supported Models : 300D, 310D, 315D
Remarks : (WITH CAB)
8A - Housing 1
Part Number :
Supported Models : 300D, 310D, 315D
Remarks : AT167783 NO LONGER AVAILABLE, (SUB AT175934 ) (SUB FOR AT139720 AND AT160488 (WITHOUT CAB))
8B - Housing 1
Part Number : AT175934
Supported Models : 300D, 310D, 315D
Remarks : (WITHOUT CAB)
9 - Isolator 1
Part
Part Number :
Supported Models : 300D, 310D, 315D
Remarks : (MAKE FROM T59938 BULK MATERIAL, CUT TO LENGTH)
10 - Panel 1
Part Number : T133010
Supported Models : 300D, 310D, 315D
Remarks : (WITHOUT CAB)
11 - Switch 1
Part Number : AT140962
Supported Models : 300D, 310D, 315D
Remarks : (FRONT WIPER)
12 - Switch 1
Part Number : AT140963
Supported Models : 300D, 310D, 315D
Remarks : (FRONT WASHER)
13 - Frame 1
Part Number : Z46941
Supported Models : 300D, 310D, 315D
14 - Warning Light Switch 1
Part Number : AT140966
Supported Models : 300D, 310D, 315D
Remarks : (WARNING FLASHER)
14 - Bulb 1
Part Number : 57M7102
Supported Models : 300D, 310D, 315D This part has been substituted.
15 - Front Light Switch 1
Part Number : AT149830
Supported Models : 300D, 310D, 315D
Remarks : (FRONT LIGHTS)
16 - Self-Tapping Pan Head Screw, 0.19" X 0.63" 2 Part Number : 37M7072
Supported Models : 300D, 310D, 315D
17 - Cover 1
Part Number : T133108
Supported Models : 300D, 310D, 315D
Remarks : REAR
17 - Switch 1
Part Number : AT150089
Supported Models : 300D, 310D, 315D
Remarks : NLA; (WITH TURN SIGNALS)
17 - Cover 1
Part Number : Z45833
Supported Models : 300D, 310D, 315D
Remarks : (WITHOUT TURN SIGNALS)
This part has been substituted.
18 - Spring Nut, 0.19" 2
Part Number : R50279
Supported Models : 300D, 310D, 315D
19 - Cover 1
Part Number : Z45833
Supported Models : 300D, 310D, 315D
This part has been substituted.
20 - Isolator 1
Part Number :
Supported Models : 300D, 310D, 315D
Remarks : MAKE FROM T71733 - CUT TO LENGTH
21 - Self-Tapping Pan Head Screw, 0.19" X 0.63" 3
Part Number : 37M7072
Supported Models : 300D, 310D, 315D
22 - Insert 1
Part Number : L39638
Supported Models : 300D, 310D, 315D
23 - Adapter Fitting 1 Part Number : T147894
Part
Supported Models : 300D, 310D, 315D
24 - Blind Rivet 2
Part Number : R55326
Supported Models : 300D, 310D, 315D
25 - Blind Rivet 2
Part Number : R55326
Supported Models : 300D, 310D, 315D

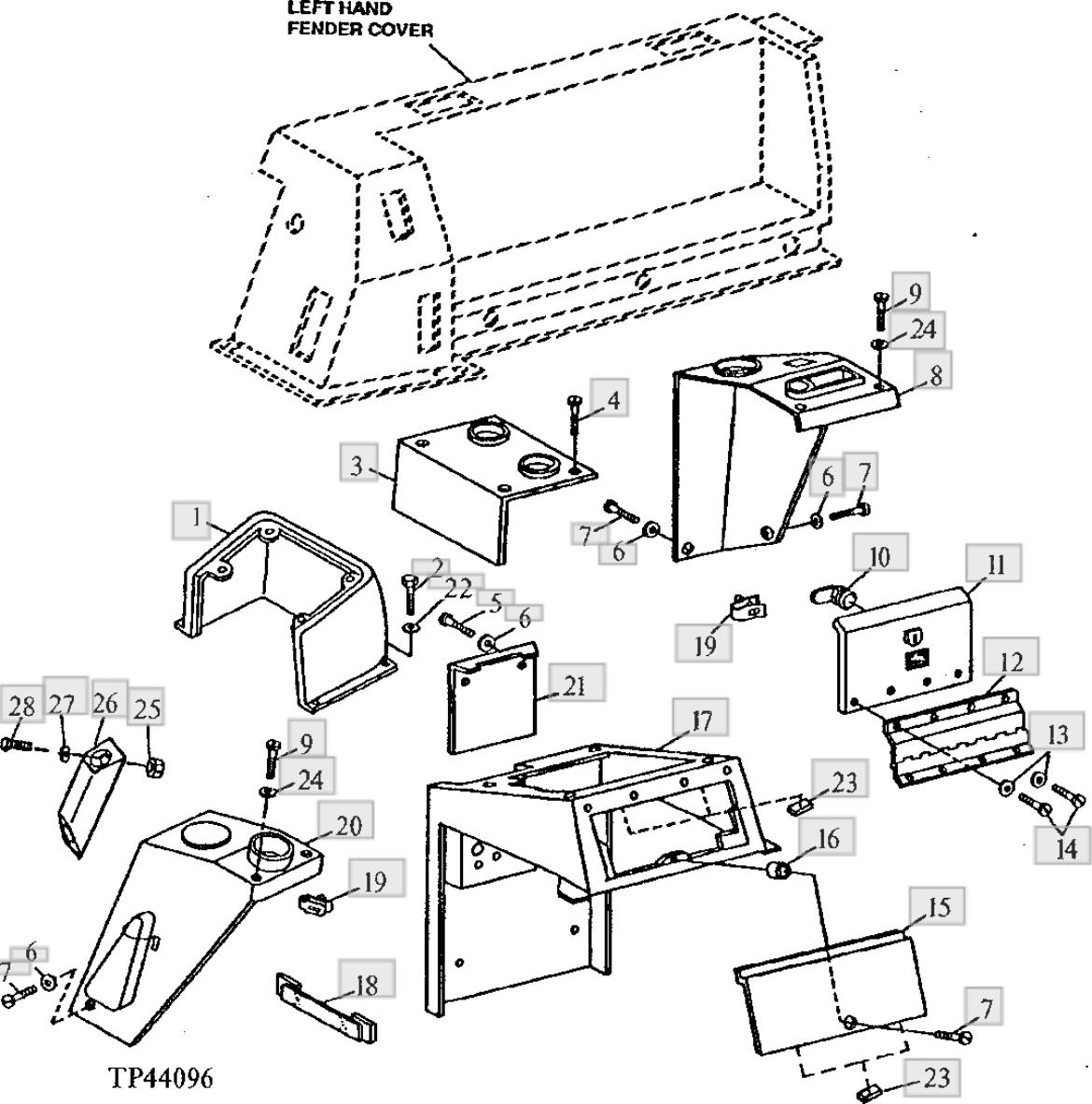

1 - Cover 1
Part Number : T133357
Supported Models : 300D, 310D, 315D
Remarks : (WITH TWO CONTROL LEVER REGULAR DIPPERSTICK)
1 - Cover 1
Part Number : T134876
Supported Models : 300D, 310D
Remarks : (WITH THREE CONTROL LEVER REGULAR DIPPERSTICK) CASE CONTROLS
1 - Cover 1
Part Number : T134850
Supported Models : 300D, 310D, 315D
Remarks : (WITH TWO CONTROL LEVER EXTENDIBLE DIPPERSTICK)
1 - Cover 1
Part Number : T134876
Supported Models : 300D, 310D
Remarks : (WITH THREE CONTROL LEVER EXTENDIBLE DIPPERSTICK) CASE CONTROLS
2 - Hexagonal Head Screw, M6 X 16 5
Part Number : 19M8425
Supported Models : 300D, 310D
Remarks : M6 X 16
3 - Panel 1
Part Number : T134383
Supported Models : 300D, 310D, 315D
Remarks : (WITH TWO CONTROL LEVERS)
4 - Cylindrical Head Screw, 4.826 X 19.05 mm (0.190" X 3/4") 4
Part Number : T151178
Supported Models : 300D, 310D, 315D
Remarks : 4.826 X 19.050 mm (0.190" X 3/4"), (SUB FOR 21H1406)
5 - Cylindrical Head Screw, M6 X 16 2
Part Number : T133674
Supported Models : 300D, 310D, 315D
6 - Round Hole Washer 3
Part Number : 24M7293
Supported Models : 300D, 310D, 315D
Remarks : 6.500 X 13 X 1.600 mm
7 - Self-Locking Screw, M6 X 25 4
Part Number : T134895
Supported Models : 300D, 310D, 315D
8 - Cover 1
Part Number : T132978
Supported Models : 300D, 310D, 315D
Remarks : LOADER LINKAGE
9 - Self-Locking Screw, M6 X 40 4
Part Number : T134874
Supported Models : 300D, 310D, 315D
10 - Lock and Compactor 1
Part Number : AT141724
Supported Models : 300D, 310D, 315D
11 - Cover 1
Part Number : T134594
Supported Models : 300D, 310D, 315D
Remarks : VANDAL PROTECTION
12 - Hinge 1
Part Number : AT181562
Supported Models : 300D, 310D, 315D
Remarks : VANDAL PROTECTION, (SUB FOR AT141319)
13 - Washer 8
Part Number : .......
Supported Models : 300D, 310D, 315D
14 - Self-Tapping Pan Head Screw, 0.165" X 0.63" 8
Part Number : H111706
Supported Models : 300D, 310D, 315D
15 - Fuse Access Panel 1
Part
Part Number : T133328
Supported Models : 300D, 310D, 315D
Remarks : FUSE ACCESS
16 - Bumper 1
Part Number : T134896
Supported Models : 300D, 310D, 315D
17 - Housing 1
Part Number : T141242
Supported Models : 300D, 310D, 315D
Remarks : (SUB FOR T134603)(WITHOUT CAB)
17 - Housing 1
Part Number : T141244
Supported Models : 300D, 310D
Remarks : (SUB FOR T132977)(WITH CAB)
17 - Housing 1
Part Number : T158639
Supported Models : 300D, 310D
Remarks : (WITH CAB)
17 - Housing 1
Part Number : T141244
Supported Models : 315D
Remarks : (WITH CAB)
17 - Housing 1 Part Number : T158639
Supported Models : 315D
Remarks : (WITH CAB)
18 - Strap 1
Part Number : AT145938
Supported Models : 300D, 310D, 315D
19 - Raised Panel Nut, M6 4
Part Number : M84972
Part
Supported Models : 300D, 310D, 315D
20 - Cover 1
Part Number : T148875
Supported Models : 300D, 310D, 315D
Remarks : STABILIZER LINKAGE (BOTTOM HOLE REMOVED NOV92 - NO LONGER REQUIRED), (SUB FOR T132979)
20 - Cover 1
Part Number : T148903
Supported Models : 300D, 310D, 315D
Remarks : STABILIZER LINKAGE (USE WITH EXTENDIBLE DIPPERSTICK), (SUB FOR T147015)
21 - Panel 1
Part Number : T133327
Supported Models : 300D, 310D, 315D
Remarks : SPEED CONTROL
22 - Washer 5
Part Number : 24H1287
Supported Models : 300D, 310D
Remarks : 9/32" X 5/8" X 0.065"
23 - Foam Pad 1
Part Number : .......
Supported Models : 300D, 310D, 315D
Remarks : (MAKE FROM T141322 BULK MATERIAL, CUT TO LENGTH)
24 - Washer 3
Part Number : 24H1646
Supported Models : 300D, 310D, 315D
Remarks : 17/64" X 3/4" X 0.060" This part has been substituted.
25 - Hexagonal Lock Nut, M6 2
Part Number : 14M7165
Supported Models : 300D, 310D, 315D
Remarks : M6
26 - Holder 1
Part Number : T141234
Part Quantity Required
Supported Models : 300D, 310D, 315D
27 - Washer 2
Part Number : 24H1287
Supported Models : 300D, 310D, 315D
Remarks : 9/32" X 5/8" X 0.065"
28 - Hexagonal Head Screw, M6 X 30 2
Part Number : 19M7874
Supported Models : 300D, 310D, 315D
Remarks : M6 X 30
