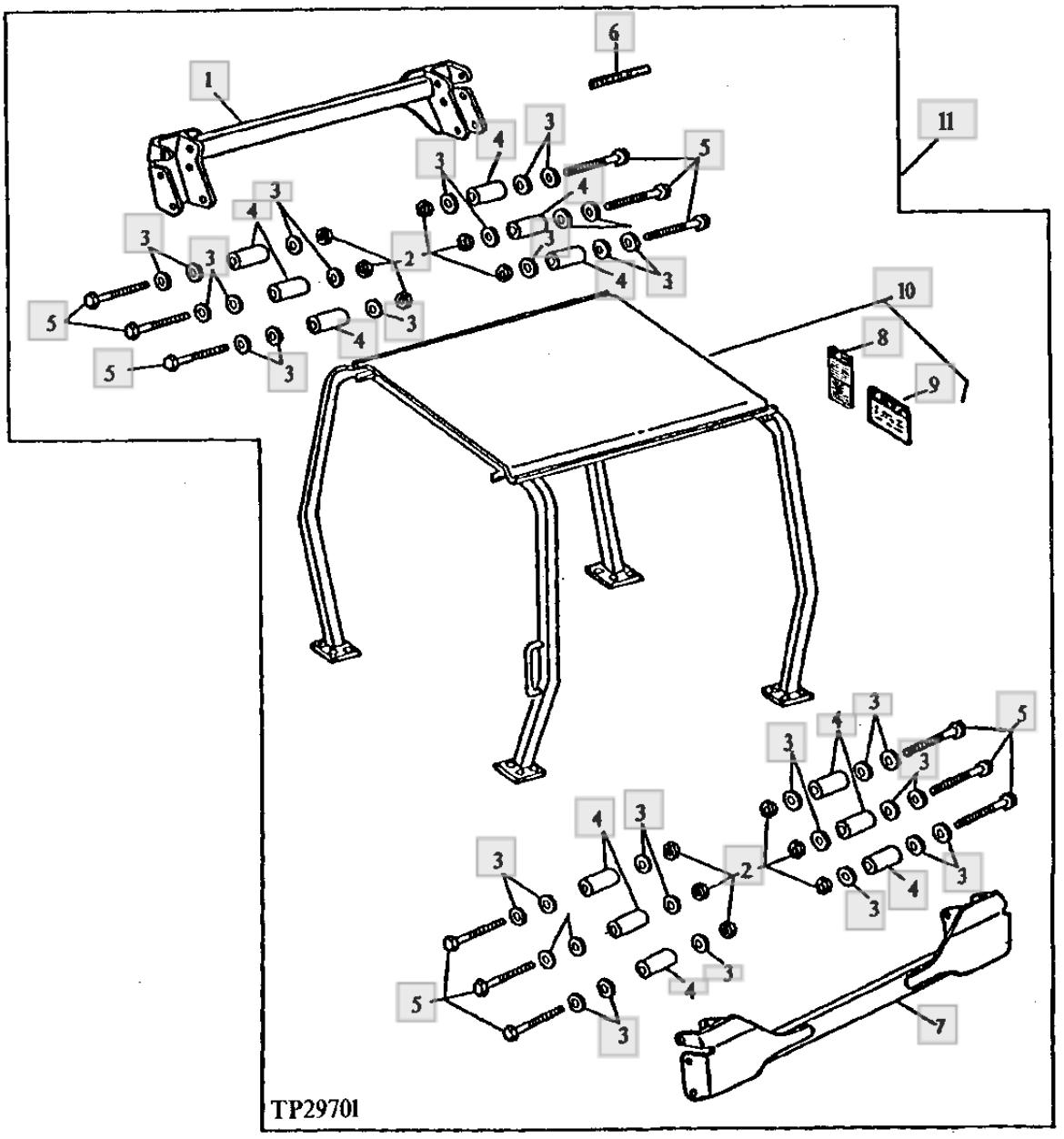

1 - SUPPORT
Part Number : AT143276
Part Number : BP12214
Remarks : 1/2" 3 - WASHER
Part Number : 24M7240
Remarks : 13 X 25 X 3 MM
4 - SPACER
Part Number : T129257
5 - CAP SCREW
Part Number : 19H3586
Remarks : HS, SAE 8, 1/2" X 4-1/4"
6 - SAFETY SIGN
Part Number : T146700
Remarks : (SUB FOR (2) T129379) (WARNING)
6 - SAFETY SIGN 1
Part Number : T130153
Remarks : (SPANISH)
6 - SAFETY SIGN 1
Part Number : T130154
Remarks : (FRENCH)
7 - SUPPORT 1
Part Number : AT143277
8 - LABEL 1
Part Number : T113109
Remarks : (ROPS INFORMATION)
9 - LABEL 1
Part Number : T146097
Remarks : (CAUTION, SEAT BELT) (SUB FOR T43705, THIS APPLICATION) (SUB FOR T146097)
10 - ROPS 1
Part Number :
Part Quantity Required
Remarks : (SUB AT143481 OR AT143482)
11 - ROPS 1
Part Number : AT143481
Remarks : (SUB FOR AT101191) (DOES NOT INCLUDE ROOF)
11 - ROPS 1
Part Number : AT143482
Remarks : (SUB FOR AT135635) (DOES NOT INCLUDE ROOF)
1 - CAP SCREW 20
Part Number : 19M6614
Remarks : M6 X 12
2 - WASHER 20
Part Number : 24M7100
Remarks : 6.600 X 22 X 2 MM
3 - ISOLATOR 2
Part Number : T82037
4 - ANGLE 1
Part Number : AT107932
Remarks : LEFT, (SUB FOR AT66764)
4 - ANGLE 1
Part Number : AT107931
Remarks : RIGHT, (SUB FOR AT66763)
5 - ISOLATOR 1
Part Number : AT68804
Remarks : LEFT
5 - ISOLATOR 1
Part Number : AT68803
Remarks : RIGHT
6 - ANGLE 2
Part Number : AT107933
Remarks : (SUB FOR AT66765)
7 - GASKET 1
Part Number : T100769
8 - SEALING TRIM 1
Part Number : ........
Remarks : (SUB AT77531)
9 - SEAL 1
Part Number : AT77531
10 - ISOLATOR 1
Part Number : T69912
11 - CAP SCREW 2
Part Number : 19M7560
Remarks : M6 X 16
11 - WASHER 2
Part Number : 24M7088
Remarks : 6.600 X 12 X 1.600 MM
12 - PLUG 2
Part Number : H91792
This part has been substituted.
13 - FRAME 1
Part Number : AT101192
Remarks : (SUB AT107854 AND AT118800)
13 - FRAME 1
Part Number : AT107854
Remarks : (ALSO ORDER (4) T118975, (4) 19M7798, (2) T118976, (4) T27671, (5) T119096 AND (8) 14M7298)
13 - FRAME 1 Part Number : AT107854
14 - REFLECTOR 2 Part Number : M80632
15 - GASKET 2 Part Number : M49815
16 - NUT 4 Part Number : M48244
17 - ANGLE 2 Part Number : T82844
18 - SCREW 2
Part Number : 19M7867
Remarks : M8 X 25
18 - WASHER 1
Part Number : 24H1136
Remarks : 11/32" X 11/16" X 0.065"
19 - WEATHERSTRIP 1
Part Number :
Remarks : (MAKE FROM AT56771 BULK MATERIAL, CUT TO LENGTH)
20 - SUPPORT 1
Part Number : AT73951
21 - STRAP 1
Part Number : R67195
22 - PLUG 1
Part Number : T154361
Remarks : (SUB FOR R56264)
23 - GROMMET 1
Part Number : T69192
24 - LABEL 1
Part Number : T146097
Remarks : CAUTION, SEAT BELT, (SUB FOR T43705, THIS APPLICATION) (SUB FOR T146097)
25 - LABEL 1
Part Number : T113109
Remarks : WARNING, ROPS
26 - ISOLATOR 1
Part Number :
Remarks : (MAKE FROM T61861 BULK MATERIAL, CUT TO LENGTH)
27 - ISOLATOR 1
Part Number :
Remarks : (MAKE FROM T61861 BULK MATERIAL, CUT TO LENGTH)
