1 - Hose Clamp
Part Number : T13254
2 - Strap
Part Number : T79830
3 - Blower Lower Half Housing 1 Part Number : R77619
Remarks : TOP HALF
4 - Baffle Insulator 1 Part Number : R69301
5 - Impeller
Part Number : R81111
6 - Blower Upper Half Housing 1
Part Number : R77618
Remarks : BOTTOM HALF
7 - Hexagonal Head Self-Tapping Screw, 0.216" X 3/4"
Part Number : 37H132
Remarks : 0.216" X 3/4"
8 - Plain Bushing
Part Number : T73771
9 - Brush Kit 1 Part Number : AT76672
Remarks : BRUSH KIT
10 - Filter 1 Part Number : R65150
11 - Single Band Hose Clamp
Part Number : R56101
12 - Cab Blower Electric Motor 1 Part Number : AT74427

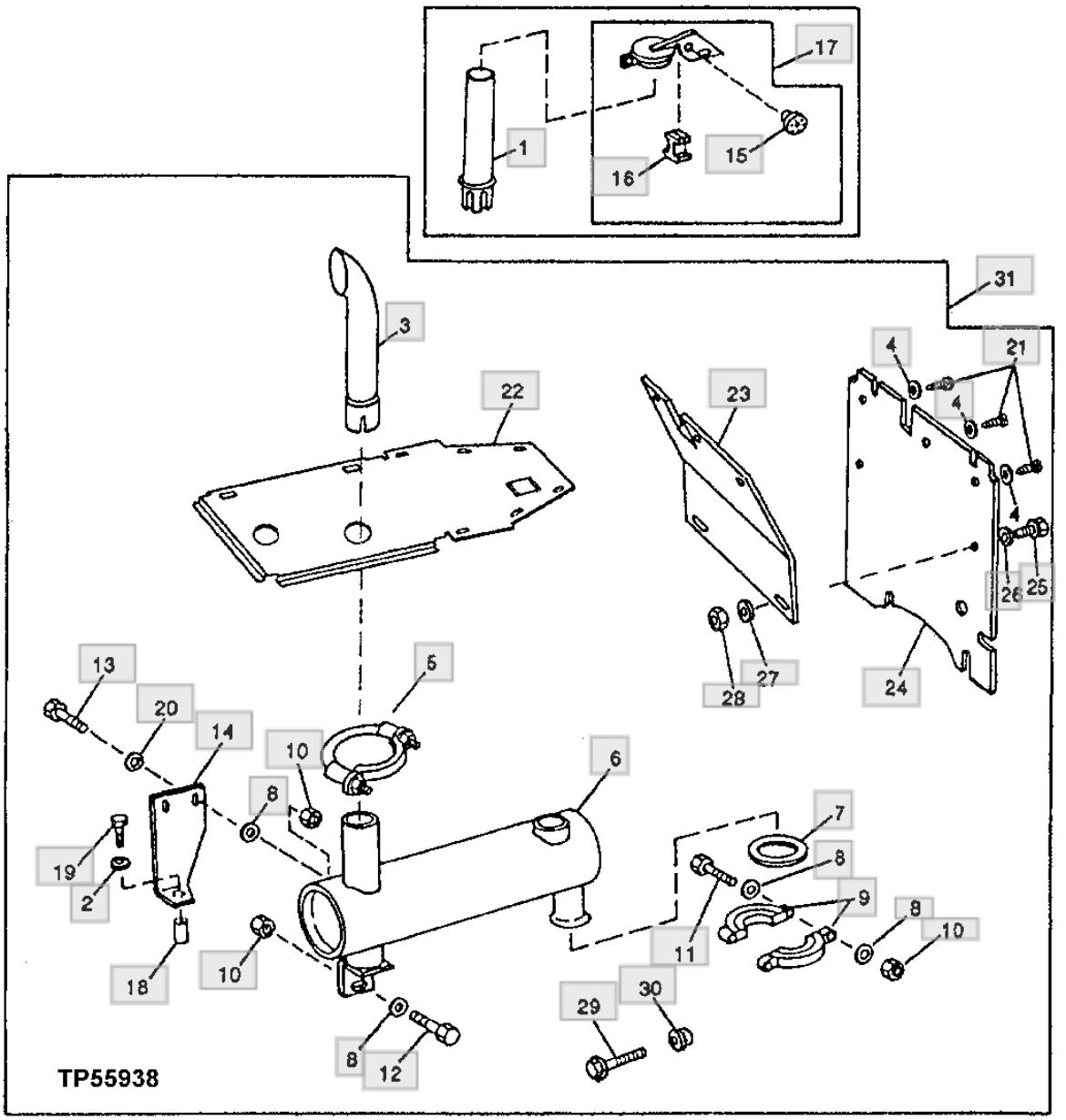

1 - Exhaust Pipe 1
Part Number : T68097
Remarks : (SUB T139827) This part has been substituted.
2 - Round Hole Washer 1 Part Number : 24H1122
Remarks : 3/8" X 7/8" X 0.083"
3 - Exhaust Pipe 1
Part Number : T139827
Remarks : (SUB FOR T118750, THIS APPLICATION)BLACK
3 - Extension 1
Part Number : T142955
Remarks : CHROME
4 - Washer 1
Part Number : 24H1287
Remarks : 9/32" X 5/8" X 0.065"
5 - Strap Muffler and Cable Clamp 1
Part Number : AT167754
Remarks : (SUB FOR AT74173 AND AT167360)
6 - Muffler 1
Part Number : AT83613
7 - Muffler Gasket 1
Part Number : R98844
Remarks : (SUB FOR T20141)
8 - Round Hole Washer 7
Part Number : 24H1305
Remarks : 13/32" X 13/16" X 0.065"
9 - V-Groove Half Muffler Clamp 2
Part Number : AT72624
10 - Hexagonal Lock Nut, 9.525 mm (3/8") 5 Part Number : U13184
11 - Hexagonal Head Cap Screw, 3/8" X 3" 2
Part Number : 19H2458
Remarks : 3/8" X 3"
12 - Hexagonal Head Screw, 3/8" X 1-1/2" 1
Part Number : 19H2633
Remarks : 3/8" X 1-1/2"
13 - Hexagonal Head Screw, 3/8" X 1 1/4", 3/8" X 1-1/4" 2
Part Number : 19H3239
Remarks : 3/8" X 1-1/4" 14 - Angle 1
Part Number : T155602
Remarks : (SUB FOR T142647 AND T81886)
15 - Bearing 2
Number : ....... 16 - Clip 1
Number : .......
17 - Exhaust Cap 1
Part Number : AT77375
Remarks : (USE WITH T68097) This part has been substituted.
18 - Class D Bushing 1
Part Number : 28H2552
Remarks : 0.546" X 0.840" X 1-1/8"
19 - Hexagonal Head Screw, 1/2" X 2-1/4" 1
Part Number : 19H1805
Remarks : 1/2" X 2-1/4"
20 - Round Hole Washer 2 Part Number : 24M7296
Remarks : 10.500 X 30 X 2.500 mm
21 - Hexagonal Flange Head Self-Tapping Screw, 1/4" X 1/2" 3
Part Number : 37H116
Remarks : 1/4" X 1/2"
22 - Hood 1
Part Number : AT106665
23 - Support 1
Part Number : T106436
Remarks : (BARRIER)
24 - Barrier 1
Part Number : T106378
Remarks : (NOISE)
25 - Hexagonal Head Screw, M10 X 75 2
Part Number : 19M7329
Remarks : M10 X 75, HEX FLANGE
26 - Round Hole Washer 2
Part Number : 24H1335
Remarks : 15/32" X 2-1/2" X 0.105"
27 - Round Hole Washer 1
Part Number : 24M7239
Remarks : 10.700 X 21 X 2.500 mm
28 - Hexagonal Nut, M10 2
Part Number : 14M7274
Remarks : M10
28 - Hexagonal Nut, M10 2 Part Number : 14M7274
Remarks : M10
29 - Hexagonal Head Flanged Screw, M8 X 20 1
Part Number : 19M7866
Remarks : M8 X 20, HEX FLANGE
30 - Hexagonal Flange Nut, M8 1 Part Number : 14M7298
Remarks : M8, HEX FLANGE
31 - Package Of Parts 1
Part Number :
Remarks : (AT101927 NO LONGER AVAILABLE)
