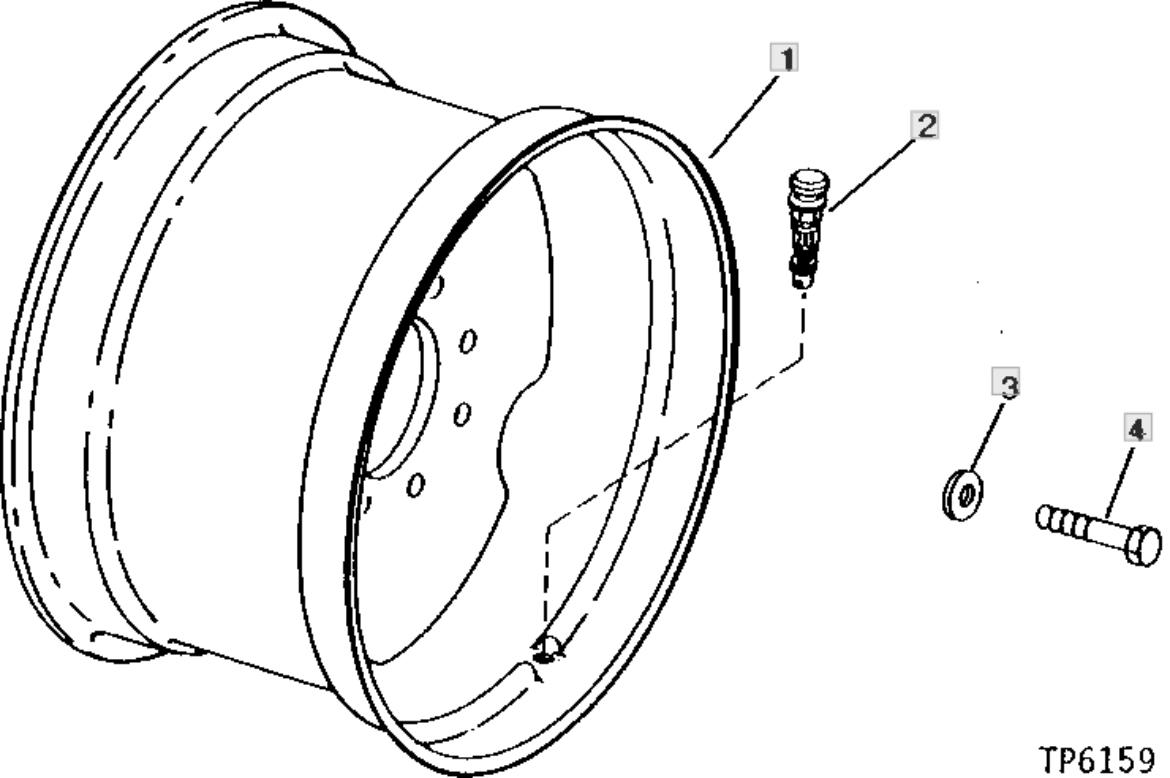

1 - WHEEL 1
Part Number : AT320204
Supported Models : 310B
Remarks : 496 MM X 610 MM (19.5" X 24") TIRE, (SUB FOR AT66805, AT300165 AND AT309110)
1 - WHEEL 1
Part Number : AT66802
Supported Models : 310B
Remarks : 429 MM X 610 MM AND 467 MM X 610 MM (16.9" X 24" AND 18.4" X 24") TIRE
2 - TIRE VALVE STEM 1
Part Number : AT25226
Supported Models : 310B
3 - SPACER 8
Part Number : U43180
Supported Models : 310B
3 - WASHER 8
Part Number : R54124
Supported Models : 310A, 310B
Remarks : (SUB FOR T33089, THIS APPLICATION)
4 - CAP SCREW 8
Part Number : 19H2431
Supported Models : 310B
Remarks : 3/4" X 2-1/4"
4 - CAP SCREW 8
Part Number : 19H2717
Supported Models : 310A, 310B
Remarks : 3/4" X 1-3/4"

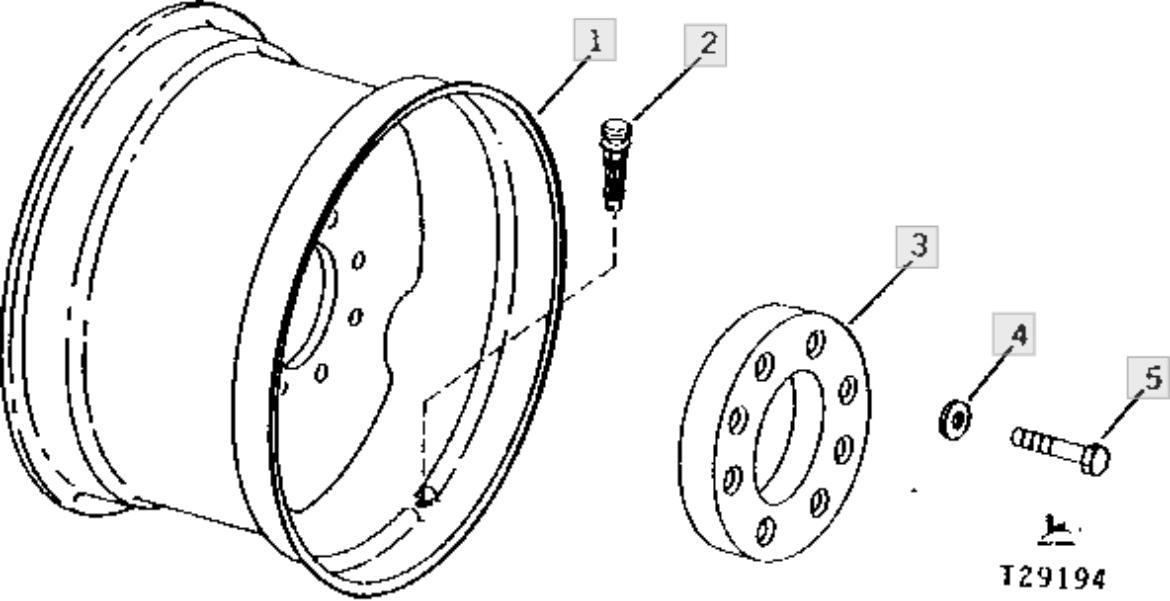

1 - WHEEL 1
Part Number : AT38624
Supported Models : 310A
Remarks : 496 MM X 610 MM (19.5 X 24") TIRE
1 - WHEEL 1
Part Number : AT57184
Supported Models : 310A
Remarks : 496 MM X 610 MM (19.5" X 24") TIRE (DO NOT USE WITH REVERSIBLE STABILIZER FEET)
This part has been substituted.
1 - WHEEL 1
Part Number : AT320204
Supported Models : 310A
Remarks : 496 MM X 610 MM (19.5" X 24") TIRE, (SUB FOR AT66805, AT300165 AND AT309110)
1 - WHEEL CENTER 1
Part Number : AT38626
Supported Models : 310A
Remarks : 429 MM X 610 MM AND 467 MM X 610 MM (16.9" X 24" AND 18.4" X 24") TIRE
1 - WHEEL 1
Part Number : AT57181
Supported Models : 310A
Remarks : 429 MM X 610 MM AND 467 MM X 610 MM (16.9" X 24" AND 18.4" X 24") TIRE
This part has been substituted.
1 - WHEEL 1
Part Number : AT66802
Supported Models : 310A
Remarks : 429 MM X 610 MM AND 467 MM X 610 MM (16.9 X 24" AND 18.4 X 24") TIRE
1 - WHEEL 1
Part Number : AT45768
Supported Models : 310A
Remarks : 533 MM X 610 MM (21 X 24") TIRE
1 - WHEEL 1
Part Number : AT57186
Supported Models : 310A
Remarks : 533 MM X 610 MM (21 X 24") TIRE
2 - TIRE VALVE STEM 1
Part Number : AT25226
Supported Models : 310A
3 - RIM 1 Part Number : T39877
Supported Models : 310A
4 - WASHER 8
Part Number : T18407
Supported Models : 310A
4 - SPACER 8
Part Number : U43180
Supported Models : 310A
5 - CAP SCREW 8
Part Number : 19H3349
Supported Models : 310A
Remarks : HS, SAE 8, 9/16" X 3-3/4"
5 - CAP SCREW 8 Part Number : 19H2431
Supported Models : 310A
Remarks : HS, SAE 8, 3/4" X 2-1/4"
