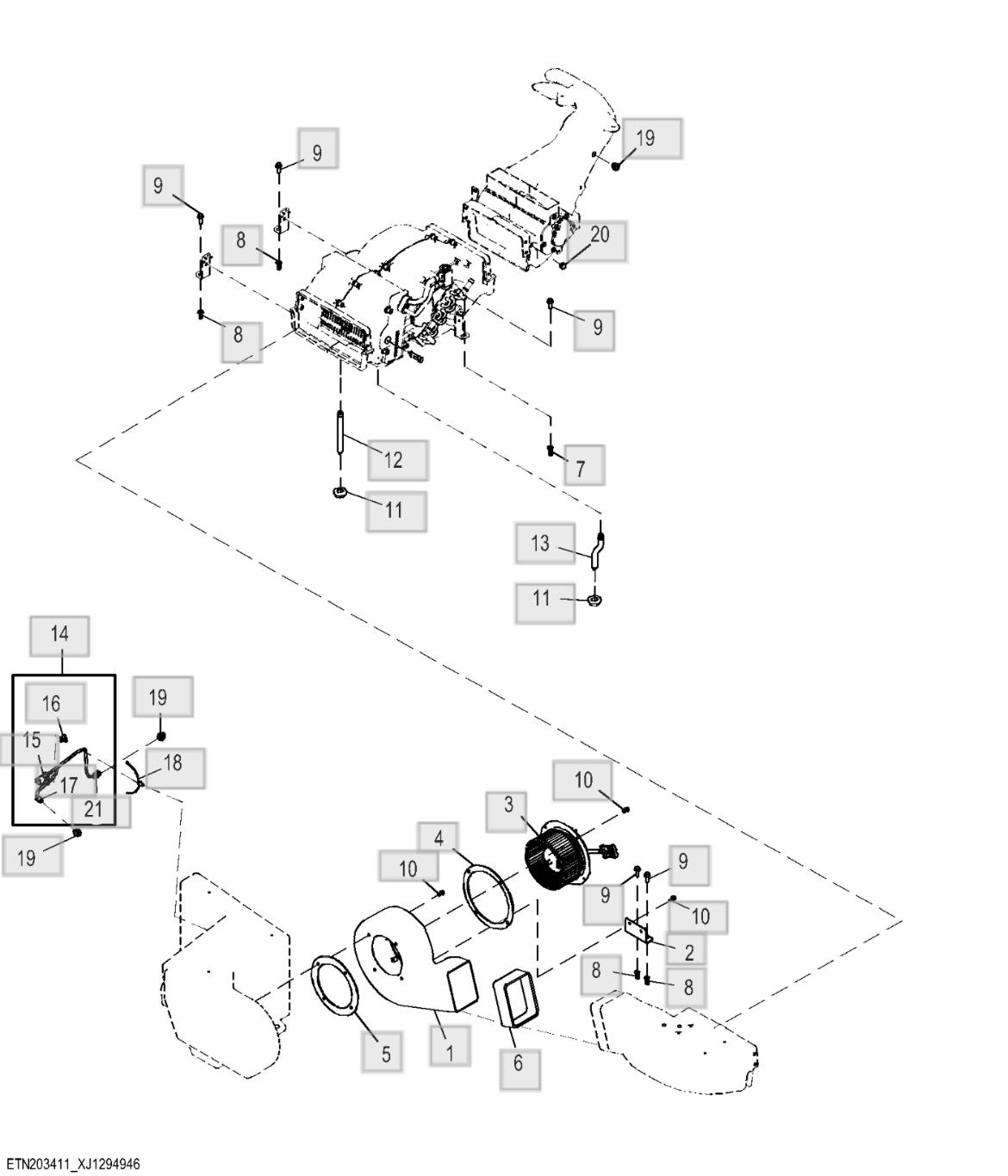

14 - Wiring Harness
Part Number : AT455568
15 - Black External Electrical Connector Housing, 4 Cavities
Part Number : 57M8017
Remarks : To Cab Harness, X14B
15 - Pin Contact Electrical Connector Terminal 3 Part Number : R78066
15 - Electric Connector Cavity Plug 1 Part Number : R78069
15 - Elec.Connect Locking Device 1 Part Number : 57M7619
16 - Electrical Connector Accessory
Part Number : 57M9940
17 - Medium Gray External Electrical Connector Housing, 2 Cavities
Part Number : 57M7813
Remarks : Ambient Temperature Sensor, B28
17 - Electrical Connector Terminal
Part Number : 57M7496 18 - Snap-In Clamp
Number : T209627 19 - Grommet
Part Number : T388350 20 - Plug
Part Number : T82464
21 - Medium Gray External Electrical Connector Housing, 2 Cavities
Part Number : 57M7813
Remarks : Blower Inlet Temperature Sensor, B29
21 - Electrical Connector Terminal
Number : 57M7496

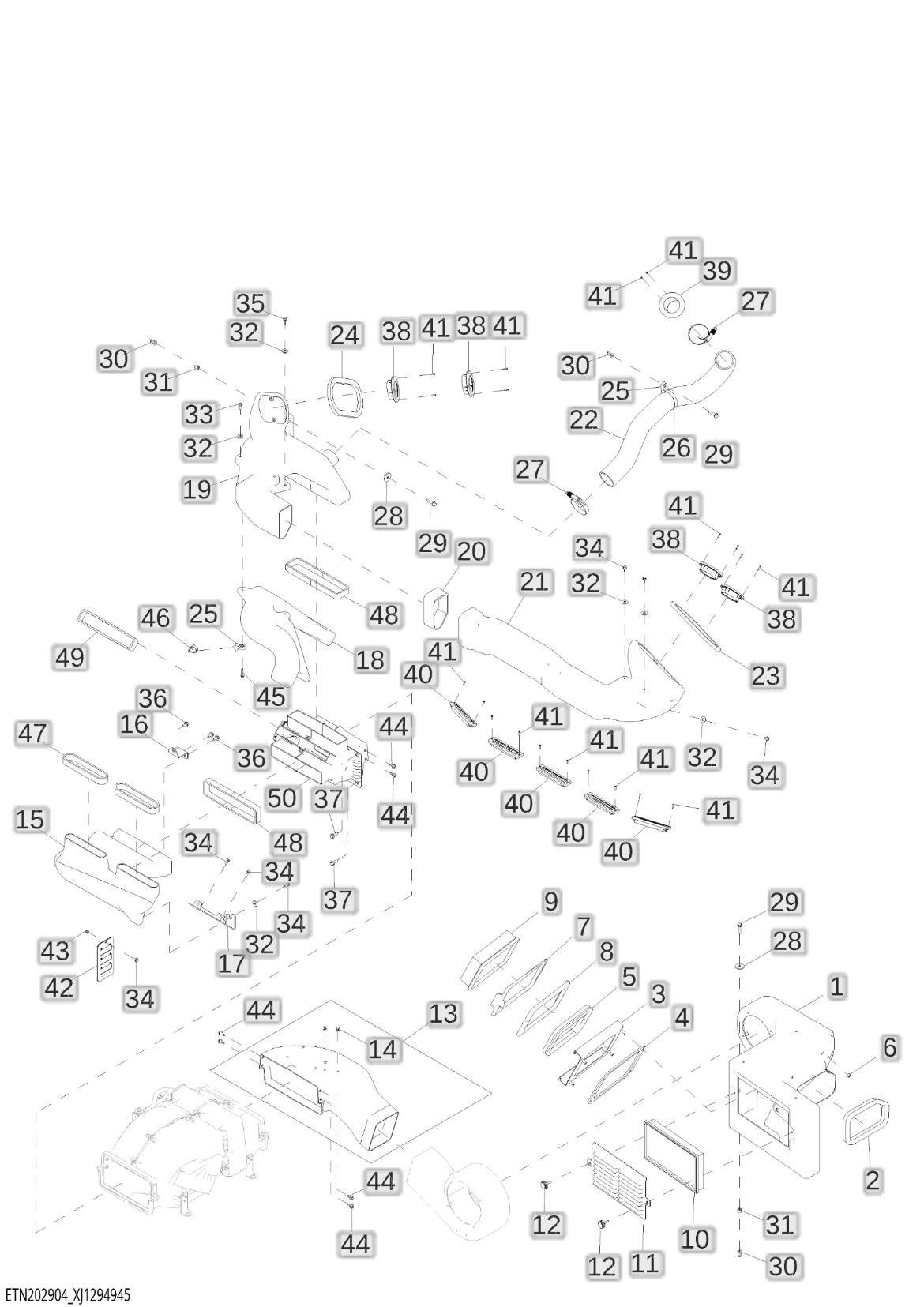

1 - Filter Housing
Part Number : T331058
2 - Isolator 1 Part Number : T345848
3 - Bracket 1 Part Number : AT518790
4 - Gasket 1 Part Number : T342364
5 - Isolator 1 Part Number : Remarks : MAKE FROM T68144 , CTL 2.2 Ft.
6 - Hexagonal Flange Nut, M8
Part Number : 14M7298
Remarks : M8
7 - HVAC Ducting Frame
Part Number : T246927
8 - Retainer
Part Number : T246926
9 - Cab Air Filter
Part Number : AT191102 Remarks : Fresh Air Filter
10 - Cab Recirculation Air Filter 1 Part Number : AT307501
Remarks : Recirculating Air Filter
11 - Louver 1 Part Number : T307739 Remarks : Recirculation Fresh Air Filter
12 - Knob 2 Part Number : AT325667
13 - Air Duct
Part Number : AT439431
Part Number : 24H1296
Remarks : 11/32" X 1-3/8" X 0.134"
29 - Hexagonal Head Flanged Screw, M8 X 35 3
Part Number : 19M7897
Remarks : M8 X 35
30 - Nut 3
Part Number : T301124
31 - Plain Spacer 2
Part Number : 28H3450
Remarks : 0.364" X 0.540" X 1/2"
32 - Round Hole Washer 7
Part Number : 24M7298
Remarks : 8.400 X 25 X 2 mm
33 - Hexagonal Head Flanged Screw, M6 X 20 2
Part Number : 19M7862
Remarks : M6 X 20
34 - Hexagonal Head Screw, M6 X 16 7
Part Number : 19M7775
Remarks : M6 X 16
35 - Hexagonal Head Flanged Screw, M6 X 25 1
Part Number : 19M7863
Remarks : M6 X 25
36 - Hexagonal Head Flanged Screw, M8 X 16 3
Part Number : 19M7865
Remarks : M8 X 16
37 - Hexagonal Head Flanged Screw, M8 X 25 2
Part Number : 19M7867
Remarks : M8 X 25
38 - Round Louver 4
Part Number : AT227669
39 - Louver 1
Part Number : AT435038
40 - Header Air Duct Nozzle 5
Part Number : AZ43305
41 - Countersunk Head Self-Tapping Screw, M3.5 X 16 20
Part Number : 37M7333
42 - Louver 1 Part Number : AT448929
43 - Hexagonal Lock Nut, M6 1 Part Number : 14M7397
Remarks : M6
44 - Hexagonal Head Flanged Screw, M6 X 20 8 Part Number : M163625
45 - Hexagonal Head Flanged Screw, M6 X 30 1
Part Number : 19M7796
Remarks : M6 X 30
46 - Heavy-Duty Tie-Band 1
Part Number : H224073
47 - Isolator 2 Part Number : Remarks : MAKE FROM T59937, CTL 1.55 ft
48 - Isolator 2 Part Number : Remarks : MAKE FROM T59937, CTL 2.3 ft
49 - Isolator 1 Part Number : .......
Remarks : MAKE FROM T59937, CTL 2.15 ft
50 - Air Duct 1
Part Number : AT527684
Remarks : Duct With Mode Door, Injection Mold
51 - Actuator 1
Part Number : AT436105
Remarks : Actuator Not Illustrated, USE WITH AT527684
52 - Air Conditioner Compartment Door 1
Part Quantity Required
Part Number : AT431152
Remarks : Mode Door, Roto Mold Not Illustrated
53 - Air Conditioner Compartment Door 1
Part Number : AT435587
Remarks : Actuator Not Illustrated, USE WITH AT431152
54 - Bracket 1
Part Number : AT438154
Remarks : Not Illustrated, USE WITH AT431152
55 - Heater Ducting Actuator 1
Part Number : AT502344
Remarks : 12 V Not Illustrated, USE WITH AT431152
56 - Air Duct 1
Part Number : T335770
Remarks : Not Illustrated, USE WITH AT431152
57 - Seal 1
Part Number : T341270
Remarks : Not Illustrated, USE WITH AT431152
58 - Isolator 1
Part Number : T346014
Remarks : Not Illustrated, USE WITH AT431152
