Part Number : 19M7863
Remarks : M6 X 25
14 - Hexagonal Rivet Nut, M8 5 Part Number : T196080
15 - Plate 1
Part Number : AT454588
16 - Nut 7
Part Number : T301124
17 - Bracket 1
Part Number : AT438924
Remarks : RH
18 - Raised Panel Nut, M6 3
Part Number : M84972
19 - Bracket 1
Part Number : T345970
20 - Bracket 1
Part Number : AT455503
Remarks : LH
21 - Hexagonal Rivet Nut, M6 2
Part Number : T196078
22 - Bracket 1
Part Number : AT454551
Remarks : LH
23 - Hexagonal Head Flanged Screw, M8 X 35 11
Part Number : 19M7897
Remarks : M8 X 35
24 - Hexagonal Head Flanged Screw, M8 X 20 4
Part Number : 19M7866
Remarks : M8 X 20
25 - Right Side Handle 1
Part Number : AT446332

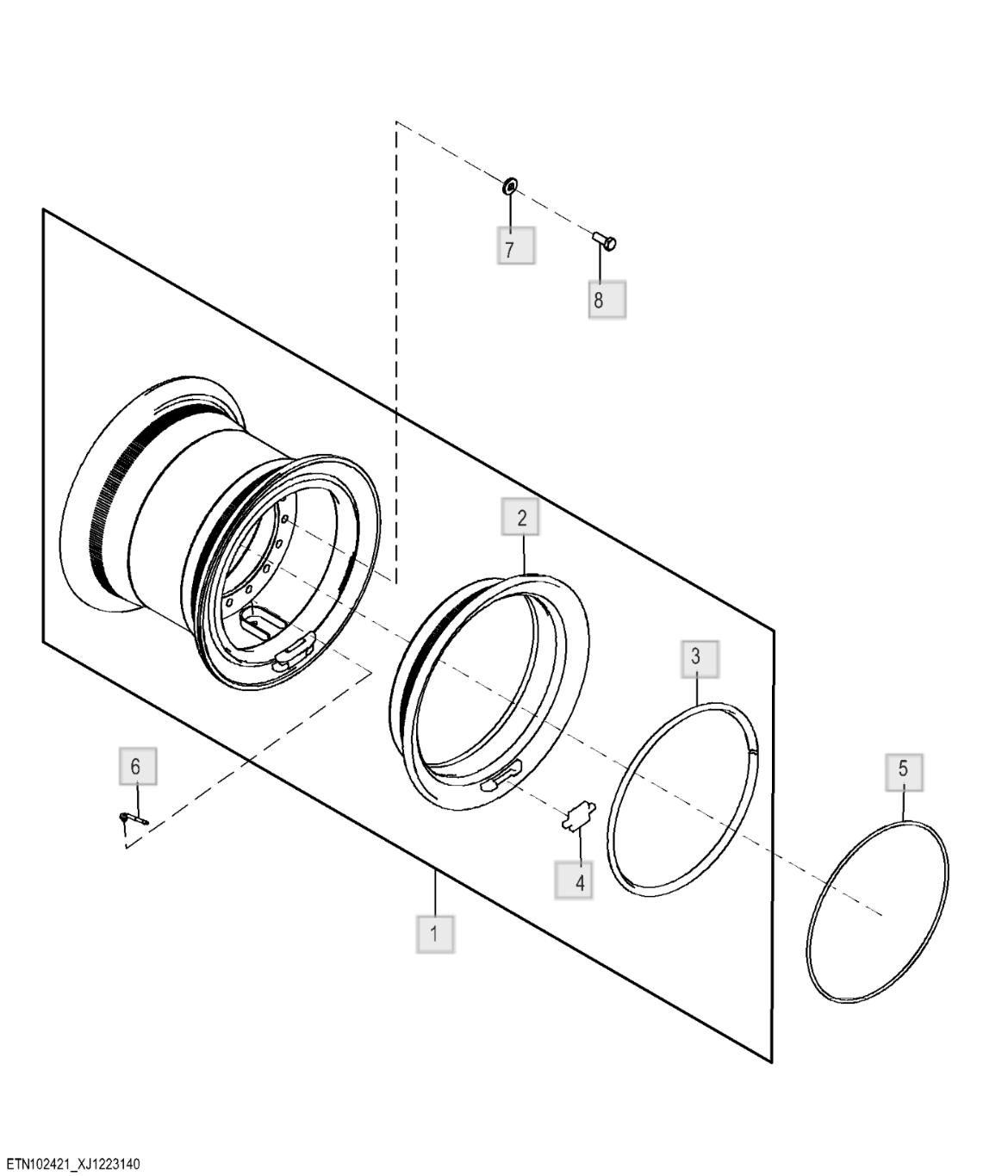

1 - Wheel
Part Number : AT467532 2 - Rim Flange 1 Part Number : AT441417 3 - Wheel Ring 1 Part Number : T347354 4 - Tire and Rim Assembly Driver 1 Part Number : T347356
5 - O-Ring Packing 6 Part Number : R29480 6 - Tire Valve Stem 6 Part Number : AT252509
7 - Round Hole Washer
Part Number : A11667
Remarks : 16 Per Wheel
8 - Hexagonal Head Screw, M22 X 55
Part Number : 19M9379
Remarks : M22 X 55, 16 Per Wheel
1 - Three Piece Rim, 22 X 25
Part Number : AT467534
2 - Flange 1
Part Number : AT440578
3 - Wheel Ring 1
Part Number : T347354
4 - Tire and Rim Assembly Driver 1
Part Number : T347356
5 - O-Ring Packing 6 Part Number : R29480
6 - Tire Valve Stem 6
Part Number : AT252509
7 - Round Hole Washer
Part Number : A11667
Remarks : 16 Per Wheel
8 - Hexagonal Head Screw, M22 X 55
Part Number : 19M9379
Remarks : M22 X 55, 16 Per Wheel
1 - Wheel
Part Number : AT467532 2 - Rim Flange 1 Part Number : AT441417 3 - Wheel Ring 1 Part Number : T347354 4 - Tire and Rim Assembly Driver 1 Part Number : T347356
5 - O-Ring Packing 6 Part Number : R29480 6 - Tire Valve Stem 6 Part Number : AT252509
7 - Round Hole Washer
Part Number : A11667
Remarks : 16 Per Wheel
8 - Hexagonal Head Screw, M22 X 55
Part Number : 19M9379
Remarks : M22 X 55, 16 Per Wheel
